Sự miêu tả
Huawei NE9000-20 Router is large-capacity, độ tin cậy cao, energy-efficient routers designed to meet interconnection requirements in the cloud era. NetEngine 9000 router serve as core nodes on large Data Center Interconnect (DCI) mạng lưới, large enterprise networks, and metro networks, and as super-core nodes on carriers’ backbone networks
Huawei NE9000-20 Router Product Overview
Huawei NE9000-20 Router is equipped with Huawei’s proprietary Solar chipsets and are the industry’s largest petabit-capacity routers. Huawei NE9000 – 20 Router features non-blocking switching technologies based on the CLOS distributed switching architecture, which deliver excellent line-speed forwarding performance.
Huawei NE9000-20 Router can be used in a wide range of Software-Defined Networking (SDN) các ứng dụng, such as real-time traffic optimization, IP + optical synergy, and DCI E2E service provisioning. With a continuously improving industry-leading platform, a well-designed Quality of Service (QoS) cơ chế, and carrier-class reliability.

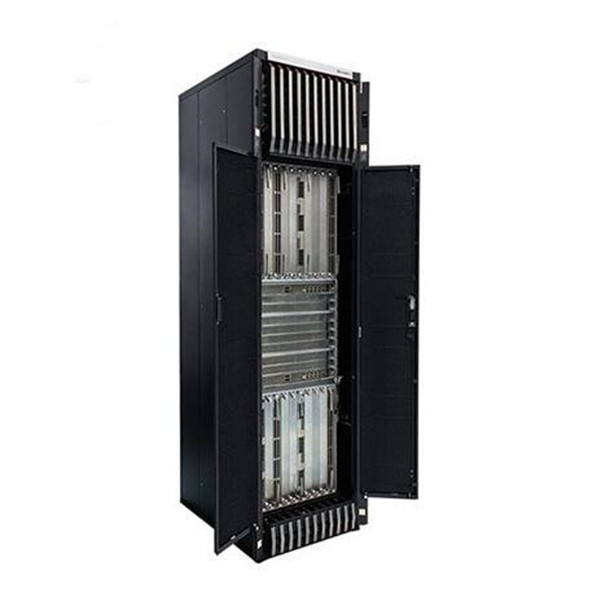

Huawei NE9000-20 Router Product Pictures
Huawei NE9000-20 Router Product Specifications
| Mục | NE9000-20 | NE9000-8 |
| Hiệu suất chuyển tiếp | 12800 Mp(LPUI-1T) | 5120 Mp(LPUI-1T) |
| chuyển đổi công suất | 209.45 Tbps | 83.78 Tbps |
| Kích thước (Cao x Rộng x D) | 2200 mm (49.5 bạn) x 600 mm x 1000 mm (86.61 TRONG. x 23.62 TRONG. x 39.4 TRONG.) | 1016 mm x 442 mm x 945 mm (40 TRONG. x 17.4 TRONG. x 37.2 TRONG.) |
| Cân nặng (trống) | 231 Kilôgam (509.3 lb) | 159 Kilôgam (350.5 lb) |
| Cân nặng (integrated chassis (cabinet + Nguồn cấp + cái quạt)) | 410 Kilôgam (903.9 lb) | 181 Kilôgam (339.0 lb) |
| Cabinet installation standard | The NE9000 chassis is integrated in a cabinet. | Can be installed in an 1000 mm-deep standard 19-inch cabinet and is installed in a 2200 mm-high Huawei N610E cabinet by default. |
| Tiêu thụ điện năng điển hình | l 19600 W (2 MPU + 7 SFU + 20 8x100G CFP2) | 7.97kW (2 MPU + 8 SFU + 8 20x100G QSFP28) |
| l 18526 W (2 MPU + 8 SFU + 20 20x100G QSFP28) | ||
| Tản nhiệt điển hình | l 63590.6 BTU/giờ (2 MPU + 7 SFU + 20 8x100G CFP2) | 25858.0BTU (2 MPU + 8 SFU + 8 20x100G QSFP28) |
| l 60106.1BTU/hour (2 MPU + 8 SFU + 20 20x100G QSFP28) | ||
| DC input voltage | l -40 V đến -72 V. (-48 V/-60 V) | l -40 V đến -72 V. (-48 V/-60 V) |
| l 192 V đến 400 V. (240 V/380 V) | l 192 V đến 400 V. (240 V/380 V) | |
| Điện áp đầu vào AC | 180 V đến 264 V. (200 V đến 240 V.) | 180 V đến 264 V. (200 V đến 240 V.) |
| MTBF | 18.74 năm | 18.87 năm |
| MTTR | 0.5 giờ | 0.5 giờ |
| khả dụng | 100.00% | 100.00% |
| Slot quantity | 32 khe cắm, bao gồm 2 Khe cắm MPU, 8 SFU slots, 20 LPU slots, Và 2 CMU slots. | 18 khe cắm, bao gồm 2 Khe cắm MPU, 8 SFU slots, Và 8 LPU slots. |
| Redundant MPUs | 1:01 | 1:01 |
| Redundant Switch fabrics | 7+1 | 7+1 |
| Quạt dự phòng | There are three fan partitions on the device, with each having four fan modules in 3+1 backup mode. | The device has two fan partitions. The LPU area provides three fan modules in 2+1 backup mode. The SFU area provides two fan chassis in 1+1 backup mode. |
Huawei NE9000-20 Router Product Features
Powerful Forwarding Capability
Huawei NE9000 – 20 Router supports full-duplex forwarding of IPv4, IPv6, and MPLS packets at line rate on all interfaces. Huawei NE9000 – 20 Router can also forward multicast traffic at line rate, and its hardware supports two-level multicast traffic replication: replication from switch fabric units (SFU) to line processing units (LPUs) and replication from an LPU’s forwarding engine to interfaces on the LPU.
Cloud-Oriented Agile Open Architecture
Huawei NE9000 – 20 Router supports various technologies that cover multiple scenarios including the WAN backbone network and DCI. In the backbone traffic control solution, the NE9000 supports real-time traffic control, improving link usage. In the IP+optical solution, the NE9000 allows for consolidation of network resources across layers, simplifying O&M and improving network resource usage.
Advanced Service Capability
Huawei NE9000 – 20 Router provides the well-designed IPv4/IPv6 solution to support a smooth transition from IPv4 networks to IPv6 networks, the MPLS and VPN solution to implement L3VPN based on MPLS/BGP, and the E2E VPN solution. Ngoài ra, the NE9000 offers advanced QoS capabilities, providing different SLAs to meet the development requirements of various services such as Voice over Internet Protocol (VoIP) and over the top (OTT).
Huawei NE9000-20 Router Product Applications
Huawei NE9000-20 Router Ordering Info
| Số mô hình | Sự miêu tả |
| Base Unit | |
| CR9P9KBASD80 | NE9000-20 Basic Configuration(Include NE9000-20 48V DC Chassis,2*MPUN1,8*SFUIF,4*16Bộ nhớ G,2*8G SSD Card,9*DC Power Module) |
| CR9P9KBASD84 | NE9000-20 Basic Configuration(Include NE9000-20 48V DC Chassis,2*MPUN1,8*SFU4TB,4*16Bộ nhớ G,2*32G SSD Card,9*DC Power Module) |
| CR9P9KBASD82 | NE9000-8 Basic Configuration(Include NE9000-8 48V DC Chassis,2*MPUP1,8*SFU4TA,4*32Bộ nhớ G,2*32G SSD Card,6*DC Power Module) |
| 4T Line Card | |
| CR9D00EKNB8P | 40-Port 100GBase-QSFP28 Integrated Line Process Unit CM(NE9000 LPUI-4T-CM) |
| CR9D00EKNB80 | 40-Port 100GBase-QSFP28 Integrated Line Process Unit(NE9000 LPUI-4T) |
| 2T Line Card | |
| CR9D00EDNB80 | 16-Port 100GBase-QSFP28 Integrated Line Process Unit(NE9000 LPUI-2T) |
| CR9D00EDNB8P | 16-Port 100GBase-QSFP28 Integrated Line Process Unit CM(NE9000 LPUI-2T-CM) |
| CR9D00DDNC80 | 16-Port 100G ETH/DWDM-CFP2 Integrated Line Process Unit(NE9000 LPUI-2T) |
| CR9D00EENC80 | 20-Port 100GBase-QSFP28 Integrated Line Process Unit(NE9000 LPUI-2T) |
| CR9D00EENC8P | 20-Port 100GBase-QSFP28 Integrated Line Process Unit CM(NE9000 LPUI-2T-CM) |
