Mã hàng: Huawei CE5855-48T4S2Q-EI Loại: Thẻ: , ,

Sự miêu tả

Huawei CE5855-48T4S2Q-EI Switch is next-generation, high-density Gigabit Ethernet switch with 48*GE BASE-T ports, 4*10Cổng GE SFP+,2*40Cổng GE QSFP+

Huawei CE5855-48T4S2Q-EI Switch Overview

The switch is designed for data centers and high-end campus networks. The hardware has an advanced architectural design with the industry’s highest density of GE access ports. CE5855-48T4S2Q-EI is also the first Gigabit Ethernet access switch to provide 40GE uplink ports. By using the Huawei VRP8 software platform, the switch support Transparent Interconnection of Lots of Links (TRILL) and have a high stacking capability (up to 16-member switches in a stack system). Ngoài ra, the airflow direction (front-to- back or back-to-front) can be changed. Hơn thế nữa, Huawei CloudEngine 5855-48T4S2Q-EI can work with CE12800 switches to build an elastic, virtualized, high-quality fabric that meets the requirements of cloud-computing data centers. CE5800 switches provide high-density GE access to help enterprises build a scalable data center network. It can also be used as aggregation or access switches for enterprise

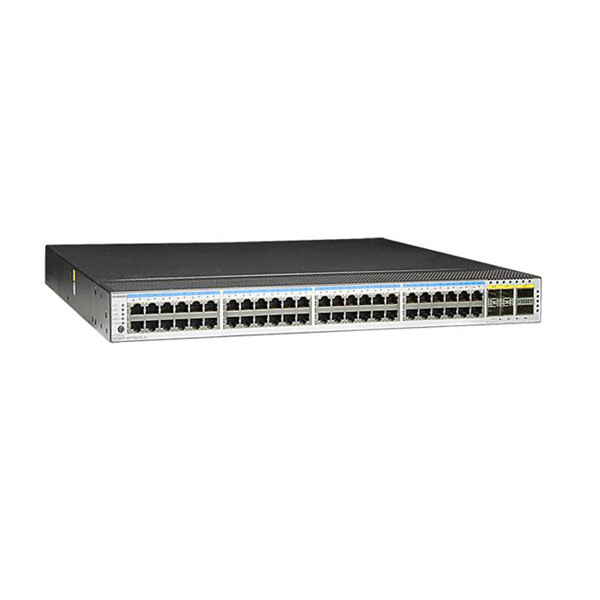

Huawei CE5855-48T4S2Q-EI Switch Pictures

Huawei CloudEngine 5855-48T4S2Q-EI price and specs ycictThông số kỹ thuật Huawei CE8851-32CQ8DQ

CE5855-48T4S2Q-EI price and specs huawei ce5800 switch ycictHuawei CE5855-48T4S2Q-EI huawei ce5800 series switch ycict

Huawei CE5855-48T4S2Q-EI Switch Specifications

Thông số CloudEngine 5855-48T4S2Q-EI
Cổng đường xuống 48 x GE Base-T and 4 x 10 GE SFP+
Cổng đường lên 2 x 40 GE QSFP+
Chuyển đổi công suất 336 Gbit/s
Hiệu suất chuyển tiếp 252 Mp
Bộ đệm 8 MB
độ tin cậy LACP
BFD for BGP, IS-IS, OSPF, and static route
ồ&M Dòng chảy trực tuyến
sDòng chảy
ERSPAN
Từ xa
Tính năng của trung tâm dữ liệu M-LAG
iStack
Tiêu thụ điện năng tối đa 103 W
Nguồn cấp AC: 150 W
DC: 350 W, –48 V
Điện áp hoạt động AC: 90–264 V
DC: –38,4 V đến –72 V

Huawei CE5855-48T4S2Q-EI Switch Features

  • Provide 48*GE line-speed ports, which makes future data center expansion easy.
  • support Super Virtual Fabric (SVF), which can virtualize multiple physical switches of the same or different types into one logical switch to simplify network management and improve reliability.
  • Support the TRILL protocol and can be used on a large Layer 2 TRILL network with GE/10GE servers. A TRILL network can contain more than 500 nodes, enabling flexible service deployments and large-scale Virtual Machine (VM) migrations.
  • Hỗ trợ lên tới 16 TRILL-based Layer 2 equal-cost paths, greatly improving links’ load balancing capabilities. The network has a fat-tree architecture that enhances expansion.
  • Use the Open Programmability System (OPS) embedded in the VRP8 software platform to provide programmability at the control plane.
  • Support Zero Touch Provisioning (ZTP). ZTP enables the CE5800 to automatically obtain and load version files from a USB flash drive or file server, freeing network engineers from onsite configuration or deployment. ZTP giảm chi phí lao động và cải thiện hiệu quả triển khai thiết bị.

Huawei CE5855-48T4S2Q-EI Switch and More CE5800

CE5850-48T4S2Q-HI Switch (48-Port GE RJ45, 4-Cổng 10GE SFP+, 2-Port 40G QSFP+, Không có quạt và mô-đun nguồn)
CE5850-48T4S2Q-EI Switch (48-Port GE RJ45, 4-Cổng 10GE SFP+, 2-Port 40G QSFP+, Không có quạt và mô-đun nguồn)
CE5810-48T4S-EI Switch (48-Port GE RJ45, 4-Cổng 10GE SFP+, Không có quạt và mô-đun nguồn)
CE5810-24T4S-EI Switch (24-Port GE RJ45, 4-Cổng 10GE SFP+, Không có quạt và mô-đun nguồn)
CE5880-48T6Q-EI Switch (44Port G RJ45, 4-Port 10G RJ45, 6-Port 40GE QSFP+, Không có quạt và mô-đun nguồn)

CloudEngine 5855-48T4S2Q-EI 48*GE BASE-T ports, 4*10Cổng GE SFP+,2*40Cổng GE QSFP+
CloudEngine 5882-48T4S 48*GE BASE-T ports, 4*10Cổng GE SFP+.

Huawei CE5855-48T4S2Q-EI Switch Ordering Info

Mã sản phẩm Mô hình phần Phần mô tả
02350GTR CE5855-48T4S2Q-EI-F CE5855-48T4S2Q-EI Switch (48-Port GE RJ45, 4-Port 10G SFP+, 2-Port 40G QSFP+, 2*Hộp QUẠT, Ống xả phía cổng, Without Power Module)
02350GTT CE5855-48T4S2Q-EI-B CE5855-48T4S2Q-EI Switch (48-Port GE RJ45, 4-Port 10G SFP+, 2-Port 40G QSFP+, 2*Hộp QUẠT, Cửa hút phía cảng, Without Power Module)
02350GTU CE5855-EI-F-B00 CE5855-48T4S2Q-EI Switch (48-Port GE RJ45, 4-Port 10G SFP+, 2-Port 40G QSFP+, 2*Mô-đun nguồn AC, 2*Hộp QUẠT, Ống xả phía cổng)
02350GTW CE5855-EI-B-B00 CE5855-48T4S2Q-EI Switch (48-Port GE RJ45, 4-Port 10G SFP+, 2-Port 40G QSFP+, 2*Mô-đun nguồn AC, 2*Hộp QUẠT, Cửa hút phía cảng)
02350TJD CE5855-48T4S2Q-EI CE5855-48T4S2Q-EI Switch (48-Port GE RJ45, 4-Port 10G SFP+, 2-Port 40G QSFP+, Without Fan Box and Power Module)

Huawei CloudEngine 5855-48T4S2Q-EI Switch Applications
