опис
Nokia G-140W-G FTTH is a GPON Optical terminal unit with1*GE+3*FE+1*USB Port 2.4G WiFi ENG firmware delivering premium service experience for all services, and applied for business offices, hospitals, hospitality, real estate developers and other organizations
Nokia G-140W-G FTTH Product Overview
Nokia G-140W-G FTTH is a solution for home networking delivered by Gigabit Passive Optical Network (GPON). The device has built-in Wi-Fi® 802.11b/g/n networking with triple play capability that simplifies the home equipment experience. В додаток, It can provide triple play services with voice, video and data. G-140W-G is designed to take advantage of Nokia award-winning management platforms. These platforms include a customized Motive™ Home Device Manager that is integrated with the Nokia 5520 Access Management System (AMS) to deliver a uniform end-to-end operations, administration, and maintenance (OA&М) solution that carriers need to provide subscriber satisfaction.

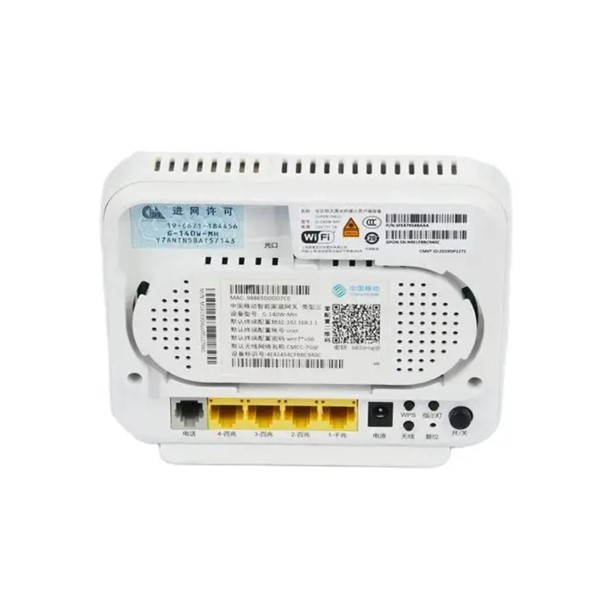

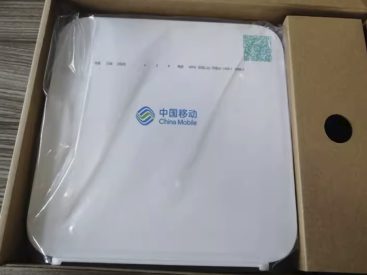

Nokia G-140W-G FTTH Product Pictures
Nokia G-140W-G FTTH Product Specifications
Модель | Nokia G-140W-G |
UNI | 1 ГОРЩИКИ + 1 GE + 3 FE + 2.4G Wi-Fi |
вага | < 180 g |
Робоча температура | 0°C до +40 °C |
Робоча вологість | 5% RH до 95% RH (без конденсації) |
Вхід адаптера живлення | 100В до 240 В змінного струму, 50/60 Гц |
Системне живлення | 11V to 14V DC, 1.5А |
Статичне енергоспоживання | 3.1В |
Максимальне споживання електроенергії | 7.15В |
NNI | GPON |
Optical Connector | SC/UPC |
Індикатори | POWER/PON/LOS/LAN/TEL/WLAN/WPS |
Розміри (Д x Ш x В) | 30 мм х 152 мм х 105 мм (без зовнішньої антени та колодок) |
Nokia G-140W-G FTTH Product Features
- Single GPON interface with data rates of 2.488 Gb/s downstream, 1.244 Gb/s upstream
- 4 Ethernet LAN connections (1 GigE and 3 Fast Ethernet [FE])
- 1 plain old telephone service (ГОРЩИКИ) підключення
- Reset button
- LED indicators on/off button
- Wireless LAN (WLAN) and Wi-Fi Protected Setup (WPS) enable/disable buttons
- UPnP Internet Gateway Device (IGD) 2.0 підтримка 2.4 GHz wireless interface
- Two 3 dBI indoor multi-directional internal Wi-Fi antennas (not detachable)
- Multiple input, multiple output (MIMO)
- Support for up to 20 concurrent wireless connections
- 11b/g/n compliant
- Medium dependent interface/medium dependent interface crossover (MDI/MDIX) auto sensing
- Auto-negotiation for speed and duplex
- Multiple voice codec
Nokia G-140W-G FTTH and More FTTH Models
Г-010G-P GPON 1 порт GE
я-010G GPON 1 порт GE
Г-010G GPON 1 порт GE
G-140W-MH GPON 1*GE+3*FE+1*POTS+1*USB+2.4G WIFI, 3дБі
G-140W-MD GPON 1*GE+3*FE+WIFI
G-140W-ME GPON 4*GE+1*POTS+2*USB+2.4G/5G WIFI
G-140W-MF GPON 4*GE+1*POTS+2*USB+2.4G/5G WIFI
G-140W-C GPON 4*GE+1*POTS+2*USB+2.4G/5G WIFI
G-1425-MA GPON 4*GE+1*POTS+2*USB+2.4G/5G WIFI
G-1426-MA GPON 4GE+2USB+1POTS+2.4G/5G дводіапазонний WI-FI 6 AX1800
G-140W-G GPON 1*GE+3*FE+1*POTS+1*USB+2.4G WIFI, 3дБі
HA-020W-C дводіапазонний Wi-Fi 5 Домашній маршрутизатор бездротової точки доступу
Nokia G-140W-G FTTH Product Applications
