Huawei CE-SFU04F1-G Board

опис

Huawei CE-SFU04F1-G Board is Switch Fabric Unit F1 for CE16804 Equipment.

Huawei CE-SFU04F1-G Board Product Overview

Huawei CE-SFU04F1-G Board is Switch Fabric Unit F1 for CE16084 Equipment and functions as the switching unit of the device and is responsible for line-rate switching of the system data plane.

The CE 12800 series switches are a new generation of high-performance core switches launched by Huawei for data center networks, providing stable, надійний, and secure high-performance L2/L3 layer switching services, realizing flexible, віртуальний, agile, and high-quality networks.

CE 12800 provides 1102/3096Tbps ultra-large switching capacity; a single device supports 576 100GE, 576 40GE, 2304 25GE or 2304 10GE full wire-speed interfaces. The CE 12800 series supports industrial-grade reliability, strict front and rear air duct design, and supports comprehensive virtualization capabilities and rich data center features. В додаток, the CE 12800 series uses a variety of green energy-saving innovative technologies to significantly reduce equipment energy consumption.

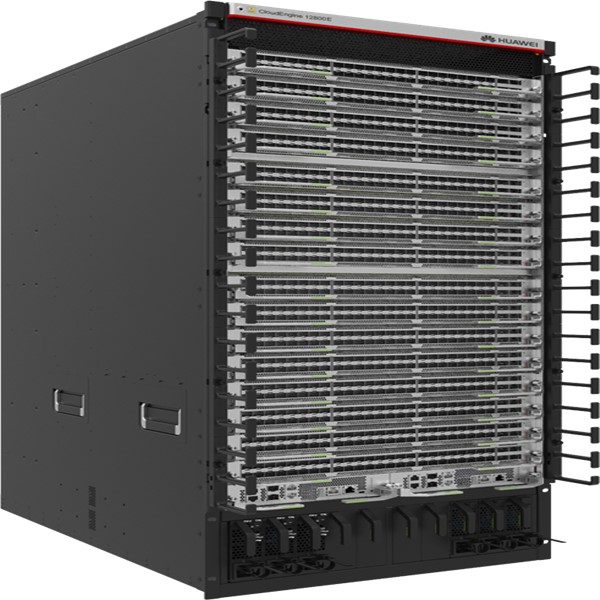

Huawei CE-SFU04F1-G Board Product Pictures

Huawei CE-SFU04F1-G Board product Specifications

Пункт	Специфікація
опис	CE16804 Switch Fabric Unit F1
Номер частини	3059671
Шовкографія	CE-SFU04F1-G
Модель	CE-SFU04F1-G
Перша підтримувана версія	V200R019C10
Розміри без упаковки (В х Ш х Г)	316.5 мм х 42.4 мм х 233.6 мм (12.46 в. х 1.67 в. х 9.20 в.)
Вага без упаковки	3.3 кг (7.28 фунт)
ЦП	Quad-core, 1.4 GHz clock speed
Спалах	Стандартний 128 MB
Пам'ять	Стандартний 2 GB
Типове споживання електроенергії	72 В
Максимальна споживана потужність	99 В
Типова тепловіддача	246 BTU/год
Максимальна тепловіддача	338 BTU/год
Product certification	Safety standards compliance
	EMC standards compliance
	Environmental standards compliance

Huawei CE-SFU04F1-G Board Product Features

• Support BGP-EVPN as the control plane of VXLAN, simplifying the deployment of VXLAN
• BGP-EVPN triggers the automatic establishment of VXLAN tunnels between VTEPs to avoid full-mesh tunnel configuration; the control plane diffuses the MAC table for MAC learning, which can optimize the flooding of unknown flows
• Standard protocol, perfect connection with the equipment of manufacturers in the industry, to ensure the long-term evolution of the network
• Support distributed network deployment, support QinQ access to VXLAN and other access methods, flexibly customize diverse heterogeneous networks according to needs
• Support EVPN + VXLAN as the two-layer interconnection technology between DCs to realize VXLAN cross-data center active-active and save cross-DC bandwidth
• CloudEngine 16800 supports segmentation and reassembly of IP data packets. Large IP data packets can be transmitted over WAN networks without MTU restrictions. CloudEngine 16800 switch can also identify fragmented data packets for seamless interconnection with routers.

Huawei CE-SFU04F1-G Board Mapping Between Card and SFU

Device Model	Card	ДФУ	Number of SFUs Required for Linerate Forwarding
CE 16804/CE16808/ CE16816	36*100GE	CE-SFU04G-G/ CE-SFU08G-G/CE-SFU16G-G	5
	36*40GE	CE-SFU04F-G/ CE-SFU08F-G/CE-SFU16F-G	4
		CE-SFU04G-G/ CE-SFU08G-G/CE-SFU16G-G	4
	48*10GE	CE-SFU04F-G/ CE-SFU08F-G/CE-SFU16F-G	4
		CE-SFU04G-G/ CE-SFU08G-G/CE-SFU16G-G	4
	18*100GE	CE-SFU04F-G/ CE-SFU08F-G/CE-SFU16F-G	5
		CE-SFU04G-G/ CE-SFU08G-G/CE-SFU16G-G	5
	24*40GE	CE-SFU04F-G/ CE-SFU08F-G/CE-SFU16F-G	4
		CE-SFU04G-G/ CE-SFU08G-G/CE-SFU16G-G	4

Huawei CE-SFU04F1-G Board and More SFU Units

CE-SFU04G-G (CE16804 Комутаційний блок G)

CE-SFU04G-GK (CE16804 Switch Fabric Unit GK)

CE-SFU04F-G (CE16804 Комутаційний блок F)

CE-SFU04F1-G (CE16804 Switch Fabric Unit F1)

CE-SFU08G-G (CE16808 Комутаційний блок G)

CE-SFU08G-GK (CE16808 Switch Fabric Unit GK)

CE-SFU08F-G (CE16808 Комутаційний блок F)

CE-SFU08F1-G (CE16808 Switch Fabric Unit F1)

CE-SFU16G-G (CE16816 Комутаційний блок G)

CE-SFU16G-GK (CE16816 Switch Fabric Unit GK)

CE-SFU16F-G (CE16816 Комутаційний блок F)

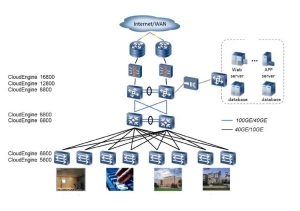

Huawei CE-SFU04F1-G Board Product Applications
