Tanım
SIMCom Y7080E LPWA Module is a Multi-Band NB-IoT module in SMT type.
SIMCom Y7080E LPWA Module Product Overview
It is designed for applications that need Low power consumption, Low throughput data communication in a variety of radio propagation conditions. The module has strong extension capability with rich interfaces including UART, GPIO etc. Aynı zamanda, it provides much flexibility and ease of integration for customer’s application. The package of Y7080E is compatible with mainstream models on the market. So it maximizes the investments of customers, and enables a short time-to- market. Benzersiz performans kombinasyonu sayesinde, güvenlik ve esneklik, SIMCom Y7080E LPWA Module is ideally suited for M2M applications, such as metering, varlık takibi, remote monitoring , E-health etc

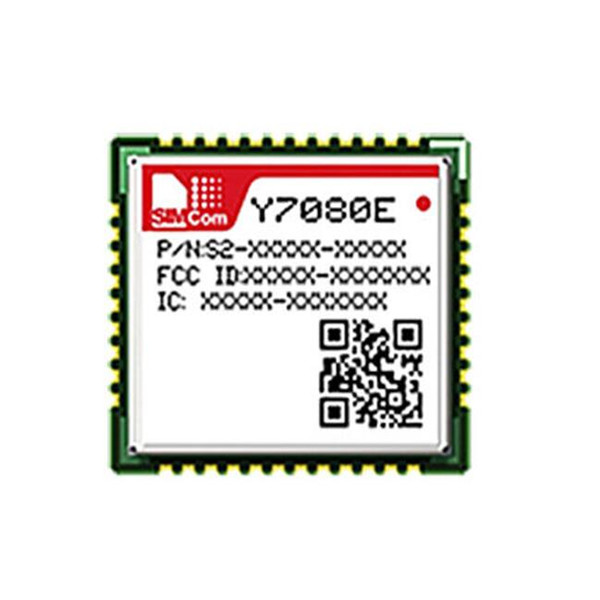

SIMCom Y7080E LPWA Module Product Pictures
SIMCom Y7080E LPWA Module Product Specifications
Marka | SIMCom |
Modeli | Y7080E |
Form faktörü | LCC+LGA 77Pin |
Boyutlar(mm) | 17.6×15.7×2.4 mm |
Ağırlık | 1.2g±0,2g |
Besleme voltajı aralığı | 3.0V~4.2V [NB+GNSS] 2.2V~4.2V [NB only] |
Veri | Yukarı bağlantı: 159Kbps İndirme Bağlantısı:127Kbps |
GNSS(İsteğe bağlı) | • Time-To-First Fix2:Cold starts 29s Hot starts <2S |
Tüketim | Consumption NB only 1.7uA@ PSM 0.48mA @ Idle(DRX=2.56s)0.25mA @ Idle (eDRX=40.96s;PTW=81.92s) |
Arayüzler | UART USIM card (1.8V/3V) Netlight RI ADC GPIO |
Diğer özellikler | Firmware update via UART TCP/UDP/HTTP/DNS/NTP/PING/TLS*/DTLS* LWM2M*/COAP/MQTT OneNET/CTWING DFOTA |
Sertifikalar | Taşıyıcı: Vodafone*/ Deutsche Telekom*/ Telefónica*/ Orange*/Mobile*/Unicom*/Telecom* Düzenleyici: GCF*/ CE*/ RoHS*/REACH*/CAT*/SRRC* |
SIMCom Y7080E LPWA Module Product Features
- Control Via AT Commands
- provide deeper coverage enhancement compared to GSM
- Güç Tasarruf Modu ile (PSM) ve Genişletilmiş Kesintili Alım (eDRX), Y7080E can extend battery life to 10 yıllar
SIMCom Y7080E LPWA Module and More Models
Y7080E LCC+LGA 77Pin
R7072 LCC
SIM7022 LCC
SIM7090G LGA
SIM7060R LCC 68Pin
SIM7070E LCC
SIM7080G LCC+LGA 77Pin
SIM7070G LCC 68Pin
SIM7060G LCC 68Pin
SIM7020E LCC 42Pin
SIM7020G LCC 42Pin
SIM7000G LCC 68Pin
SIM7000E LCC 68Pin
SIM7000A LCC 68Pin
SIM7000JC LCC 68Pin
SIM7000C LCC 68Pin
SIM7000E-N LCC 68Pin
SIMCom Y7080E LPWA Module Product Applications
