GYTA53 Armored Cable

Tanım

GYTA53 Armored Cable is Stranded Loose Tube Armored Cable（GYTA53）complying with Standard YD/T 901-2018 as well as IEC 60794-1.

GYTA53 Armored Cable Product Overview

This Outdoor Optical Cable consists of 250um fibers held in gel-filled PBT loose tubes, and wrapped around a phosphatized steel wire central strength member. A waterproof compound fills the loose tube, and the center of the cable core is a metal reinforced core. For some optical fiber cables, a layer of polyethylene (PE) needs to be extruded outside the metal-reinforced core. Ek olarak, the loose tube (and filler rope) twists around the central reinforcing core to form a compact and round cable core, and the water blocking fillers fill the gaps in the cable core. A polyethylene sheath wraps and extrudes into plastic-coated aluminum tape (APL) longitudinally to form a cable.

Fiber optic cables for outdoor applications are engineered to withstand the more demanding conditions seen outside, from environmental extremes to mechanical forces. These are the outdoor fiber optic cables you see strung along telephone poles (aerial), installed inside an underground duct, or even buried directly below ground. Outdoor cables feature rugged constructions to resist ultra-violet light and temperature fluctuations and may include features to withstand the requirements of being installed outdoors.

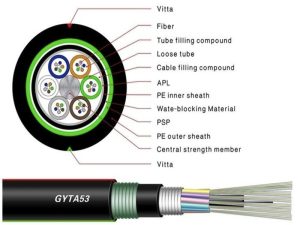

GYTA53 Armored Cable Product Pictures

GYTA53 Armored Cable Product Specifications

		G.652	G.655	50/125μm	62.5/125μm
zayıflama (+20°C)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0,23dB/km
Bant genişliği (A sınıfı)	@850nm			≥500 MHz·km	≥200 MHz·km
	@1300nm			≥1000 MHz·km	≥600 MHz·km
Sayısal Açıklık				0.200±0,015NA	0.275±0,015NA
Kablo Kesme Dalga Boyu		≤1260nm	≤1480nm

Çekirdek	Structure	Dia	Ağırlık	Tensile（N）		Crush（N）		Bend Radius（mm）Static Dynamic
		（mm）	（kg/km）	Long Short		Long Short
2-30	1+6	12.6	162	1000	3000	1000	3000	12.5D	25D
32-36	1+6	12.6	162	1000	3000	1000	3000	12.5D	25D
38-60	1+6	13.6	187	1000	3000	1000	3000	12.5D	25D
62-72	1+6	13.6	188	1000	3000	1000	3000	12.5D	25D
74-84	1+7	14.5	214	1000	3000	1000	3000	12.5D	25D
86-96	1+8	15.2	230	1000	3000	1000	3000	12.5D	25D
98-108	1+9	15.9	248	1000	3000	1000	3000	12.5D	25D
110-120	1+10	16.6	267	1000	3000	1000	3000	12.5D	25D
122-132	1+11	17.2	288	1000	3000	1000	3000	12.5D	25D
134-144	1+12	18	312	1000	3000	1000	3000	12.5D	25D
146-216	1+6+12	17.9	311	1000	3000	1000	3000	12.5D	25D
218-288	1+9+15	19.9	377	1000	3000	1000	3000	12.5D	25D

GYTA53 Armored Cable Product Features

• Good mechanical and temperature performance
• High strength looes tube that is hydrolysis resistant
• Special tube filling compound ensure a critical protection of fiber
• Crush resistance and flexibility
• Steel wire used as the central strength member
• Loose tube filling compound
• 100% cable core filling
• PSP enhancing moisture-proof
• Water-blocking material
