Tanım
Cisco WS-C2960L-24TS-LL Switch offers 24 10/100/1000 Ethernet bağlantı noktaları; four 1-Gigabit Ethernet small form-factor pluggable (SFP) module uplink slots
Cisco WS-C2960L-24TS-LL Switch General Introduction
The Cisco Catalyst 2960-L Series switches support IEEE 802.3af Power over Ethernet (Yetki Belgesi) and IEEE 802.3at PoE+ (up to 30W per port) for converged Cisco IP phones, Cisco Aironet® wireless access points, or other standards-compliant PoE/PoE+.
PoE eliminates the need to supply wall-mounted power to PoE-enabled devices and eliminates the need to increase the cost of power cables and circuits, which are essential in IP phones and WLAN deployments.
The Cisco Catalyst 2960-L Series PoE power allocation is dynamic and the power map can be extended to ** 370W PoE+ power. Intelligent power management enables flexible power distribution across all ports

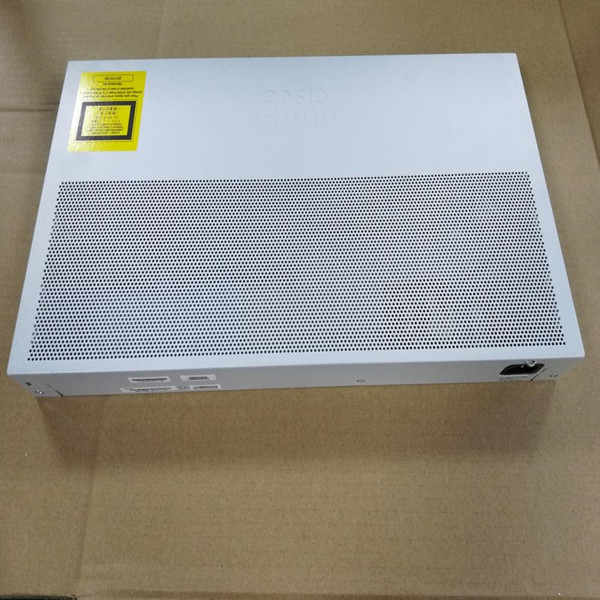

Cisco WS-C2960L-24TS-LL Switch Product Picture
Cisco WS-C2960L-24TS-LL Switch Datasheet
Marka | Cisco |
Ürün | WS-C2960L-24TS-LL |
Ürün Açıklaması | Catalyst 2960L 24 port GigE. 4 x 1G SFP. LAN Lite |
Ürün hattı | Cisco Katalizörü |
Marka | Cisco |
Modeli | 2960L-24TS-LL |
Connectivity Technology | kablolu |
Uzaktan Yönetim Protokolü | CLI, SNMP 3 |
Durum Göstergeleri | Link/speed, Yetki Belgesi, Durum, Sistem |
Ports Qty | 24 |
Yönlendirme Protokolü | IGMP |
MAC Adres Tablosu Boyutu | 8000 girdileri |
Subcategory | Network hubs and switches |
Ethernet üzerindeki güç (Yetki Belgesi) | Yetki Belgesi |
Manageable | Evet |
Form faktörü | Masaüstü, Rafa monte edilebilir |
Jumbo Çerçeve Desteği | 10240 bayt |
Frequency Required | 50 – 60 Hz. |
Nominal Voltage | AC 120/230 V |
Installed Size | 256 MB |
Genişlik | 17.5 içinde |
Derinlik | 9.4 içinde |
Yükseklik | 1.7 içinde |
Ağırlık | 6.61 lbs |
Uyumlu Standartlar | IEEE 802.1D, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad (LACP), IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
Cisco WS-C2960L-24TS-LL Switch Feature
Erişim kontrol Listesi (ACL) Destek, ARP support, Bridge protocol data unit (BPDU), Cisco EnergyWise technology,
DHCP gözetleme, Dinamik ARP Denetimi (DAI), Dinamik Kanal Protokolü (DTP) Destek, Dynamic VLAN Support (GVRP), Fansız,
IGMP filtering, Katman 2 anahtarlama, Link Aggregation Control Protocol (LACP), MAC Address Notification, Multiple Spanning Tree Protocol (MSTP) Destek,
Network Timing Protocol (NTP), Per-port broadcast throttling, Per-VLAN Rapid Spanning Tree (PVRST), Bağlantı Noktası Birleştirme Protokolü (PAgP) Destek,
RADIUS support, Hızlı Yayılan Ağaç Protokolü (RSTP) Destek, SNMP support, Spanning-tree Root Guard (STRG), Önemsiz Dosya Aktarım Protokolü (TFTP) Destek,
Uni-Directional Link Detection (UDLD), VLAN Trunking Protocol (VTP)
Cisco WS-C2960L-24TS-LL Switch More Related Models
ürün kimliği* | 10/100/1000 Ethernet bağlantı noktaları | Yukarı bağlantı arayüzleri | Fansız | Mevcut PoE gücü | Ağırlık | Boyutlar (Y x D x G) |
WS-C2960L-8TS-LL/ | 8 | 2 SFP | e | – | 3.33 1 pound = 0.45 kg (1.51kilogram) | 1.73 X 8.45 X 10.56 içinde. |
WS-C2960L-SM-8TS | (4.4 X 21.5 X 26.8 santimetre) | |||||
WS-C2960L-8PS-LL/ | 8 | 2 SFP | e | 67K | 4.50 1 pound = 0.45 kg (2.04kilogram) | 1.73 X 9.45 X 10.56 içinde. |
WS-C2960L-SM-8PS | (4.4 X 24 X 26.8 santimetre) | |||||
WS-C2960L-16TS-LL/ | 16 | 2 SFP | e | – | 3.41 1 pound = 0.45 kg (1.55kilogram) | 1.73 X 8.45 X 10.56 içinde. |
WS-C2960L-SM-16TS | (4.4 X 21.5 X 26.8 santimetre) | |||||
WS-C2960L-16PS-LL/ | 16 | 2 SFP | e | 120K | 4.65 1 pound = 0.45 kg (2.11kilogram) | 1.73 X 9.45 X 10.56 içinde. |
WS-C2960L-SM-16PS | (4.4 X 24 X 26.8 santimetre) | |||||
WS-C2960L-24TS-LL/ | 24 | 4 SFP | e | – | 6.04 1 pound = 0.45 kg (2.74kilogram) | 1.73 X 9.45 X 17.5 içinde. |
WS-C2960L-SM-24TS | (4.4 X 24 X 44.5 santimetre) | |||||
WS-C2960L-24PS-LL/ | 24 | 4 SFP | e | 195K | 7.41 1 pound = 0.45 kg (3.36kilogram) | 1.73 X 10.45 X 17.5 içinde. |
WS-C2960L-SM-24PS | (4.4 X 26.5 X 44.5 santimetre) | |||||
WS-C2960L-24TQ-LL/ | 24 | 4 SFP+ | e | – | 6.06 1 pound = 0.45 kg (2.75kilogram) | 1.73 X 9.45 X 17.5 içinde |
WS-C2960L-SM-24TQ | (4.4 X 24 X 44.5 santimetre) | |||||
WS-C2960L-24PQ-LL/ | 24 | 4 SFP+ | e | 195K | 7.39 1 pound = 0.45 kg (3.35kilogram) | 1.73 X 10.45 X 17.5 içinde |
WS-C2960L-SM-24PQ | (4.4 X 26.5 X 44.5 santimetre) | |||||
WS-C2960L-48TQ-LL/ | 48 | 4 SFP+ | e | – | 6.68 1 pound = 0.45 kg (3.03kilogram) | 1.73 X 9.45 X 17.5 içinde |
WS-C2960L-SM-48TQ | (4.4 X 24 X 44.5 santimetre) | |||||
WS-C2960L-48PQ-LL/ | 48 | 4 SFP+ | N | 370K | 1.73 X 11.5 X 17.5 içinde | |
WS-C2960L-SM-48PQ | (4.4 X 29.2 X 44.5 santimetre) | |||||
WS-C2960L-48TS-LL/ | 48 | 4 SFP | e | – | 6.57 1 pound = 0.45 kg (2.98kilogram) | 1.73 X 9.45 X 17.5 içinde. |
WS-C2960L-SM-48TS | (4.4 X 24 X 44.5 santimetre) | |||||
WS-C2960L-48PS-LL/ | 48 | 4 SFP | N | 370K | 10.08 1 pound = 0.45 kg (4.57kilogram) | 1.73 X 11.5 X 17.5 içinde. |
WS-C2960L-SM-48PS | (4.4 X 29.2 X 44.5 santimetre) |
