Huawei TN53NS2 WDM Board is 10G service processing board TN53NS2 WDM WDM equipment
Huawei TN53NS2 WDM Board Product Overview
Huawei TN53NS2 WDM Board is 10G service processing board TN53NS2 WDM equipment
The functional versions of NS2 boards are: TN11, TN12, TN52, TN53
The NS2 board belongs to the line type board, and realizes the mutual conversion of the following signals: 8 x ODU0 / 4 x ODU1 / 1 x ODU2 / 2 x ODUflex1 x OTU2 or 1 x ODU2e1 x OTU2e. OTU2 / OTU2e is the wavelength of DWDM standard that complies with ITU-T G.694.1 recommendation. Support ODU0, ODU1, ODUflex mixed transmission.
TN11NS2 / TN12NS2 / TN52NS2 / TN53NS2 single board realizes the conversion between 4 ODU1 signals and 1 OTU2 signal
The NS2 board supports functions and features such as electrical layer crossover, อินเทอร์เฟซ OTN, and ESC.
Only OptiX OSN 8800 supports ODU0 / โอดูเฟล็กซ์.
Only OptiX OSN 8800 and OptiX OSN 6800 support ODU2 / ODU2e signals.

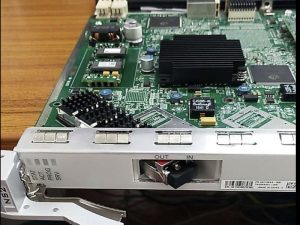

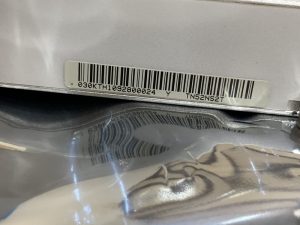

Huawei TN53NS2 WDM Board Product Pictures
Huawei TN53NS2 WDM Board Product Specifications
| Product specs | คำอธิบาย |
| ยี่ห้อ | หัวเว่ย |
| ฟังก์ชั่นพื้นฐาน | NS2 supports signal conversion: |
| TN11NS2: | |
| 4xODU11xOTU2 | |
| TN12NS2: | |
| 4xODU1/1xODU21xOTU2 | |
| 1xODU2e1xOTU2e | |
| TN52NS2T02/TN52NS2T03: | |
| 8xODU0/4xODU1/1xODU21xOTU2 | |
| 1xODU2e1xOTU2e | |
| TN52NS2T04/TN52NS2T05/TN52NS2T06/TN52NS201M01/TN52NS201M02: | |
| 8xODU0/4xODU1/1xODU2/2xODUflex1xOTU2 | |
| 1xODU2e1xOTU2e | |
| TN53NS2: | |
| 8xODU0/4xODU1/1xODU2/2xODUflex1xOTU2 | |
| 1xODU2e1xOTU2e | |
| Support mixed transmission of ODU0 signal, ODU1 signal and ODUflex signal. | |
| Cross Capacity | OptiX OSN 8800： |
| TN52NS2T02 / TN52NS2T03: Support 8-channel ODU0 signal or 4-channel ODU1 signal or 1-channel ODU2 signal or 1-channel ODU2e signal and cross-board to implement cross-scheduling of services. | |
| TN52NS2T04 / TN52NS2T05 / TN52NS2T06 / TN52NS201M01 / TN52NS201M02 / TN53NS2: support 8-channel ODU0 signal or 4-channel ODU1 signal or 2-channel ODUflex signal or 1-channel ODU2 signal or 1-channel ODU2e signal and cross-board to achieve cross-scheduling of services. | |
| OptiX OSN 6800： | |
| TN11NS2: supports 4-way ODU1 signals and cross-board or dual-slot boards to implement cross-service scheduling. | |
| TN12NS2 / TN52NS2 / TN53NS2: รองรับ 4 ODU1 signals or 1 ODU2 signal or 1 ODU2e signal and cross-board to implement cross-dispatch of services. | |
| OptiX OSN 3800： | |
| TN11NS2: Supports the scheduling of 4 ODU1 signals to other 3 boards in the 4-board mesh group. | |
| TN12NS2 / TN52NS2 / TN53NS2: Supports the scheduling of 2 ODU1 signals from 4 ODU1 signals to the non-dual slots of the 4-mesh group, ie supports IU2 and IU4, IU2 and IU5, IU3 and IU4, IU3 and IU5 Scheduling. | |
| OTN Function | The WDM side supports OTU2 / OTU2e interface. |
| ใช้รูปแบบเฟรมและการประมวลผลเหนือศีรษะที่แนะนำโดย ITU-T G.709. | |
| OTU2 layer: Support SM function. | |
| เลขที่ (k = 0, 1, 2) ชั้น: Support PM and TCM functions, non-intrusive monitoring function of PM and TCM. | |
| ODUflex layer: supports PM and PM non-intrusive monitoring functions. | |
| Only TN52NS2T04 / TN52NS2T05 / TN52NS2T06 / TN52NS201M01 / TN52NS201M02 / TN53NS2 support ODU0 layer TCM and TCM non-intrusive monitoring functions. | |
| Only TN52NS2T04 / TN52NS2T05 / TN52NS2T06 / TN52NS201M01 / TN52NS201M02 / TN53NS2 support PM and PM non-intrusive monitoring functions of ODUflex layer. |
Huawei TN53NS2 WDM Board Product Features
- Support DWDM technical specifications.
- รองรับโมดูลหรี่แสงความยาวคลื่น. สามารถบรรลุ:
- สัญญาณออพติคอลด้านข้างแบบแบ่งความยาวคลื่นสามารถปรับได้ในช่วงคลื่น 40 ของแถบ C 100 ช่วงกิกะเฮิรตซ์.
- สัญญาณออพติคอลด้านข้างแบบแบ่งความยาวคลื่นสามารถปรับได้ในช่วงคลื่น 80 ของแถบ C 50 ช่วงกิกะเฮิรตซ์.
- The WDM side supports the PRBS function.
- TN52NS2T04 / TN52NS2T05 / TN52NS2T06 / TN52NS201M01 / TN52NS201M02 / TN53NS2 In the following scenarios, you need to enable the PRBS function on both the local and remote circuit boards to make PRBS effective.
- Working in standard mode and configured with ODU0 / ODU1 / ODUflex cross-connect, or working in compatible mode and not configured with cross-connect.
- The wavelength division signals of the TN11NS2 / TN12NS201M02 / TN12NS201M03 / TN12NS2T02 / TN12NS2T03 / TN12NS2T04 / TN12NS2T05 boards can be relayed through other TN11LSXR boards.
- The signals on the WDM side of the TN12NS2A / TN12NS2B / TN52NS2 / TN53NS2 boards can be relayed through other TN12ND2 / TN52ND2 / TN53ND2 / TN57ND2 / TN55NO2 / TN55NH2 / TN53NQ2 / TN54NQ2 / TN57NQ2 boards.
- TN53NS2 supports BC and OC modes, but does not support TC and TC + OC modes.
- The TN53NS2 backplane supports when scheduling ODU0 / ODU1 / ODUflex signals.
- TN52NS2 / TN53NS2 support
