ZXHN F663NV3a FTTH

Beskrivning

ZXHN F663NV3a FTTH is GPON optical terminal Unit with 2GE+2FE LAN port + 2.4G WIFI engelsk firmware

ZXHN F663NV3a FTTH Product Overview

ZXHN F663NV3a FTTH is a single-frequency and economical smart gateway specially built by ZTE for China Mobile. This model uses the new-generation self-developed chip, loads the intelligent operating system, and supports dynamic loading of plug-ins, and givess users with abundant home services. The stable wireless performance provides smooth Wi-Fi for the home. Its unique open application platform creates an operator-dominated and user-centered smart home application ecosystem.

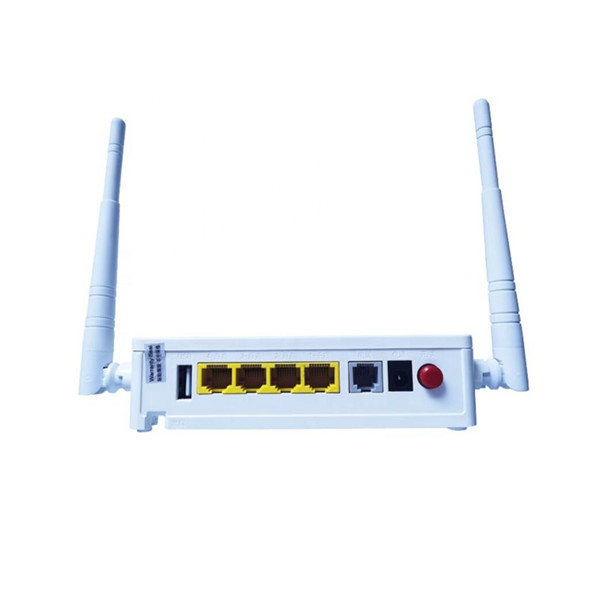

ZXHN F663NV3a FTTH Product Pictures

ZXHN F663NV3a FTTH Product Specifications

Technical items	Beskrivningar
Modell	ZXHN F663NV3a
Fibergränssnitt	SC/UPC
Fiberport	1 GPON-gränssnitt, 1GE+3FE+1POT+1USB+WIFI,SC singelläge,
	Nedströmshastighet 2,5 Gbps, Uppströmshastighet 1,25 Gbps
Våglängd	Tx 1310nm, Rx 1490nm
Röstprotokoll	SMUTTA, H.248
RX-känslighet	<-27dBm (1490nm)
WLAN	IEEE802.11b/g/n,2*2 MIMO, 2.4G WIFI,extern antenn
Nettovikt	≤0.6Kg
Konfigurationsmetod	NMS, webb, eller TR069
Kraft	≤8W
Likström	Adapteringång: 100-240 V AC, 50 – 60 Hz ;
	Adapterutgång: 11 – 14 V DC, 1 A
Knapp	Återställa, kraft
Drift	Arbetstemperatur: -0-+40℃
	working humidity:5-95%(icke-kondensering)
Dimensionera	250*220*65mm(längd bredd höjd)
L2-vidarebefordran	Forwarding packets of any length at wire speed
IPv4 L3-vidarebefordran	2Gbit/s with any length packets in downstream direction
	1Gbit/s with any length packets in upstream direction
IPv6 L3-vidarebefordran	2Gbit/s with any length packets in downstream direction
	1Gbit/s with any length packets in upstream direction
LAN	1*10/100/1000Mbps adaptiva Ethernet-portar, full/half duplex, RJ45-gränssnitt

ZXHN F663NV3a FTTH Product Features

• highly reliable heat dissipation design guarantees its stable operation.
• dual image ensures uninterrupted services during software downloading or upgrading, vilket förbättrar programvarans tillförlitlighet
• highly reliable lightning protection design provides lightning and surge protection of 4 kV för adaptern, 1.5 kV for the Phone interfaces, och 1.5 kV för Ethernet-portarna.
• full-service access capability featuring high bandwidth, hög prestanda, hög tillförlitlighet, och enkel drift, administration och underhåll (OMCI/TR-069) möter kundens ständigt föränderliga krav, skyddar den äldre investeringen, och ökar värdet på operatörens nätverk.

ZXHN F663NV3a FTTH and More FTTH Model

F401 EPON ONT, 1 LAN engelsk firmware

F411 EPON ONT, 1 L AN+ 1*VOICE Engelsk Firmware SIP

F412 EPON ONT, 2 LAN+VOICE Engelsk firmware SIPF

F420 EPON ONT, 4 LAN+ 2VOICE Engelsk Firmware SIP

F460 EPON ONT, 4 L AN+ 2VOICE+WIFI Engelsk Firmware SIP

F427 EPON ONT, 4 L AN+ 2VOICE +WlFI Engelsk firmware SIPZTE GPON ONT

F601 GPON ONT, 1 LAN engelsk firmware

F612 GPON ONT, 2 L AN+VOICE Engelsk Firmware SIP

F600 GPON ONT, 4 L AN engelsk firmware

F620 GPON ONT, 4 L AN+2VOICE Engelsk Firmware SIP

F620G GPON ONT, 4 GE+2VOICE Engelsk Firmware SIP

F660 V6.0 GPON ONT, 4 L AN+ 2VOICE+WlFI+USB Engelsk Firmware SIP

F660 V5.2 GPON ONT, 4 GE+2VOlCE+WlFI+USB Engelsk Firmware SIP

F660 V6.0 GPON ONT, 1 GE+3FE+2VOlCE+WlFI+USB Engelsk Firmware SIP

F625 GPON ONT, 4 LAN+2VOICE+RF(några) Engelsk Firmware SIP

F668 GPON ONT, 4 L AN+2RÖST+RF(några) +WlFI English Firmware SIP

ZTE ZXHN F663NV3a FTTH 1GE+3FE LAN-port + 2.4G WIFI engelsk firmware

ZTE ZXHN F663NV9 FTTH 2GE+2FE LAN-port + 2.4G WIFI engelsk firmware

ZXHN F663NV3a FTTH Product Applications
