Huawei SSN2PQ1A-kort

Beskrivning

Huawei SSN2PQ1A Board is 63xE1 service processing board (E1 / 75ohm)

Huawei SSN2PQ1A Board Product Overview

Huawei SSN2PQ1A Board supports E1 signal processing, overhead processing, alarms and performance events, maintenance features, and TPS protection.

Basic function 63-channel E1 signal processing. 63 E1 signal processing. Service processing N1 PQ1 cooperates with the outgoing board to access and process 63 E1 electrical signals. N2PQ1 can be connected to the outgoing board to access and process 63 E1 signals. Support E13 function, mainly realize the convergence of low-level service E1 to high-level service E3.

Overhead processing supports VC12 level channel overhead processing (transparent överföring och uppsägning), such as J2 bytes.

Alarms and performance provide a wealth of alarms and performance events to facilitate equipment management and maintenance.

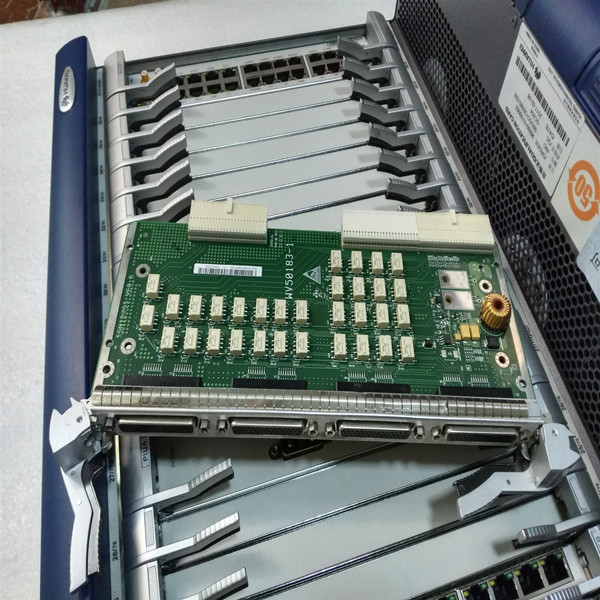

Huawei SSN2PQ1A Board Product Pictures

Huawei SSN2PQ1A BoardProduct Specifications

Huawei SSN2PQ1A Board Product Features

• Supporting the processing of the path overheads at the VC-12 level, such as the J2 byte.
• Supporting inloops and outloops at electrical interfaces
• Supporting warm resets and cold resets. The warm reset does not affect services.
• Supporting the query of the manufacturing information of the board.
• Supporting the in-service loading of the FPGA.
• Supporting the upgrade of the board software without affecting services.
• Supporting the PRBS test in the tributary direction and in the cross-connect direction in the normal mode.
• Not support the PRBS test in the MUX mode or Server mode.
• Supporting the TPS protection when working with the interface board.

Huawei SSN2PQ1A Board and Related Boards

Huawei SSN2PQ1A Board Product Applications
