Beskrivning
Huawei SmartAX MA5801-GP08-H3 is a compact and low-density box-shaped OLT, which provides multiple fiber to the home (FTTH) solutions to meet the requirements of economical and efficient network construction.
Huawei SmartAX MA5801-GP08-H3 Product Overview
MA5801-GP08-H3 is a box shaped OLT. It houses integrated control and service module, 1 pluggable fan module and 2 pluggable power modules. Its mounting ears are applicable to IEC specifications and ETSI specifications, and are used in racks or cabinets of different specifications.
With the continuous promotion of new services, such as 4K/VR videos, home networks, and network cloudification, optical fiber access has become an important means for countries around the world to popularize broadband networks. As optical fiber access nodes keep moving closer to end users, OLTs are closer to end use rs. Deployment scenarios are complex and diversified. In this case, network needs OLTs with small volume and low density.

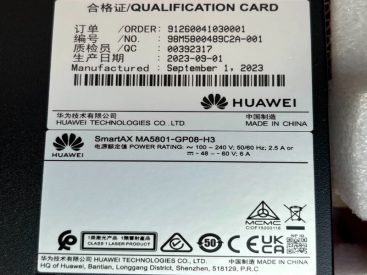

Huawei SmartAX MA5801-GP08-H3 Product Pictures
Huawei SmartAX MA5801-GP08-H3 Product Specifications
| Artikel | Value |
| Mått (B x D x H) (mm) | Excluding mounting ears: 442 x 220 x 43.6 |
| Including IEC mounting ears: 482.6 x 220 x 43.6 | |
| Including ETSI mounting ears: 531 x 220 x 43.6 | |
| Maximum fully-loaded weight | 5 kg |
| Strömförsörjningsläge | DC strömförsörjning (dual backup) |
| AC strömförsörjning (dual backup) | |
| Working voltage range | DC strömförsörjning: –38,4 V till –72 V |
| AC strömförsörjning: 100 V till 240 V | |
| Rated voltage | DC strömförsörjning: –48 V/–60 V |
| AC strömförsörjning: 110 V/220 V | |
| Maximal ingångsström | DC strömförsörjning: 6 A |
| AC strömförsörjning: 2.5 A | |
| Omgivningstemperatur | –40°C till +65°C |
| The device can start up at a lowest temperature of –25°C. | |
| Ambient humidity | 5%–95 % RF |
| Atmosfärstryck | 70–106 kPa |
| Höjd över havet | < 4000 m. The air density varies with the altitude and will affect the heat dissipation of a device. Därför, the working environment temperature of the device varies with the altitude. |
| Systemväxlingskapacitet | 110 Gbit/s |
| MAC-adresser | 32768 |
| Tillgång till ONT | 1024 |
| IPv4 routingtabell | 8192 |
| IPv6 routingtabell | 4096 |
| ARP bord | 16384 |
| Bit error rate (BER) in full load | A BER smaller than 10 e-10 for a port that transmits data in full load |
| Upstream ports | 4 GE/10GE |
| Service ports | 8 GPON |
| System reliability specifications | System availability for the typical configuration: > 99.999% |
| Medeltid mellan misslyckanden (MTBF): about 61 år | |
| Energiförbrukning | DC strömförsörjning: |
| Statisk strömförbrukning: 46W | |
| Typisk strömförbrukning: 64W Maximum power consumption: 111W AC strömförsörjning: | |
| Statisk strömförbrukning: 47W | |
| Typisk strömförbrukning: 65W | |
| Maximal strömförbrukning: 112W |
Huawei SmartAX MA5801-GP08-H3 Product Features
- The lightweight OLT weighs less than 5 kg and occupies 1 U installation space. It can be flexibly adapted to various scenarios.
- Supports dual AC or DC power supplies, providing flexible power supply and high reliability.
- The matching small outdoor cabinet can be installed on a pole, tower, or wall, facilitating installation and reducing engineering costs.
