Huawei SmartAX EA5800 X15

Beskrivning

Huawei SmartAX EA5800 X15 is positioned as the next-generation OLT for NG-PON supporting 15 serviceplatser, and provides GPON, XG-PON, XGS-PON, P2P GE, and 10GE access, and supports POL, FTTH, FTTB, and FTTC network construction modes. Thus it simplifies network architecture and reduces OPEX.

Huawei SmartAX EA5800 X15 Product Overview

Huawei SmartAX EA5800 X15 is the industry’s first distributed architecture intelligent aggregation OLT platform to help customers build a “broader, snabbare, smarter” access network and provide a better business experience. Huawei SmartAX EA5800 X15 provides multiple services such as xPON, P2P GE, and 10GE. It supports multiple network models including FTTx and D-CCAP to implement full-service convergence for home users, enterprise users, and mobile bearers. Huawei SmartAX EA5800 X15 combines the functions of an OLT and an aggregation switch to achieve unified aggregation of OLTs, MDUs, and campus switches, helping to simplify network architecture and reduce operating costs.

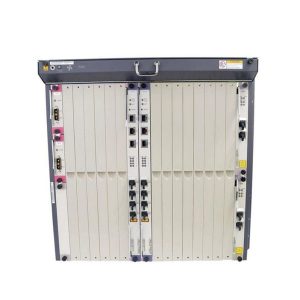

Huawei SmartAX EA5800 X15 Product Pictures

Huawei SmartAX EA5800 X15 Product Specifications

varumärke	Huawei
Modell	EA5800-X15
Supported Cabinets	N66E-22
Board Configuration	Control board slots
	Service board or upstream interface board slots
	Universal interface board slot
	Power board slot
Mått	11U high and 19 inches wide
(B x D x H)	Excluding mounting brackets: 442 mm x 287 mm x 486 mm
	Including mounting brackets: 482.6 mm x 287 mm x 486 mm
Max Input Current	60A
Power Supply Modes	DC power support (dubbel för säkerhetskopiering)
Arbetsspänningsområde	-38.4V to -72V DC
Rated voltage	-48V/-60V
Switching Capacity of the Control Board (laddningsdelningsläge)	3.6 Tbit/s
Maximum Bandwidth per Service Slot (laddningsdelningsläge)	100 Gbit/s
Systemlager 2 Packet Forwarding Rate (laddningsdelningsläge)	5,298 Mps
GPON Ports/ XG(S)-PON Ports	240
GE/FE Ports	720
10 GE Ports	360

Huawei SmartAX EA5800 X15 Product Features

Hög tillförlitlighet

supporting OLT dual-system hot backup, remote disaster recovery, upgrade business without interruption, complete QoS function, end-to-end high reliability design.

Multi-scenario access

Supporting multiple E1 leased line access, supports Native TDM or CESoP/SAToP functions, and E-LAN functions, and supports IPTV users without convergence access

Green energy

Supports automatic power-off of idle boards and intelligent speed control of fans to effectively reduce idle power consumption.

Smooth evolution

EPON/GPON/10G PON/40G PON common platform, support smooth evolution, meet ultra-bandwidth access; support IPv4/IPv6 dual stack; OLT product energy efficiency complies with EU CoC (Code of Conduct) energy efficiency standards, fully considers green Energy-saving design ensures the final energy consumption, noise and heat dissipation of the product, minimizing equipment energy consumption, reducing environmental pollution and reducing

Huawei SmartAX EA5800 X15 and EA5800-X17 EA5800-X7 EA5800-X2

#	EA5800-X17	EA5800-X15	EA5800-X7	EA5800-X2
Supported Cabinets	N63E-22	N66E-22	N63E-22, N66E-22	N63E-22
Mått	11U high and 21 inches wide	11U high and 19 inches wide	6U high and 19 inches wide	2U high and 19 inches wide
(B x D x H)	Excluding mounting brackets: 493 mm x 287 mm x 486 mm	Excluding mounting brackets: 442 mm x 287 mm x 486 mm	Excluding mounting brackets: 442 mm x 268.7 mm x 263.9 mm	Excluding mounting brackets: 442 mm x 268.7 mm x 88.1 mm
Maximum Weight (including mounting brackets)	45 kg	35 kg	26 kg	9.4 kg
Maximal ingångsström	60A	60A	40A	DC strömförsörjning: 20A
				AC strömförsörjning: 8A
Power Supply Modes	DC power support (dubbel för säkerhetskopiering)	DC power support (dubbel för säkerhetskopiering)	DC power support (dubbel för säkerhetskopiering)	DC power support (dubbel för säkerhetskopiering)
				AC strömförsörjning + battery for backup
Arbetsspänningsområde	-38.4V to -72V DC	-38.4V to -72V DC	-38.4V to -72V DC	DC strömförsörjning: -38.4V till -72V
				AC strömförsörjning: 100V till 240V
Rated voltage	-48V/-60V	-48V/-60V	-48V/-60V	DC strömförsörjning: -48V/-60V
				AC strömförsörjning: 110V/220V
Switching Capacity of the Control Board (laddningsdelningsläge)	3.6 Tbit/s	3.6 Tbit/s	3.6 Tbit/s	480 Gbit/s
Maximum Bandwidth per Service Slot (laddningsdelningsläge)	100 Gbit/s	100 Gbit/s	100 Gbit/s	80 Gbit/s
Systemlager 2 Packet Forwarding Rate (laddningsdelningsläge)	5,298 Mps	5,298 Mps	5,298 Mps	714 Mps
Maximum Number of Concurrent 4K Video Users	16,000	16,000	8,000	2,000
Maximum Number of MAC Addresses	262,143	262,143	262,143	262,143
Maximum Number of ARP/Routing Entries	131,072	131,072	131,072	131,072
GPON Ports/ XG(S)-PON Ports	272	240	112	32
GE/FE Ports	816	720	336	96
10 GE Ports	408	360	168	16

Huawei SmartAX EA5800 X15 Product Service Boards

H902MPLAE	EA5800 Main Processing Board
H901MPSCE	EA5800 Main Processing Board
H901CIUA	EA5800 Combo Interface Transfer Board
H901XGHDE	EA5800 8-port Advanced XG-PON OLT Interface Board
H901OGHK	EA5800 48-port Advanced GE/FE Optical Interface Board
H901NXED	EA5800 8-port Enhanced 10GE Uplink Interface Board
H901OXHD	EA5800 8-port Advanced 10GE Optical Interface Board
H902OXHD	EA5800 8-port Advanced 10GE Optical Interface Board
H901GPSFE	EA5800 16-port GPON OLT Interface Board
H901OXEG	EA5800 24 port Aggregationed 10GE/GE Optical Interface Board
H901TWEDE	EA5800 8-port Enhanced XGS-PON OLT Interface Board
H901XSHF	EA5800 16-port XGS-PON OLT Interface Board
H902GPHFE	EA5800 16-port GPON OLT Interface Board
H901PILA	EA5800 Power Transfer Board
H901PISA	EA5800 Power Transfer Board
H901PISB	EA5800 Power Transfer Board
H902PISB	EA5800 Power Transfer Board
H901FMLA	EA5800 EA5800-X15/X17 fan tray
H901FMMA	EA5800 EA5800-X7 fan tray
H901FMSA	EA5800 EA5800-X2 fan tray

Huawei SmartAX EA5800 X15 Product Applications
