Beskrivning
Huawei S1720X-32XWR Switch is a next-generation energy-saving Ethernet access switch with 32*10 Gig SFP+ and AC power supply, which is designed for small and medium-sized enterprises, Internetkaféer, hotell, och skolor
Huawei S1720X-32XWR Switch Product Overview
The switch provides forwarding performance: 252 Mpps and Switching Capacity: 680 Gbit/s. It is ideal for small to medium-sized businesses, Internet cafes, hotell, schools, and others. They are easy to install and maintain and provide rich services, hjälpa kunder att bygga säkert, pålitlig, and high-performance networks.
Depending on management types, S1700 series switches are classified into unmanaged switches, webbhanterade switchar, och fullt hanterade switchar.
• Unmanaged switches are plug-and-play and do not require installation of any software. They have no configuration options and do not need subsequent management.
• Web-managed switches can be managed and maintained through the web browser. They are easy to operate and have user-friendly Graphic User Interfaces (GUIs).
• Fully-managed switches support various management and maintenance methods, such as web, SNMP, command line interface (supported by S1720GW-E, S1720GWR-E, and S1720X-E). They have user-friendly GUIs.

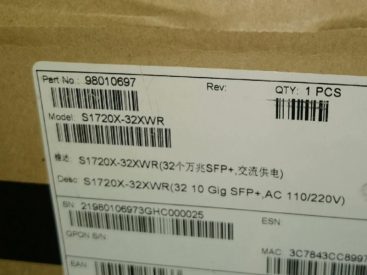

Huawei S1720X-32XWR Switch Product Pictures
Huawei S1720X-32XWR Switch Product Specifications
| Produktmodell | S1720X-16XWR | S1720X-32XWR |
| Enhetshantering | Nätverkshantering av webbsystem DHCP-klient Enknappsrestaurering Notera: You can upgrade the web-managed S1720 model to the web/SNMP-managed model by purchasing a license |
|
| Växlingskapacitet | 680 Gbit/s | 680 Gbit/s |
| Vidarebefordran prestanda | 240 Mps | 252 Mps |
| Fasta portar | 16 x 10G Base-X optiska portar | 32 x 10 GBase-X optical ports |
| Notera: These ports can be used for both upstream and downstream transmission. | Notera: These ports can be used for both upstream and downstream transmission. | |
| VLAN-funktioner | 256 VLAN (S1720 Series: 4K) Tillgångsport Trunk port Hybridport Management VLAN Röst VLAN |
|
| IP-routing | IPv4 och IPv6 statisk routing | |
| Device Maintenance | System-logg Ping Virtuell kabeltest (VCT) Link Layer Discovery Protocol (LLDP) |
|
Huawei S1720X-32XWR Switch Product Features
- S1720-serien webhanterade och helt hanterade switchar stöder förbättrat Media Delivery Index (eMDI). S1720 fungerar som en övervakningsnod för att regelbundet samla in och rapportera eMDI-feldata till eSight, och sedan lokaliserar eSight snabbt kvalitetsfel för videotjänster baserat på övervakningsresultat från flera noder.
- S1720 series web-managed and fully-manged switches provide telemetry technology to collect device data in real time and send the data to Huawei campus network analyzer CampusInsight. CampusInsight analyserar nätverksdata baserat på den intelligenta felidentifieringsalgoritmen, visar exakt nätverksstatus i realtid, effektivt avgränsar och lokaliserar fel i tid, and identifies network problems that affect user experience, exakt garanterar användarupplevelsen.
- S1720 series web-managed and fully-manged switches support Enhanced Media Delivery Index(eMDI). It functions as a monitoring node to periodically collect and report eMDI fault data to eSight, och sedan lokaliserar eSight snabbt kvalitetsfel för videotjänster baserat på övervakningsresultat från flera noder. The device can also report eMDI fault data to the campus network analyzer CampusInsight for intelligent diagnosis of video services.
Huawei S1720X-32XWR Switch and More Models
S1700-16G (16 Ethernet 10/100/1000 hamnar, AC 110/220V)
S1700-24-AC (24 Ethernet 10/100 hamnar, AC 110/220V)
S1724G-AC (24 Ethernet 10/100/1000 hamnar, AC 110/220V)
S1700-24GR (24 Ethernet 10/100/1000 hamnar, AC 110/220V)
S1700-52R-2T2P-AC (48 Ethernet 10/100 hamnar, 2 Ethernet 10/100/1000 hamnar och 2 Spelning SFP, AC 110/220V)
S1700-52GR-4X (48 Ethernet 10/100/1000 hamnar, 4 10 Spelning SFP+, AC 110/220V)
S1720-10GW-2P (8 Ethernet 10/100/1000 hamnar, 2 Spelning SFP, AC 110/220V)
S1720-10GW-PWR-2P (8 Ethernet 10/100/1000 PoE+-portar, 2 Spelning SFP, AC 110/220V)
S1720-28GWR-4P (24 Ethernet 10/100/1000 hamnar, 4 Spelning SFP, AC 110/220V)
S1720-28GWR-4X (24 Ethernet 10/100/1000 hamnar, 4 10 Spelning SFP+, AC 110/220V)
S1720-28GWR-PWR-4P (24 Ethernet 10/100/1000 PoE+-portar, 4 Spelning SFP, 370W PoE AC 110/220V)
S1720-28GWR-PWR-4X (24 Ethernet 10/100/1000 PoE+-portar, 4 10 Spelning SFP+, 370W PoE AC 110/220V)
S1720-52GWR-4P (48 Ethernet 10/100/1000 hamnar, 4 Spelning SFP, AC 110/220V)
S1720-52GWR-4X (48 Ethernet 10/100/1000 hamnar, 4 10 Spelning SFP+, AC 110/220V)
S1720-52GWR-PWR-4P (48 Ethernet 10/100/1000 PoE+-portar, 4 Spelning SFP, 370W PoE AC 110/220V)
S1720-52GWR-PWR-4X (48 Ethernet 10/100/1000 PoE+-portar, 4 10 Spelning SFP+, 370W PoE AC 110/220V)
S1720-28GWR-PWR-4TP (24 Ethernet 10/100/1000, 2 Gig SFP och 2 dubbla syften 10/100/1000 eller SFP, 8 portar PoE+, 124W PoE AC)
Huawei S1720X-32XWR Switch Product Applications
