Beskrivning
Huawei NetEngine 8000 M1A Router is a high-end Ethernet network router based on the VRP routing platform and focused on the access, aggregation and transmission of metro Ethernet services.
Huawei NetEngine 8000 M1A Router Product Overview
NetEngine 8000 M1A is a high-density compact router designed for the cloud era. It’s featured for its 1U compact size, 220 mm depth, and supports up to 176G port capacity. The compact design saves precious space resources. Dessutom, the router supports flexible service access of 10GE and GE (optical and electrical ports) and supports features such as SRv6, EVPN, Port Slicing , Telemetri, and 1588v2 high-precision clock, which is the best choice for multi-service high-density bearer in the future cloud era.

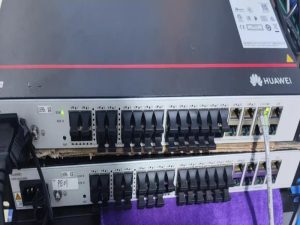

Huawei NetEngine 8000 M1A Router Product Pictures
Huawei NetEngine 8000 M1A Router Product Specifications
| Parametrar | NetEngine 8000 M1A | NetEngine 8000 M1C | NetEngine 8000 M1D-B | NetEngine 8000 F1A | NetEngine 8000 F8 |
| Växlingskapacitet | 352 Gbit/s | 344 Gbit/s | 368 Gbps | 2.4 Tbit/s | 4 Tbps |
| Vidarebefordran prestanda | 72 Mps | 72 Mps | 276 Mps | 453 Mps | 906 Mps |
| Maximal kortkapacitet | Routern med fast konfiguration stöder inte flexibla kort | Routern med fast konfiguration stöder inte flexibla kort | Router med fast konfiguration | Routern med fast konfiguration stöder inte flexibla kort | 400G, upp till 800G |
| Kapacitetstäthet (G/U) | 176 | 172 | 184 | 1200 | 492 |
| Huvudstyrkort | Routern med fast konfiguration stöder inte flexibla kort | Routern med fast konfiguration stöder inte flexibla kort | Router med fast konfiguration | Routern med fast konfiguration stöder inte flexibla kort | 1:01 |
| SFU | Routern med fast konfiguration stöder inte flexibla kort | Routern med fast konfiguration stöder inte flexibla kort | Router med fast konfiguration | Routern med fast konfiguration stöder inte flexibla kort | 1:01 |
| Linjekort | Routern med fast konfiguration stöder inte flexibla kort | Routern med fast konfiguration stöder inte flexibla kort | Routern med fast konfiguration stöder inte flexibla kort | Routern med fast konfiguration stöder inte flexibla kort | 8 |
| Strömmodul | 2, 1+1 (DC) | 2, 1+1 | 2, 1+1 | 2, 1+1 | DC: upp till 5+1; [2T bunt] 2+1; |
| AC: upp till 3+3; [2T bunt] 2+2; | |||||
| Fläktmodul | 3 (integrerad) | 2 (integrerad) | 3, 2+1 | 4, 3+1 | 1+1 upp till 2+1 |
| Mått (H x B x D) | 44.45 x 442 x 220 mm (1 U) | 44.45 x 442 x 220 mm (1 U) | 44.5 mm (1U) x 442 mm x 220 mm | 43.6 x 442 x 420 mm (1 U) | 575 mm(13U) x 442 mm x 482.8 mm |
| Typisk strömförbrukning | 75 W | 89.21 W | 110 W (uppskattas) | 350 W | 1604 W (uppskattas) |
| Vikt i full konfiguration | 3.4 kg | 3.9 kg | 4.1 kg (uppskattas) | 7.25 kg | 2T bunt: 120.5 kg |
Huawei NetEngine 8000 M1A Router Product Features
- Compact Size High-density GE Ports
1 U，220mm，176Gbps Max 16*10GE/32*GE
- Programmable Protocol Simplification
SRv6/EVPN, unified protocols Programmable NP, smidig uppgradering
- Grön industriell design
80 W, low power consumption -40℃～65℃, industriell bred temperaturdesign
Huawei NetEngine 8000 M1A Router Product Ordering Info
| BOM | Beställningsnamn | Beskrivning |
| 02353DAF | CR8PM1ABASC0 | NetEngine 8000 M1A Basic Configuration |
| (Includes M1A Chassis, 1*IPU,Fast | ||
| Gränssnitt(4*10GE + 12*GE),2*Likström,without | ||
| Software and Document) | ||
| BOM | Beställningsnamn | Beskrivning |
| 02353DAG | CR8PM1ABASC1 | NetEngine 8000 M1A Basic Configuration |
| (Includes M1A Chassis,1*IPU, Fast | ||
| Gränssnitt(4*10GE+12*GE),1*AC Power,without | ||
| Software and Document) | ||
| 02353DAH | CR8PM1ABASC2 | NetEngine 8000 M1A Basic |
| Configuration(Includes M1A Chassis,1*IPU, Fast | ||
| Gränssnitt(6*10GE+26*GE),2*Likström,without | ||
| Software and Document) | ||
| 02353EGG | CR8PM1ABASC4 | NetEngine 8000 M1A Basic |
| Configuration(Includes M1A Chassis, 1*IPU,Fast | ||
| Gränssnitt(6*10GE+26*GE),1*AC Power,without | ||
| Software and Document) | ||
| 02353JWJ | CR8PM1ABASC6 | NetEngine 8000 M1A Basic |
| Configuration(Includes M1A Chassis,1*IPU, Fast | ||
| Gränssnitt(16*10GE+16*GE),2*Likström,without | ||
| Software and Document) | ||
| 02353JVU | CR8PM1ABASC8 | NetEngine 8000 M1A Basic |
| Configuration(Includes M1A Chassis, 1*IPU,Fast | ||
| Gränssnitt(16*10GE+16*GE),1*AC Power,without | ||
| Software and Document) | ||
| 88036KAT | CR8SM1U086C0 | NetEngine 8000 M1A basic configuration upgrade package (upgrade from 52G to 86G) |
| 88036KAW | CR8SM1U176C0 | NetEngine 8000 M1A basic configuration upgrade package (upgrade from 86G to 176G) |
Huawei NetEngine 8000 M1A Router Product Applications
