Beskrivning
Huawei NE40E-X16 Router is a high-end network product developed by Huawei. NE40E Series includes the NE40E-X3, NE40E-X8, NE40E-X16, NE40E-X3A, NE40E-X8A and NE40E-X16A.
| Växlingskapacitet | Vidarebefordran prestanda | MPU Slots | SFU Slots | LPU Slots | Mått (H x B x D) | Maximal strömförbrukning | ||
| 12.58 Tbit/s | 5760 Mps | 2 | 4 | 16 | 1420 x 442 x 650 mm (32 U) | 4610 W (120G) | 7970 W (240G) | |
Huawei NE40E-X16 Router Product Overview
Huawei NE40E-X16 Router is deployed at core nodes on enterprise-wide area networks (WANs), access nodes on large-scale enterprise networks, interconnection and aggregation nodes on campus networks, and edge nodes on large-scale Internet Data Center (IDC) networks. The NE20E, NE40E, and NE5000E can work together to provide a complete hierarchical IP network solution.
NetEngine40E-serien inkluderar
NetEngine40E-X16A/X16,
NetEngine40E-X8A/X8,
NetEngine40E-X3A/X3,
NetEngine40E-M8A/M16A,
NetEngine40E-F1A-14H24Q-modeller för att tillfredsställa krav på nätverk i olika skalor.

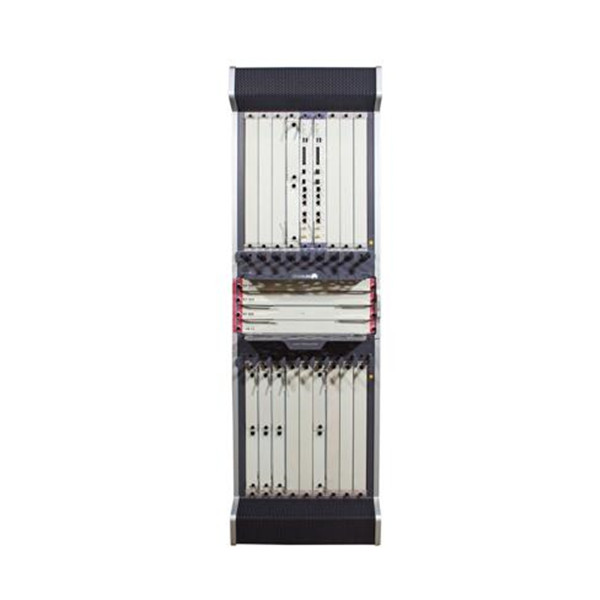

Huawei NE40E-X16 Router Product Pictures
Huawei NE40E-X16 Router Product Specifications
| Parametrar | NetEngine40E-X16A | NetEngine40E-X16 | NetEngine40E-X8A | NetEngine40E-X8 | NetEngine40E-X3A | NetEngine40E-X3 |
| Växlingskapacitet | 81.92 Tbit/s | 12.58 Tbit/s | 51.2 Tbit/s | 7.08 Tbit/s | 2.76 Tbit/s | 1.08 Tbit/s |
| Vidarebefordran prestanda | 14,464 Mps | 5760 Mps | 7232 Mps | 2880 Mps | 1071 Mps | 540 Mps |
| MPU Slots | 2 | 2 | 2 | 2 | 2 | 2 |
| SFU Slots | 4 | 4 | 4 | 3 | / | / |
| LPU Slots | 16 | 16 | 8 | 8 | 3 | 3 |
| Mått (H x B x D) | 1778 x 442 x 650 mm (40 U) | 1420 x 442 x 650 mm (32 U) | 930 x 442 x 650 mm (21 U) | 620 x 442 x 650 mm (14 U) | 264 x 442 x 664 mm (6 U) | 175 x 442 x 650 mm (DC 4 U) |
| 220 x 442 x 650 mm (AC 5 U) | ||||||
| Maximal strömförbrukning | 9040 W (480G) | 4610 W (120G) | 4770 W (480G) | 2340 W (120G) | 600 W (200G) | 920 W (DC) |
| 7970 W (240G) | 4100 W (240G) | 1070 W (AC) | ||||
| Vikt i full konfiguration | 356 kg (480G) | 246 kg (120G) | 186 kg (480G) | 119 kg (120G) | 75 kg (200G) | 42 kg (DC) |
| 279 kg (240G) | 136 kg (240G) | 52 kg (AC) |
Huawei NE40E-X16 Router Product Features
- Support for 1T routing line cards in each slot, with excellent compatibility with currently used line cards to protect carriers’ investments to the largest extent.
- Line speed forwarding capabilities, industry-leading reliability, excellent scalability, a well-designed quality of service (QoS) mechanism, and strong service processing capabilities.
- Powerful service access and aggregation capabilities and various features, such as Layer 2 virtual private network (L2VPN), L3VPN, multicast, multicast VPN (MVPN), and Multiprotocol Label Switching – Traffic Engineering (MPLS-TE).
- Various service features, such as IP Security (IPSec), Network Address Translation (NAT), and NetStream.
- Support for IPv6 and smooth transition from IPv4 to IPv6.
Huawei NE40E-X16 Router Ordering Info
| BOM-nummer | Beställningsnamn | Beskrivning | Anmärkningar |
| 2359180 | CR5P16BASD74 | NE40E-X16 Basic Configuration (Inklusive | – |
| NE40E-X16 Chassis, 2 MPU:er, 4 SFU:er(200G), 8 DC | |||
| Kraft, utan programavgift och dokument) | |||
| 2359181 | CR5P16BASA74 | NE40E-X16 Basic Configuration (Inklusive | – |
| NE40E-X16 Chassis, 2 MPU:er, 4 SFU:er(200G), 8 AC | |||
| Kraft, utan programavgift och dokument) | |||
| 2351931 | CR5B0BKP1670 | NE40E-X16 Integrated Chassis Components | Inkluderar: chassis and fan box. Not includes: Likström. |
| (Inklusive 8 Likström) | |||
| 3057244 | CR5D0MPUB571 | Huvudenhet B5(16G Minne) | Recommended quantity: två för varje chassi. |
| 3053547 | CR5DSFUIE07B | 200Gbps switch tygenhet B(SFUI-200-B) | – |
| 2359471 | CR5P16BASA7L | NE40E-X16 Basic Configuration (Inklusive | – |
| NE40E-X16 Chassis, 2 MPU:er, 4 SFU:er(200G), 8 AC | |||
| Kraft(Power Cords Cable), without Software | |||
| Charge and Document) | |||
| 02351AFK | CR5P16BASA7H | NE40E-X16 Basic Configuration (Inklusive | 16G Minne |
| NE40E-X16 Chassis, 2 MPU:er, 4 SFU:er(200G), 8 AC | |||
| Kraft(Power Cords Cable), without Software | |||
| Charge and Document) |
Huawei NE40E-X16 Router Product Applications
