Beskrivning
Huawei MPWC Power Module is DC Power Module for Huawei MA5608T.
MPWC Double -48 v dc input Support dual power protection
MPWD 220 v / 110 v ac input Support power supply alarm fault, support fuse alarm
Huawei MPWC Power Module Product Overview
MPWC board is a dual DC power supply board that is used to introduce a -48V DC power supply to power the device. Huawei MA5608T is Optical Line Terminal (OLT), stödja upp till 2 service slots and can also support max 4096 subscribers (GPON). MA5608T has MCUD/MCUD1 Main Control Board available for choice, and one power slot redundancy for AC or DC power input. Total of 8 bundle line. Dessutom, YCICT also offers more bundle line, to meet the different requirements.

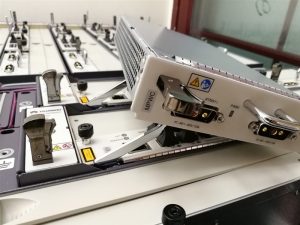

Huawei MPWC Power Module Product Pictures
Huawei MPWC Power Module Product Specifications
| varumärke | Huawei |
| Modell | MPWC |
| Hamn | 3V3 power port |
| Fungera | Leads in the -48 V strömförsörjning. |
| Connection | Use a -48 V feeder cable to connect this port to the power distribution unit |
| (PDU). | |
| Inspänning: -38.4 V till -72 DC. | |
| Energiförbrukning | Statisk: 2.5 W |
| Maximal: 2.5 W | |
| Mått (mm) | 35.56 mm x 251.70 mm x 132.10 mm |
Huawei MPWC Power Module and More Service Boards
| System L2 packet forwarding rate | Mcud / mcud1: 190Mps(Active/Standby mode), 380Mps(Load-sharing mode) |
| Control board switching capacity | Mcud / mcud1: 128Gbit/s(Active/Standby mode),256Gbit/s(Load-sharing mode) |
| Outband Management Ethernet Port (RJ-45) | MCUD/MCUD1 |
| Lokal seriestort (Trösta) | Mcud / mcud1 |
| Geoptisk hamn | MCUD1: 2 Ports Board |
| MCUD:4 Ports Board | |
| ETHB/SPUF: 8 Ports Board | |
| 10Geoptisk hamn | MCUD1: 2 Ports Board |
| Spuf: 8 Ports Board | |
| E1 -port | HITTA: 16 Ports Board |
| STM-1 uppströms optisk port | HITTA: 2 Ports Board |
| GPON-port | Gpbd/gpbh: 8 Ports Board |
| GPFD: 16 Ports Board | |
| 10G GPon | Xgbc: 4 Ports Board |
| XGBD: 8 Ports Board | |
| P2p ge optisk port | OPGD/OPGE: Enfiberbi-riktning: 48 Ports Board, Tvåfiberbi-riktning: 24 Ports Board |
| P2P FE Optical Port | OPGD/OPGE: Enfiberbi-riktning: 48 Ports Board, Tvåfiberbi-riktning: 24 Ports Board |
| Ethernet Optical Port | ETHB: 8 Ports Board |
| E1 -port | H802edtb: 16 Ports Board |
| ADSL2+ | Adpd/adpm/adpe : 64 Ports Board |
| VDSL2 | Vdrd : 24 Ports Board |
| VDMF/VCMM : 48 Ports Board | |
| VDPM/VDQM/VDPE/VDPD/VCPE : 64 Ports Board | |
| EFM SHDSL | Skit : 16 Ports Board |
| SHGM : 32 Ports Board | |
| TDM SHDSL | H802edtb: 16 Ports Board |
| GRÖKOR | Aspb : 64 Ports Board |
| ADSL2+&GRÖKOR | Kom : 48 Ports Board |
| VDSL2&GRÖKOR | Cvme : 48 Ports Board |
| CCPE : 64 Ports Board | |
| ISDN BH | DSRD/DSRE :32 Ports Board |
Huawei MPWC Power Module Product Features
- Support 2-channel -48V DC power input.
- Support power supply port filtering and protection.
- Support input power detection and fault detection.
- Support the reporting of protection alarms.
Huawei MPWC Power Module Product Applications
