HG6145F FTTH

HG6544C FTTH
SKU: HG6145F FTTH Kategori: Taggar: ,

Beskrivning

HG6145F FTTH is Optical Terminal Unit with 4 GE Port+1 POTS Port+2 USB Ports WiFi2.4&5GHz WIFI 6

HG6145F FTTH Product Overview

HG6145F is an intelligent GPON Wi-Fi 6 routing-type ONT. The modem uses the GPON technology to realize ultra-broadband access, high performance and wide coverage. Dessutom, HG6145F supports dual-band Wi-Fi 6. The high wired and wireless bandwidth ensures the user experience of voice, data and HD video services, and has future-oriented service support capability.

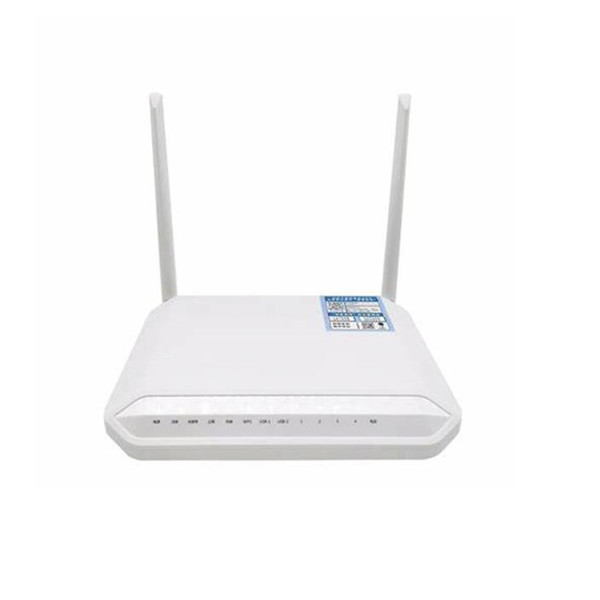

HG6145F FTTH Product Pictures

Fiberhome HG6145F FTTH price and specs ycictFiberhome HG6145F FTTH ONT WIFI 6 YCICT

Fiberhome HG6145F FTTH wifi 6 ont 4ge and one pots ycictFiberhome HG6145F price and specs wifi 6 new and original ycict

HG6145F FTTH Product Specifictions

Mått (H x B x D) 41 mm x 204 mm x 149 mm
Vikt Handla om 350 g
Driftstemperatur 0°C till 45 °C
Driftfuktighet 10% till 90% (icke-kondenserande)
Hamnar 4*GE + 1*GRÖKOR + WiFi + 2*USB
System strömförsörjning DC 12 V, 1.5 A
Power Input Adapter AC 100 to 240V, 50 till 60 Hz
Statisk strömförbrukning 7 W
Maximal strömförbrukning 17 W
Indikatorer Power/PON/LOS/Internet/WLAN/WPS/USB/LAN/Phon

Fiberhome HG6145F FTTH Product Features

  • Support GEM and Ethernet encapsulation over GEM
  • Flexible mapping between GEM and TCONT
  • Bidirectional FEC and downlink FEC performance statistics
  • Support standard VLAN and IEEE 802.1Q Ethernet port-based VLAN tags and tag removal
  • 1:1 VLAN, N:1 VLAN, or transparent VLAN transmission up to 4k VLAN
  • Support learning MAC addresses up to 1k
  • IEEE 802.11 a/b/g/n/ac/ax Dual band: 2.4G (2*2 MIMO) och 5G (2*2 MIMO) 8 SSID (4+4)
  • Support open system, shared key, WPA, WPA2, WPA-PSK, WPA2-PSK and WPS authentications
  • Support automatic selection and manual configuration of channels
  • OMCI/UI Web/TR069
  • PPPoE/DHCP simulation tests
  • Support automatic service provisioning, management and software update remotely based on OMCI/TR-069 alarm synchronization
  • Triple Play Service: HIS, IPTV, Röst

HG6145F FTTH and More Models

HG6543C GPON 2*GE+2*FE+1*POTS+WiFi 2,4GHz(11n2*2)

HG6243C GPON 4*GE+2*POTS+WiFi 2,4GHz(11n2*2)

HG6245D GPON 4*GE+2*POTS+WiFi 2,4GHz(11n2*2) 5GHz(11ac2*2)

HG6145D GPON 4*GE+1*POTS+WiFi 2,4GHz(11n2*2) 5GHz(11ac2*2)

HG6143D GPON 4*GE+1*POTS+WiFi 2,4GHz(11n2*2) 5GHz(11ac2*2)

HG6245P GPON 4*GE+2*POTS+WiFi 2,4GHz(11n2*2) 5GHz(11ac3*3)

HG6244C GPON 4*GE+2*POTS+1*CATV+WiFi(2.4GHz 11n2*2)

HG6544C GPON 2*GE+2*FE+1*POTS+1*CATV+WiFi(2.4GHz 11n2*2)

HG6249A GPON 4*GE+2*POTS+1*CATV

HG6145F FTTH Product Applications

Fiberhome IBAS 110A SDH application ycict
