GYTC8S Figure 8 Cable is Self-supporting GYTC8S 2-24 core fiber optic complying with Standard YD/T 1155-2001 as well as IEC 60794-1.
GYTC8S Figure 8 Cable Product Overview
It is a typical self supporting outdoor fiber optic cable with features of moisture resistance and crush resistance suitable for aerial application. The structure of the GYTC8S fiber optic cable is a 250μm optical fiber sheathed into a loose tube made of high-modulus material, which is filled with a waterproof compound. The center of the cable core is a metal reinforcement core (which can also be non-metallic, such as FRP, etc.), and the loose tube (and filler rope) is twisted around the center reinforcement core to form a compact round cable core. In the form of longitudinal wrapping, a layer of plastic-coated aluminum strip (APL) is added to the sheath outside the cable core, and finally the polyethylene sheath is extruded with the steel strands to make its cross-section “8” shape.

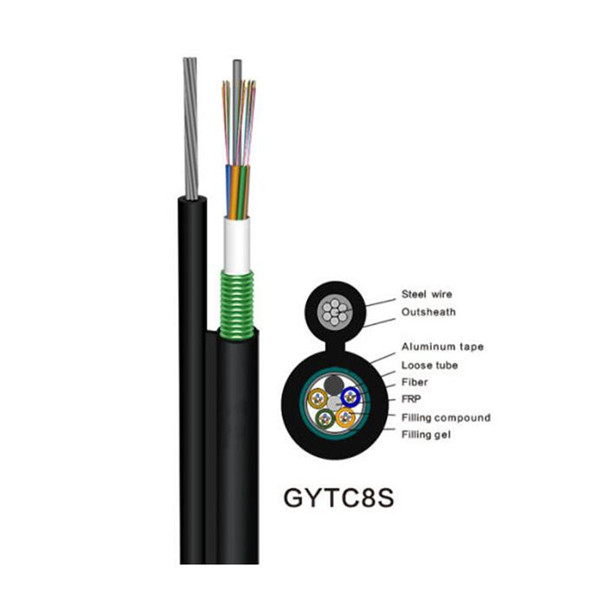

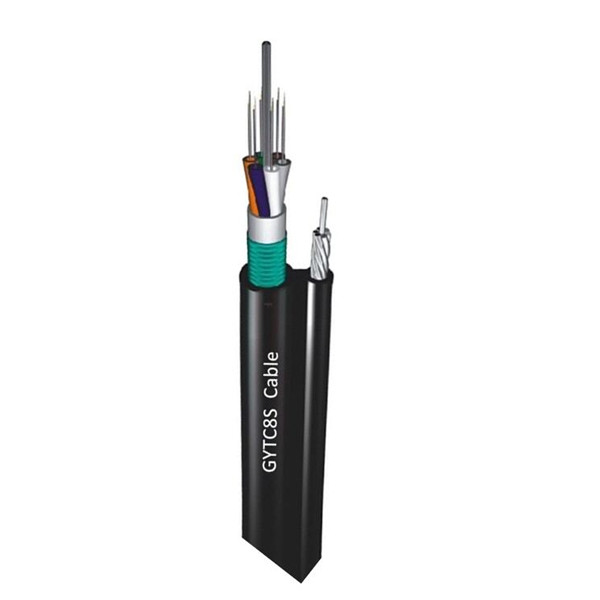

GYTC8S Figure 8 Cable Product Pictures
GYTC8S Figure 8 Cable Product Specifications
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Försvagning (+20℃) | @850nm | ≤3,0 dB/km | ≤3,0 dB/km | ||
| @1300nm | ≤1,0 dB/km | ≤1,0 dB/km | |||
| @1310nm | ≤0,36 dB/km | ≤0,40 dB/km | |||
| @1550nm | ≤0,22 dB/km | ≤0,23dB/km | |||
| Bandbredd (Klass A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerisk bländare | 0.200±0,015 NA | 0.275±0,015 NA | |||
| Kabelavskärningsvåglängd | ≤1260nm | ≤1480nm | |||
| Cable Count | Out sheath Diameter (MM) |
Vikt (kg) | Minimum allowable Tensile Strength(N) Short term Long term | Minimum allowable Crush Load (N/100nm) Short term Long term | Minimum Bending Radius(MM) Short term Long term | Lagring Temperatur (°C) |
|||
| 6 | 3.0*9.8 | 54 | 1000 | 200 | 1000 | 200 | 20D | 10D | 20 |
| 12 | 3.0*9.8 | 54 | 1000 | 200 | 1000 | 200 | 20D | 10D | 20 |
| 24 | 7.0*14.5 | 210 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | 20 |
| 36 | 7.0*14.5 | 210 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | 20 |
| 42 | 7.0*14.5 | 210 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | 20 |
| 48 | 7.0*15.5 | 210 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | 20 |
| 72 | 7.0*15.5 | 245 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | 20 |
| 144 | 7.0*15.5 | 285 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | 20 |
GYTC8S Figure 8 Cable Product Features
- Steel wire stranded wire has extremely high tensile strength, which is convenient for self-supporting overhead laying and reduces installation costs
- It has good mechanical properties and temperature characteristics
- The loose tube material itself has good water resistance and high strength
- The tube is filled with special ointment, which provides critical protection for the optical fiber
- The following measures are adopted to ensure the waterproof performance of the optical cable
- The loose tube is filled with special waterproof compound
- Full section filling of cable core
- Double-sided plastic coated steel strip (PSP) moisture-proof layer
