GYTA53-134~144Xn Optic Cable is Stranded Loose Tube Armored Cable
GYTA53-134~144Xn Optic Cable Product Overview
The structure of GYTA53 optical cable is to insert 250 µ m optical fiber into a loose tube made of high modulus material, and fill the loose tube with waterproof compound. The center of the cable core is a metal reinforced core, and for certain numbers of optical cables, a layer of polyethylene (PE) needs to be extruded outside the metal reinforced core. The loose sleeve and filling rope are twisted around the center to strengthen the core and form a compact and circular cable core. The gaps inside the cable core are filled with water blocking fillers. After being longitudinally wrapped with plastic coated aluminum strip (APL), a layer of polyethylene inner sheath is extruded, and after being longitudinally wrapped with double-sided plastic coated steel strip (PSP), a polyethylene outer sheath is extruded to form the cable.

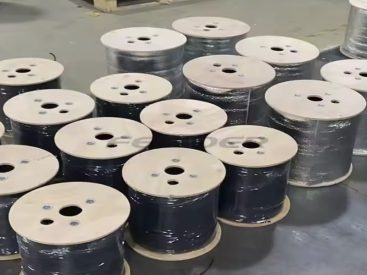

GYTA53-134~144Xn Optic Cable Product Pictures
GYTA53-134~144Xn Optic Cable Product Specifications
| Fiber Optic Cable Model (in 2-fiber increments) | Number of fibers | Number of casings | Number of infill ropes | Reference cable weight (kg/km） |
Tensile force allowed Long-term/short-term (N) |
Allowable squashing force Long-term/short-term (N/100mm) |
Bend radius Static/Dynamic (mm) |
|
| GYTA53-2~6Xn | 2~6 | 1 | 5 | 177 | 1000/3000 | 1000/3000 | 12.5D/25D | |
| GYTA53-8~12Xn | 8~ 12 | 2 | 4 | 177 | ||||
| GYTA53-14~18Xn | 14~18 | 3 | 3 | 177 | ||||
| GYTA53-20~24Xn | 20~ 24 | 4 | 2 | 177 | ||||
| GYTA53-26~30Xn | 26~30 | 5 | 1 | 177 | ||||
| GYTA53-32~36Xn | 32~36 | 6 | 0 | 177 | ||||
| GYTA53-38~48Xn | 38~48 | 4 | 1 | 194 | ||||
| GYTA53-50~60Xn | 50~60 | 5 | 0 | 194 | ||||
| GYTA53-62~72Xn | 62~72 | 6 | 0 | 204 | ||||
| GYTA53-74~84Xn | 74~84 | 7 | 1 | 239 | ||||
| GYTA53-86~96Xn | 86~96 | 8 | 0 | 239 | ||||
| GYTA53-98~108Xn | 98~108 | 9 | 1 | 275 | ||||
| GYTA53-110~120Xn | 110~120 | 10 | 0 | 275 | ||||
| GYTA53-122~132Xn | 122~132 | 11 | 1 | 312 | ||||
| GYTA53-134~144Xn | 134~144 | 12 | 0 | 312 | ||||
| GYTA53-146~216Xn | 146~216 | 13~18 | 5~0 | 312 | ||||
| Fiber type | Försvagning | Bandbredd | Numerisk bländare | Fiber Optic cable cut-off wavelength | ||||
| （+20℃） | @850nm | @1300nm | ||||||
| @850nm | @1300nm | @1310nm | @1550nm | |||||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0.40dB/km | ≤0,23dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.0dB/km | ≤1.0dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125µm | ≤3.3dB/km | ≤1.0dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYTA53-134~144Xn Optic Cable Product Features
- Excellent mechanical properties and temperature characteristics;
- Loose tube material itself has good hydrolysis resistance and high strength;
- The tube is filled with special ointment to provide critical protection for the optical fiber;
- Good compression resistance and flexibility;
- Take the following measures to ensure the waterproof performance of the optical cable:
- Single steel wire center reinforcement core;
- Filling special waterproof compounds inside the loose tube;
- Complete cable core filling;
- Plastic coated aluminum strip (APL) moisture-proof layer;
- Double sided coated steel strip (PSP) improves the moisture resistance of optical cables;
- Good water blocking material to prevent longitudinal water seepage in optical cables;
GYTA53-134~144Xn Optic Cable Product and More Optic Cables
TVÅ FRP antennfiberoptisk kabel (MITT LIV)
Strandad lös rör utan pansarkabel (GYTA)
Strandad lös rör ljusbepansrad kabel (GYTS)
Strandad lös rörarmerad kabel (GYTY53)
Strandad lös rörarmerad kabel (GYTA53)
Icke-metallisk styrka, icke-bepansrad kabel (GYFTY)
Icke-metallisk styrka, icke-bepansrad kabel(TILLSAMMANS)
Icke-metallisk styrka Member pansarkabel（GYFTY53）
Icke-metallisk styrka Member pansarkabel（GYFTA53）
GYTA53-134~144Xn Optic Cable Product Applications
- Long-distance communication, inter-office communication
- It is especially suitable for occasions with high requirements for moisture-proof and rodent-proof

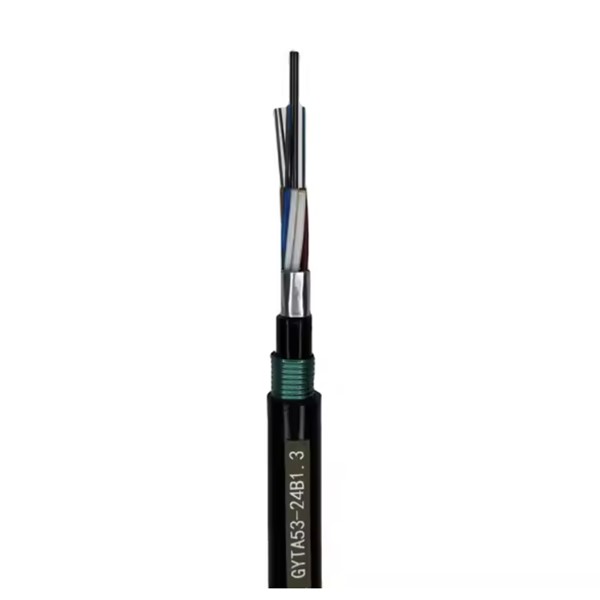

GYTA53-134~144Xn Optic Cable Product Structure
