GYDTS-144Xn Optic Cable is Loose sleeve stranded lightly armored optisk fiber ribbon cable
GYDTS-144Xn Optic Cable Product Overview
De structure av de GYDTS fiber optic cable är till insert 4, 6, 8, och 12 fiber strips into a loose tube made av hög–modulus material, och de loose tube är filled med a waterproof compound. jagn the center of the cable core is a metal reinforcing core, and feller some fiber optic cables, a layer of polyethylene (PE) is squeezed out of the metal reinforcing core. The loose tube and the filling rope are twisted around the central reinforcing core to form a compact and round core, and the gaps in the core are filled with water-blocking filler. Double–sided plastic–coated steel tape (PSP) är longitudinally wrapped och extruded into a polyethylene sheath till form a cable.

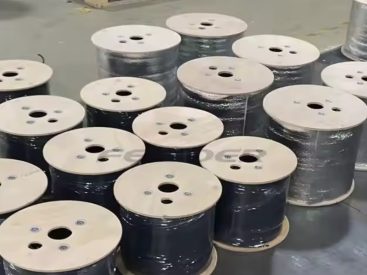

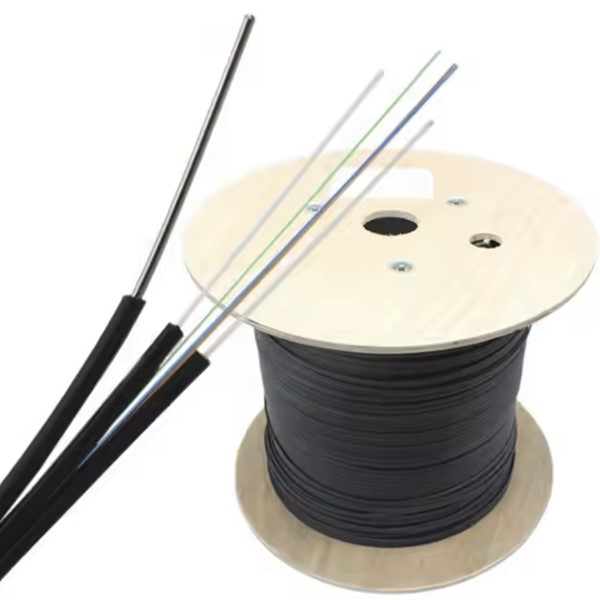

GYDTS-144Xn Optic Cable Product Pictures
GYDTS-144Xn Optic Cable Product Specifications
| Fiber optic cable model (in 2-fiber increments) |
Number of fibers | Number of casings | Number of infill ropes | Reference cable weight (kg/km) | Tensile force is allowed Long-term/short-term (N) |
Allowable squashing force Long-term/short-term (N/100mm) |
Bend radius Static/Dynamic (mm) |
|
| GYDTS-48Xn | 4×12 | 1 | 3 | 306 | 600/1500 | 300/1000 | 10D/20D | |
| GYDTS-96Xn | 8×12 | 2 | 2 | 306 | ||||
| GYDTS-144Xn | 12×12 | 3 | 1 | 306 | ||||
| GYDTS-216Xn | 18×12 | 4 | 0 | 306 | ||||
| GYDTS-288Xn | 24×12 | 4 | 0 | 338 | ||||
| GYDTS-360Xn | 30×12 | 5 | 0 | 338 | ||||
| GYDTS-432Xn | 36×12 | 6 | 0 | 447 | ||||
| Fiber type | Attenuation （+20℃） | Bandbredd | Numerical aperture | Fiber optic cable cut-off wavelength | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0.40dB/km | ≤0,23dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYDTS-144Xn Optic Cable Product Features
• 4, 6, 8, 12 fiber strips för flexible applikationer
• Very good mechanical and temperature sidroperties
• The loose tube material itself has good hydrolysis resistance and high strength
• The tube is filled with a special sidaste to sidrotect the optical fiber
• Specially designed tight cable structure to effectively sidrevent the casing from retracting
• Good compression resistance and softness
• The PE sheath has very good resistance to ultraviolet radiation
• The following measures are taken to ensure the waterproof siderformance of the cable:
– Single wire center reinforcing core
– The loose tube is filled with a special waterproofing compound
– Full core filling
– Double–sided plastic–coated steel tape (PSP) improves de moisture permeability av fiber optic cables

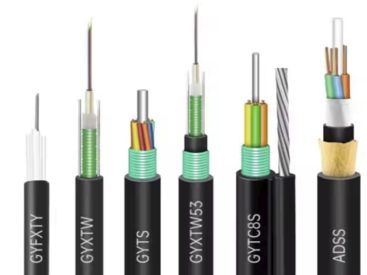

GYDTS-144Xn Optic Cable Product And More Optic Cables
Stranded loose jacket unarmoured fiber optic cable (GYDTA)
Stranded Loose Jacket Non-Metallic Reinforced Core Non-Armoured Flame Retardant Fiber Optic Cable (GYFTZY)
Loose sleeve stranded reinforced core armored flame retardant optical cable(GYTZA53)
Loose sleeve stranded non-metallic reinforced core armored flame retardant fiber optic cable (GYFTZA53)
Stranded Flame Retardant Fiber Optic Cable (GYTZS)
Stranded loose jacket non-armoured flame retardant fiber optic cable (GYTZA)
Stranded loose sleeve non-metallic reinforced core armored fiber optic cable (GYFTA53)
Stranded non-metallic reinforcing core plain armored fiber optic cable (GYFTY53)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (TILLSAMMANS)
Loose sleeve stranded non-metallic reinforced core optical cable (GYHTY)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (GYFTY)
Loose sleeve stranded single thin round steel wire armored fiber optic cable (GYTA53 33)
GYDTS-144Xn Optic Cable Product Applications
1. Telecom nätverk: GYDTS kommunikation fiber optic cable är widely used i information transmission av telecom nätverk, Inklusive röst, data, image och other information types.
2. Radio and television network: GYDTS communication optical fiber and cable can be used feller information transmission of radio and television network to achieve high-quality TV signal transmission and interactive multimedia applications.
3. jagndustrial control network: GYDTS communication optical fiber and cable is suitable feller information transmission of industrial control network, which can resist electromagnetic interference and harsh environment on industrial sites and ensure the stability and reliability of information transmission.
4. Smart city jagnternet of Things: GYDTS communication optical fiber and cable can be applied to the information transmission of smart city jagnternet of Things to realize intelligent management and services in various fields of the city.

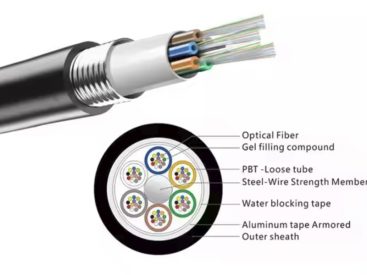

GYDTS-144Xn Optic Cable Product Structure
