Beskrivning
EG8045H FTTH is Optical Terminal Unit with 4GE + Wi-Fi + USB. This is a routing-type ONT used in the Huawei all-optical access solution.
EG8045H FTTH Product Overview
It provides 4 GE Ethernet ports, 1 USB port and 1 2.4G WiFi port using GPON technology to provide ultra-broadband access for users. Its high-performance forwarding supports Internet and HD video services and provides subscribers with ideal terminal solutions and future-oriented service support capabilities.

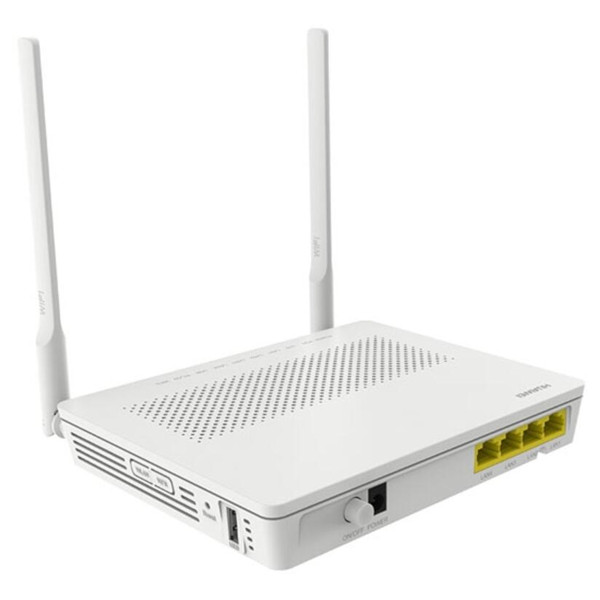

EG8045H FTH Product Pictures
EG8045H FTTH Specifications
| Modell | EG8045H |
| (L x W x H) | 176 mm x 138.5 mm x 28 mm (without an external antenna) |
| Vikt | Handla om 260 g |
| Driftstemperatur | 0°C till +40°C |
| Driftfuktighet | 5% RH till 95% RH (icke-kondenserande) |
| Strömadapteringång | 100–240 V AC, 50/60 Hz |
| System strömförsörjning | 11–14 V DC, 1 A |
| Statisk strömförbrukning | 6.5 W |
| Maximal strömförbrukning | 10.5 W |
| Hamnar | 4GE + Wi-Fi + USB |
| Indikatorer | POWER/PON/LOS/LAN/USB/WLAN/WPS |
EG8045H FTTH Features
GPON-port
Klass B+
Mottagarens känslighet: -27dBm
Våglängder: US 1310nm, DS 1490nm
Våglängdsblockerande filter (WBF)
The flexible mapping between GEM Port and TCONT
GPON: consistent with the SN or password
authentication defined in G.984.3
Dubbelriktad FEC
SR-DBA och NSR-DBA
Ethernet-port
Ethernet port-based VLAN tags
and tag removal
1:1 VLAN, N:1 VLAN, or VLAN
transparent transmission
QinQ VLAN
Limit on the number of learned
MAC-adresser
MAC-adressinlärning
WLAN
IEEE 802.11b/g/n
2 x 2 MIMO
Antennförstärkning: 5 dBi
WMM
Multiple SSIDs
WPS
Luftgränssnittshastighet:
300 Mbps
USB-port
USB 2.0
FTP-based
network storage
EG8045H FTTH and more Models
| Bro ONT | FE | GE | GRÖKOR | WiFi | USB | några |
| EG8010H | – | 1 | – | – | – | – |
| EG8040H | – | 4 | – | – | – | – |
| EG8240H | – | 4 | 2 | – | – | – |
| EG8242H | – | 4 | 2 | – | – | 1 |
| Gateway ONT | ||||||
| EG8120L | 1 | 1 | – | – | – | – |
| EG8045H | – | 4 | – | b / g / n | 1 | – |
| EG8245H | – | 4 | 2 | b / g / n | 1 | – |
| EG8141A5 | 3 | 1 | 1 | a / b / g / n | 1 | – |
| EG8145V5 | – | 4 | 1 | a / b / g / n / ac | 1 | – |
| HG8245D | – | 4 | 2 | a / b / g / n | 1 | – |
| EG8247H | – | 4 | 2 | b / g / n | 1 | 1 |
| HG8245Q | – | 4 | 2 | a / b / g / n / ac | 2 | – |
| PoE ONT | 30W per port, 60 / 120W per system (4/8 hamn) | |||||
| EG8040P | 4 | – | – | – | – | |
| EG8080P | 8 | – | – | – | – | |
| EG8240P | 4 | 2 | – | – | – | |
| EG8280P | 8 | 2 | – | – | – | |
| 10G XPON ONT | 10GE | GE | GRÖKOR | WiFi | USB | |
| HN8245Q | – | 4 | 2 | a / b / g / n / ac | 2 | |
| HN8055Q | 1 | 4 | 2 | a / b / g / n / ac | 2 | |
EG8045H FTTH Product Applications
