Name: ZXHN F660 V8.0 FTTH
SKU: ZXHN F660 V8.0 FTTH
Price: 17.82 USD
Availability: InStock

ZXHN F660 V8.0 FTTH

SKU: ZXHN F660 V8.0 FTTH Qaybta: FTTH Tags: Helitaanka Shabakadda, FTTH

Sharaxaada
Weydiin
Lifaaqa

Sharaxaada

ZXHN F660 V8.0 FTTH is GPON optical terminal unit with 1GE + 3FE + 1DHISOOYINKA + WIFI + 1Dekadaha USB Ingiriisi Firmware.

Qaabka No.	Enternet Ports	Codka	Router (PPPoE)	Wifi	Firmware Language
ZXHN F660 V8.0	1GE+3FE	1pots	Haa	Haa	Ingiriis

ZXHN F660 V8.0 FTTH Product Overview

F660 V8.0 is a GPON Optical Network Terminal designed for HGU (Home Gateway Unit) used in FTTH scenario, which supports L3 function to help subscriber construct intelligent home network.ZTE F660 provides an GPON interface to connect OLT with an ODN. It offers a new choice for operators to deliver FTTH access.

POL (Passive Optical LAN) is a new type of LAN networking solution based on PON technology, which combines different services such as data, cod, muuqaal, iyo gelitaanka wireless-ka ee hal shabakad fiber optic ah, dhaxlida shabakada PON Iyada oo faa'iidooyinka bandwidth ballaaran, kalsoonida sare, daahitaan hoose, flatness, hawlgelin fudud, iyo maamul fudud, waa doorashada ugu fiican ee xaaladaha kala duwan sida jardiinooyinka smart, dhismayaal ganacsi, ganacsiyada, xarumaha, hoteelada, dawladaha, iyo maaliyadda.

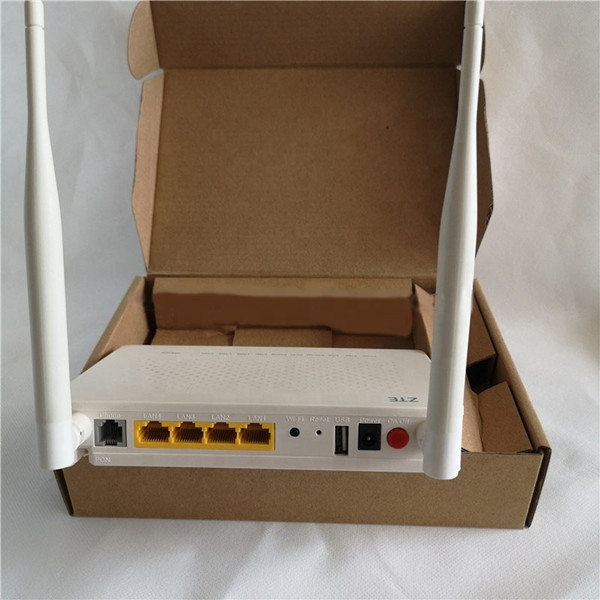

Sawirada Alaabta ZXHN F660 V8.0 FTTH

ZTE ZXHN F660V8.0 FTTH YCICT ZTE ZXHN F660V8.0 QIIMAHA FTTH IYO QIIMAYNTA ZTE FTTH

ZXHN F660 V8.0 FTTH Faahfaahinta Alaabta

Qaabka	F660V8.0
Dekedda indhaha	1 x GPON interface
Fogaanta Gudbinta	0-20KM
Heerka gudbinta	2.488Gbps hoos; 1.244Gbps kor u socodka
Interface User-Network	1GE +3FE dekedda
	1 x Wi-Fi interface
	1 x interface USB martigeliyaha
	1 x POTS interfaces
Mawjada dhererka	Qaadashada: 1480~1500 nm Transmitting: 1290~ 1330 nm
Qaadashada Dareenka	-28dBm
Gudbinta Awoodda Aragga	0.5~5dBm
Isticmaalka tamarta	<10W
Cabirka	220mm(W) x44mm(H) x 160mm(D)
Heerkulka shaqada:	0oC ~ 40oC
Qoyaanka shaqaynaysa	5% ~ 95%
Miisaanka	380G
Korontada	12V DC

ZXHN F660 V8.0 FTTH Astaamaha Alaabta

aadka u ballaaran: hal geyn, cusboonaysiinta joogtada ah ee awoodda shabakadda

Deked kasta oo PON ah oo ka tirsan shabakadda POL waxay leedahay xawligeed ilaa 10G ah. Marka ay jirto baahi bandwidth sare leh, Fiber indhaha uma baahna in la beddelo, kaliya qalabka ama modules indhaha ee labada daraf ayaa u baahan in la beddelo, fududaynta tillaabooyinka cusboonaysiinta iyo badbaadinta kharashyada cusboonaysiinta.

La fududeeyay: badbaadinta tamarta iyo badbaadinta dhulka, hawl fudud iyo dayactir

Xalka POL wuxuu yarayn karaa qolka kombayutarka qiyaastii 80% waxayna gaari kartaa kayd tamar ilaa iyo 60%.

Shabakadda POL waxay leedahay kala sareyn fudud, taas oo ku haboon dayactirka iyo maamulka, waxay yaraynaysaa dhibcooyinka fashilka, waxayna wanaajisaa isku halaynta shabakada. Kharashyada hawlgalka shabakada iyo dayactirka waxaa lagu dhimi karaa wax ka badan 60%.
Isku dhafka: Hal fiber optic ah ayaa qaada dhammaan adeegyada

Shabakadda POL waxay bixin kartaa 1000M deked Ethernet ah, DHISOOYINKA, qaar, Wi-Fi, RS232/485 dekedda serial, Dekedda PoE, interface synchronization time, iwm. Looma baahna in la sameeyo shabakado badan si ay u qaadaan adeegyo badan.

Amniga: Bixi habab dhowr ah oo ilaalinta amniga

Shabakadda POL waxay si wax ku ool ah uga ilaalisaa faragelinta korantada, dheecaanka elektromagnetic iyo dhibaatooyin kale, waxayna taageertaa sirta AES128 si loo hubiyo badbaadada xogta gudbinta fiber indhaha.

Qalabka POL waxa uu taageeraa xidhitaanka MAC, 802.1x xaqiijinta, go'doominta isticmaalaha, iwm., cabudhinta baahinta, iyo weerarrada ka-hortagga DOS waxay si wax ku ool ah uga hortagaan gelitaanka isticmaale sharci-darrada ah iyo weerarrada kale ee isticmaalaha.
