Sharaxaada
SIMCom SIM5320A 3G Module is WCDMA/HSDPA Module with Dual-Band HSDPA/WCDMA and Quad-Band GSM/GPRS/EDGE delivering HSDPA up to 3.6Mbps for downlink data transfer.
SIMCom SIM5320A 3G Module Product Overview
SIMCom SIM5320A 3G Module is designed in LCC package supporting HSDPA up to 3.6Mbps for downlink data transfer. The module has strong extension capability with rich interfaces including UART, USB2.0, SPI, 2C,Keypad, PCM, iwm. Isla markaana, it offers abundant application capability like embedded LUA script, TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS. Maxaa dheeraad ah, the item provides much flexibility and ease of integration for customer’s application. Sidaa darteed, SIMCom SIM5320A 3G Module is ideal for a wide range ofproducts like PDA, MID, PND, POS, Tracker, AMI, Health Care etc.

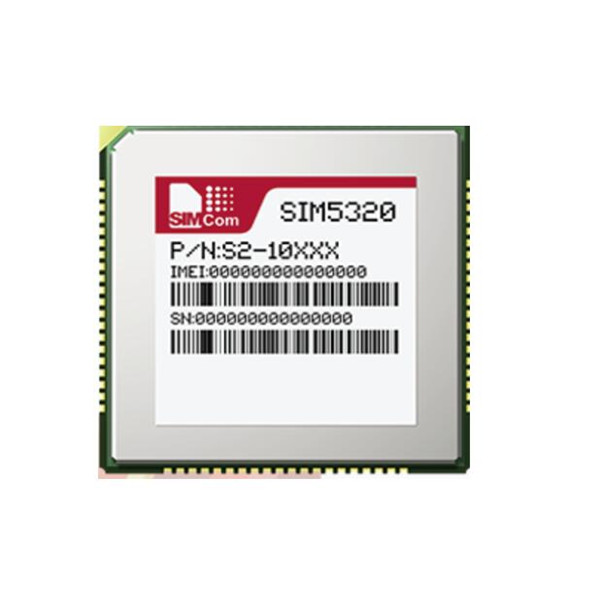

SIMCom SIM5320A 3G Module Product Pictures
SIMCom SIM5320A 3G Module Product Specifications
| Summada | SIMCom |
| Qaabka | SIMCom SIM5320A |
| Qodobka Foomka | LCC |
| Cabirka(mm) | 30 * 30 * 2.9 mm |
| Miisaanka | 5.6g |
| Kala duwanaanshaha danab bixinta | 3.4~ 4.2V |
| heerkulka hawlgalka | -30℃ ilaa +80 ℃ |
| Heerkulka hawlgalka ee la kordhiyay | -40℃ ilaa +85 ℃ |
| Astaamaha | • USB Driver for Microsoft Windows2000/XP/Vista/7/8/10 • Darawalka USB ee Windows CE/Mobile • Darawalka USB ee Linux / Android • Firmware update via USB • MMS • TCP/IP • MUX protocol over UART • FTP/FTPS/HTTP/HTTPS/SMTP/DNS • FOTA |
| Qeybaha Soo noqnoqda | Dual-Band UMTS/HSDPA 850/1900MHz Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz GPRS multi-slot class 12 EDGE multi-slot class 12 |
| Wareejinta Xogta | • HSDPA – Max. 3.6Mbps(DL) •WCDMA – Ugu badnaan.384Kbps(DL), Ugu badnaan.384Kbps(UL) • Fasalka EDGE: – Max. 236.8Kbps(DL),Ugu badnaan.118Kbps(UL) • GPRS – Max. 85.6Kbps(DL), Ugu badnaan.42.8Kbps(UL) • CSD – Heerka xogta GSM 14.4Kbps – Heerka xogta WCDMA 57.6Kbps – WCDMA 64kbps CSD oo loogu talagalay wicitaanka fiidiyowga • Multi-PDP connect application |
| Interfaces | • USB2.0 • UART • SIM card • SPI • I2C• Keypad • Constant current sink • GPIO • RTC • ADC • Mic/Receiver ** • PCM ** |
| Tilmaamaha SMS-ka | Tilmaanta MO iyo MT Qoraalka iyo qaabka PDU |
| Taageerada Luqadda qoraalka ee guntanka ah | • LUA Script Language • Embedded AT *Specifications for GPS/Location • CELL assistant Location (No GPS)• QUALCOMM XTRA GPS mode • A-GPS: MS-Based, MS-Assisted• Stand-alone GPS |
| Shahaadooyinka | RoHSREACHRCMFCC PTCRBAT&TICRogers |
| Carrier Approvals | AT&T, Rogers |
SIMCom SIM5320A 3G Module Product and More Related Models
A5360E LCC+LGA
SIM5320A LCC 80Pin
SIM5320E LCC 80Pin
SIM5320J LCC 80Pin
SIM5320JE LCC 80Pin
SIM5310 LCC 80Pin
SIMCom SIM5320A 3G Module Product Applications
Waan ka xumahay, wax lifaaq ah lama hayo !
