QSFP-DD-400G-FR4 Module is 400Gbps Quad Small Form-factor Pluggable – Double Density QSFP-DD module for use in 400GBASE Ethernet
QSFP-DD-400G-FR4 Module Product Overview
QSFP-DD-400G-FR4 Module is a channel full-duplex transceiver integrated optical module, using hot-swappable QSFP-DD package. It is compliant with QSFP-DD MSA and IEEE 802.3cu 400GBASE-FR4 Ethernet standard. By using dual LC optical ports, transmission distance reaches up to 2km through single-mode optical fiber (SMF) under maximum power consumption less than 10W.
400G QSFP-DD FR4 optical module adopts four CWDM wavelength uncooled EML lasers, and achieves a transmission rate of 400G per fiber through DEMUX/MUX. The module converts eight 53.125Gb/s electrical signals into four 106.25Gb/s optical signals, and multiplexes them into a single channel for 425Gb/s optical transmission. Similarly, it demultiplexes a 425Gb/s input optical signal into a 4-channel optical signal and converts it into an 8-channel output electrical signal at the receiving end.

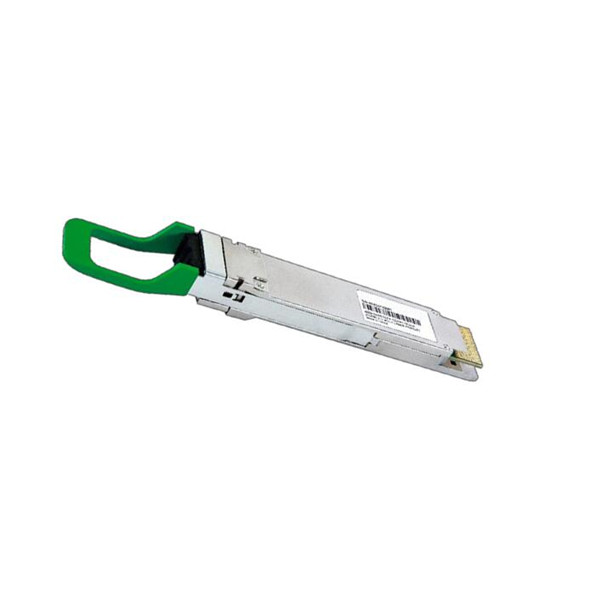

QSFP-DD-400G-FR4 Module Product Pictures
QSFP-DD-400G-FR4 Module Product Specifications
| Shayga | Qiimaha |
| Magaca Module | QSFP-DD-400G-FR4 |
| Lambarka Qaybta | 02312NPJ |
| Qaabka | QSFP-DD-400G-FR4 |
| Qodobka foomka | QSFP-DD |
| Heerka Codsiga/Nooca | 400Gbase-FR4 |
| Nooca xiriiriyaha | LC |
| Nooca fiber indhaha | SMF |
| Nooca wejiga ugu dambeeya ee ferrule dhoobada fiber | PC ama UPC |
| Heerkulka kiiska shaqada [°C (°F)] | 0°C ilaa 70°C (32°F ilaa 158°F) |
| Doorashooyinka DDM | Taageeray |
| Heerka gudbinta [xoogaa/s] | 400Gbit/s |
| Fogaanta gudbinta bartilmaameedka [km] | Hal-hab fiber (G.652) (dhexroor leh 9 μm): 2km |
| Saamiga qaladka yara (BER) | 2.40E-04 |
| Hirarka dhexda [nm] | 1271 nm, 1291 nm, 1311 nm, 1331 nm |
| Awoodda indhaha ee ugu badan ee Tx (AVG) [dBm] | 3.5 dBm |
| Awoodda indhaha ee ugu yar ee Tx (AVG) [dBm] | -3.3 dBm |
| Saamiga dabar goynta ugu yar [dB] | 3.5 dB |
| Dareenka Rx (LAHANKA) [dBm] | max(-4.6, SECQ-6) |
| Awood xad dhaaf ah (AVG) [dBm] | 3.5 dBm |
QSFP-DD-400G-FR4 Module Product Features
- Available in a hot-swappable QSFP-DD package
- 8-channel full-duplex transceiver integrated module
- Speeds up to 425Gbps
- Complies with QSFP-DD MSA and IEEE 802.3bs 200GBASE-FR4 Ethernet standards
- 8-channel 53Gb/s PAM4 uncooled EML CWDM transmitter and PIN receiver
- Under the premise that the FEC is turned on, the transmission distance through single-mode optical fiber can reach up to 2km
- Power consumption is less than 13W
- MPO/CS/SN optical port
- The commercial grade operating temperature range is from 10 ku 60 darajo Celsius
- Awoodda sahaydu waa 3.3V
- RoHS waafaqsan (hogaan la'aan)
QSFP-DD-400G-FR4 Module And More Models
QSFP-DD-400G-SR8
QSFP-DD-400G-FR4
QSFP-DD-400G-LR8
QSFP-DD-400G-ZR
QSFP-DD-400G-FR4 Module Product Applications
