Huawei SSN1SL4A(Ve-4.2,LC) Board is Finished board unit-OptiX OSN 3500-SSN1SL4A20-STM-4 optical interface board.
Huawei SSN1SL4A(Ve-4.2,LC) Board Product Overview
Huawei SSN1SL4A(Ve-4.2,LC) Board is a 1-channel STM-4 optical interface board, which realizes the reception and transmission of 1-channel STM-4 optical signals, completes the photoelectric conversion of STM-4 signals, the extraction and insertion of overhead bytes, and reports the line. Warning. Support two-fiber multiplex section ring protection, four-fiber multiplex section ring protection, linear multiplex section protection, SNCP protection, SNCTP protection and SNCMP protection. Support MSP and SNCP shared optical path protection. Provides 2 sets of K-byte processing capabilities, and one SL4A board can support up to 2 MSP rings. Waxay taageertaa dib-u-celinta gudaha iyo dib-u-celinta dibedda ee heerka dekedda indhaha.

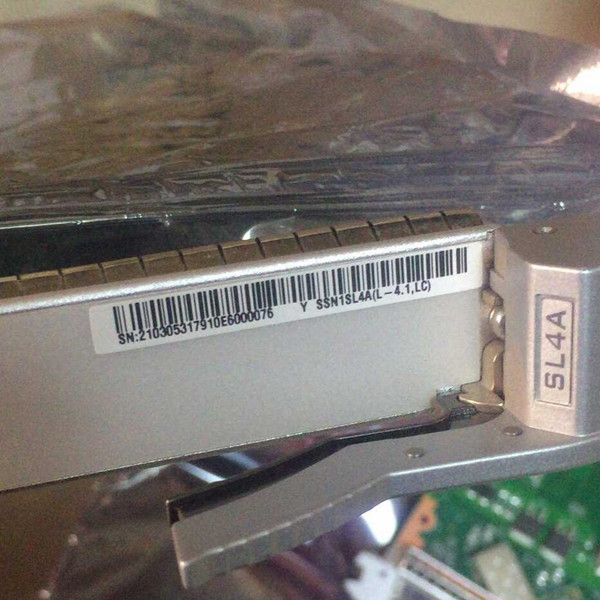

Huawei SSN1SL4A(Ve-4.2,LC) Board Product Pictures
Huawei SSN1SL4A(Ve-4.2,LC) Board Product Specifications
| Summada | Huawei |
| Lambarka Qaybta | 3053178 |
| Qaabka | Huawei SSN1SL4A(Ve-4.2,LC) |
| Sharaxaada | STM-4 Optical Interface Board(S-4.1,LC) |
| STM-4 Optical Interface Board SSN1SL4A(S-4.1,LC) | |
| STM-4 Optical Interface Board SSN1SL4A(L-4.1,LC) | |
| STM-4 Optical Interface Board SSN1SL4A(L-4.2,LC) | |
| STM-4 Optical Interface Board SSN1SL4A(Ve-4.2,LC) | |
| Line Product | Isku xirka |
| Qoyska Alaab-hoosaad | MSTP |
| Taxanaha Alaabta | OSN 7500 |
| UOM | PCS |
| Cabirka saafiga ah(D*W*H mm) | 25*262*265 |
| Awoodda caadiga ah(W) | 17 |
Huawei SSN1SL4A(Ve-4.2,LC) Board Product Features
- 1xSTM-4 Optical Interface Board
- Apply to Huawei OSN 1500B, OSN 2500, OSN 3500, OSN 7500 to transmit/receive 1xSTM-4 optical signals, at 40~80km.
- Support the detection and query of the information about the optical module.
- Support ALS function. The optical interface Support the setting of the on/off state of a laser.
- Support the transparent transmission and termination of the path overheads.
- Support the setting and query of the J0, J1, and C2 bytes.
- Support one channel of ECC communication.
- Support the fiber-shared MSP and SNCP and processes two sets of K bytes.
- Support inloops and outloops at optical interfaces.
- Support warm resets and cold resets. The warm reset does not affect services.
- Support the query of the manufacturing information of the board.
- Support the upgrade of the board software without affecting services.
- Support the press-to-collect function in fault data collection.
Huawei SSN1SL4A(Ve-4.2,LC) Board and more Related Models
| SSN1SL4A(S-4.1,LC) | Finished board unit-OptiX OSN 3500-SSN1SL4A20-STM-4 optical interface board (S-4.1, LC) |
| SSN1SL4A(L-4.1,LC) | Finished board unit-Optix OSN 3500-SSN1SL4A21-STM-4 optical interface board (L-4.1, LC) |
| SSN1SL4A(L-4.2,LC) | Finished board unit-OptiX OSN 3500-SSN1SL4A22-STM-4 optical interface board (L-4.2, LC) |
| SSN1SL4A(Ve-4.2,LC) | Finished board unit-OptiX OSN 3500-SSN1SL4A23-STM-4 optical interface board (Ve-4.2, LC) |
Huawei SSN1SL4A(Ve-4.2,LC) Board Product Applications
