Sharaxaada
Huawei S6720-30C-EI-24S-DC Switch is industry-leading, high-performance fixed switch with 24 10GE SFP+ dekedaha, 2 40GE QSFP+ ports and One extended slot
Huawei S6720-30C-EI-24S-DC Switch Product Overview
The switch is next-generation 10GE fixed switch, and it can function as an access switch in an Internet data center (IDC) or a core/aggregation switch on a campus network. S6720-EI has industry-leading performance offering line-speed 10GE access ports and 40GE uplink ports. Intaa waxaa dheer, the switch provides a wide variety of services, comprehensive security policies, and various QoS features to help customers build scalable, manageable, la isku halayn karo, and secure data center networks. Marka laga reebo iyaga, Huawei S6720-30C-EI-24S-DC Switch is designed in compact size with 220 mm qoto dheer oo ku habboon a 300 armaajo qoto dheer mm, badbaadinta booska rakibaadda macaamiisha

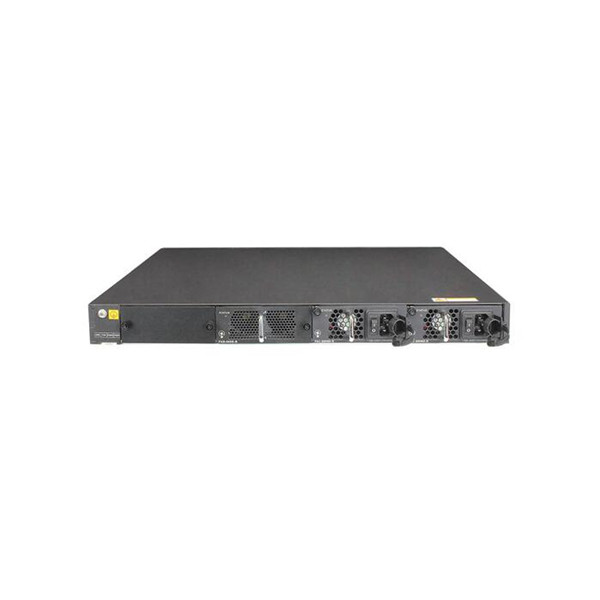

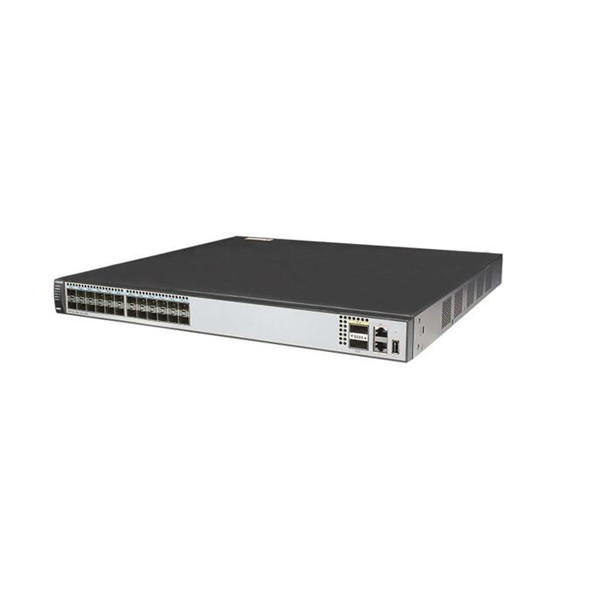

Huawei S6720-30C-EI-24S-DC Switch Product Pictures
Huawei S6720-30C-EI-24S-DC Switch Product Specifications
| Summada | Huawei |
| Qaabka badeecada | S6720-30C-EI-24S-DC |
| Lambarka qaybta | 02350NHU |
| Awood beddelidda | 2.56 Tbit/s |
| Waxqabadka Gudbinta | 720 Mps |
| Dekado go'an | 24 x 10 GE SFP+, 2 x 40 GE QSFP+ dekedaha |
| La dheereeyey naadi | Mid ka mid ah Afyare la dheereeyey |
| Shaxda Cinwaanka MAC | 288k gelida cinwaanka MAC |
| Cinwaanka MAC barashada iyo gabowga | |
| Joogta ah, firfircoon, iyo cinwaanka cinwaanka MAC god madow | |
| Shaandhaynta xirmo ku salaysan isha cinwaanada MAC | |
| Tilmaamaha VLAN | 4,094 VLANs |
| Martida VLAN iyo codka VLAN | |
| VLAN assignment based on MAC addresses, habmaamuuska, Shabakadaha hoose ee IP, siyaasadaha, iyo dekedaha | |
| 1:1 iyo N:1 VLAN Mapping | |
| QinQ and selective QinQ | |
| Jidka IP | Static routing, RIPv1, RIPv2, ECMP, and URPF |
| OSPF, IS-IS, and BGP | |
| VRRP | |
| Policy-based routing | |
| Routing policy | |
| wada shaqayn | VLAN-Based Spanning Tree (VBST) (la shaqaynta PVST, PVST+, iyo RPVST) |
| Habka Wada-xaajoodka Nooca Isku-xidhka (LNP) (oo la mid ah DTP) | |
| Hab-maamuuska Maamulka Dhexe ee VLAN (VCMP) (oo la mid ah VTP) | |
| Qoyaanka qaraabada | 5% ku 95%, aan cusbayn |
| Joogitaanka shaqada | 0-5000 m (0-16404 ft.) |
| Shahaado | Shahaadada EMC |
| Shahaadada badbaadada | |
| Shahaadada wax soo saarka |
Huawei S6720-30C-EI-24S-DC Switch Product Features
- S6720-EI supports centralized MAC address authentication and 802.1X authentication. The S6720-EI authenticates users based on statically or dynamically bound user information such as the user name, Ciwaanka IP-ga, Cinwaanka MAC, Aqoonsiga VLAN, access interface, and flag indicating whether antivirus software is installed. VLANs, Siyaasadaha QoS, and ACLs can be dynamically applied to users.
- S6720-EI can limit the number of MAC addresses learned on an interface to prevent attackers from exhausting MAC address entries by using bogus source MAC addresses. This function minimizes the packet flooding that occurs when users’ MAC addresses cannot be found in the MAC address table.
- S6720-EI supports the enhanced trunk (E-trunk) feature. When a CE is dual-homed to two S6720-EI switches (PEs), E-trunk protects the links between the CE and PEs and implements backup between the PEs. E-trunk enhances link reliability between devices.
- S6720-EI supports the Smart Ethernet Protection (SEP) protocol which is a ring network protocol applied to the link layer on an Ethernet network. SEP can be used on open ring networks and can be deployed on upper-layer aggregation devices to provide fast switchover (gudaha 50 ms), ensuring non-stop transmission of services. SEP waxay leedahay fududaan, kalsoonida sare, wareejin degdeg ah, dayactirka fudud, iyo topology dabacsan, fududaynta qorsheynta iyo maamulka shabakada.
Huawei S6720-30C-EI-24S-DC Switch and More Models
S6720-50L-HI-48S 48 x 10 Gig SFP+, 6 x 40 Gig QSFP+ ama 44 x 10 Gig SFP+, 4 x 40 Gig QSFP+, 2 x 100 Gig QSFP28
S6720-30L-HI-24S 24 x 10 Gig SFP+, 4 x 40 Gig QSFP+, 2 x 100 Gig QSFP28
S6720-30C-EI-24S-AC 24 x 10 GE SFP+, 2 x 40 GE QSFP+ dekedaha
S6720-30C-EI-24S-DC 24 x 10 GE SFP+, 2 x 40 GE QSFP+ dekedaha
S6720-54C-EI-48S-AC 24 x 10 GE SFP+, 2 x 40 GE QSFP+ dekedaha
S6720-54C-EI-48S-DC 24 x 10 GE SFP+, 2 x 40 GE QSFP+ dekedaha
S6720S-26Q-EI-24S-AC 24 x 10 GE SFP+, 2 x 40 GE QSFP+ dekedaha
Huawei S6720-30C-EI-24S-DC Switch Ordering Info
| Shayga | Sharaxaada Alaabta |
| 1 | Xidhmada S6720-30C-EI-24S-AC (24×10GE SFP+ , 2×40GE QSFP+ dekedaha , leh 1 Afyare dheereeyey, oo leh koronto 600W AC ah) |
| 2 | Xidhmada S6720-54C-EI-48S-AC (48×10GE SFP+ , 2×40GE QSFP+ dekedaha , leh 1 Afyare dheereeyey, oo leh koronto 600W AC ah) |
| 3 | Xidhmada S6720-30C-EI-24S-DC xidhmo (24×10GE SFP+ , 2×40GE QSFP+ dekedaha , leh 1 Afyare dheereeyey, oo leh koronto 350W DC ah) |
| 4 | S6720-54C-EI-48S-DC xidhmo (48×10GE SFP+ , 2×40GE QSFP+ dekedaha , leh 1 Afyare dheereeyey, oo leh koronto 350W DC ah) |
| 5 | Xidhmada S6720S-26Q-EI-24S-AC (24×10GE SFP+ , 2×40GE QSFP+ dekedaha , oo leh koronto 170W AC ah) |
| 6 | 4× 40GE QSFP+ kaarka interneedka (loo isticmaalo taxanaha S6720EI) |
| 7 | 8× 10GE SFP+ kaarka interface (loo isticmaalo taxanaha S6720EI) |
| 8 | Sanduuqa taageeraha (B, qiiqa dhinaca garabka FAN) |
| 9 | 600W AC module power |
| 10 | 350W DC module koronto |
| 11 | 170W AC module power |
| 12 | 170W DC module koronto |
Huawei S6720-30C-EI-24S-DC Switch Product Applications
