Sharaxaada
Huawei OSN8800 T16 is a 40G/100G level DWDM, leh 16 boosaska adeegga, supports 1.6T cross-connect capacity with 2xTN16PIU 1xTN16AUX 1xTN16EFI 1xTN16ATE
Huawei OSN8800-T16 Product Overview
Huawei OSN8800-T16 is mainly used in the convergence layer of metropolitan WDM.
Huawei OSN8800-T16 adopts DWDM (Dense Wavelength Division Multiplexing) to realize multi-service, large-capacity, and fully transparent transmission functions. Providing flexible service scheduling function, not only realize ROADM scheduling with wavelength as granularity on the optical layer, but also realize sub-wavelength business scheduling with ODU3/ODU2/ODU1/ODU0/ODUflex granularity within each wavelength, taas oo si weyn u wanaajisa jadwalka ganacsiga Debacsanaanta iyo ka faa'iidaysiga bandowga.
OptiX OSN 8800 kaliya ma samayn karo shabakad dhamaystiran oo OTN ah dhamaadka-ilaa-dhamaadka leh OptiX OSN 6800/OptiX OSN 3800/OptiX OSN 1800, laakiin sidoo kale ku dhis shabakad qaybinta mawjada leh OptiX BWS 1600G/OptiX Metro 6100
OSN8800 T16 subbrack waxay la socotaa laba PIU (Qaybta Interface Power), hal AUX (Guddiga Interface Kaaliyaha System), hal TN16EFI (EMI filter interface board) iyo hal TN16ATE (Guddiga digniinta Interface & waqti & looxa ballaarinta), nidaamka kale iyo guddiga adeegga waa la habeyn karo.

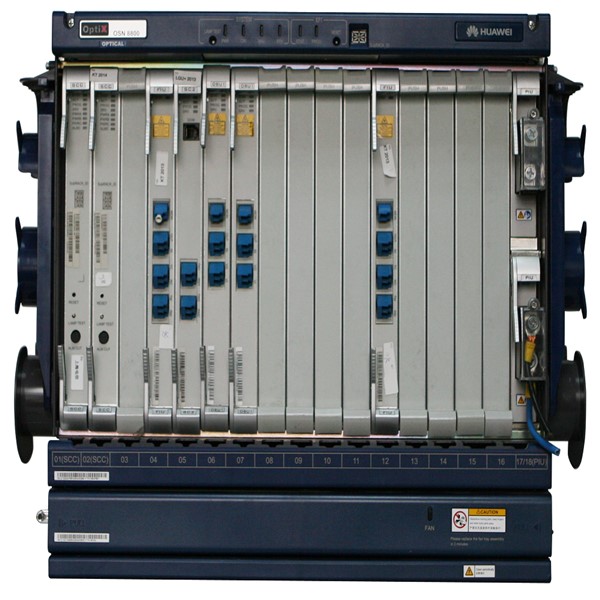

Huawei OSN8800-T16 Sawirrada Product
Huawei OSN8800-T16 Tilmaamaha Alaabta
| Summada | Huawei | ||
| Qaabka | OSN8800-16 | ||
| Cabirka (mm) | 450 (H) × 447 (W) × 295 (D) | ||
| Tirada kaarka boosaska | 16 | ||
| Bedel | Muuqaal |
|
|
| Koronto | 640G/1.6T ODUk(k=0,1,2,2e,3,dabacsanaan), 1.28T/3.2T ODUk(k=0,1,2,2e,3,dabacsanaan), 2.56T/6.4T ODUk(k=0,1,2,2e,3,dabacsanaan), | ||
| 640G VC4 & 20G VC3&VC121.28T VC4 & 80G VC3&VC121.28T VC4 & 80G VC3&VC12 | |||
| Mawjada dhererka | 80 | ||
| Kala duwanaanshaha hirarka dhererka | 192.1THz ~ 196.05THz (Band-C, IT-T G.694.1) | ||
| Max. heerka kanaalka | 100Gbit/s (HAL-4) | ||
| Gaadhi | Max. 350km(81dB) | ||
| Client Interface | Nooca | STM-1/4/16/64/256 | |
| OC-3/12/48/192/768 | |||
| HAL 1/MID 2/MID 3 | |||
| Adeeg kasta oo heerkiisu yahay 100Mbit/s ilaa 100Gbit/s | |||
| FE/GE/10GE/40GE/100GE | |||
| ESCON/FICON/FICONExpress/FC100/FC200/FC400/FC1200/HDTV/ DVB-ASI/DVB-SDI/SDI/ FDDI | |||
| Fiber | G.652, G.653, G.654, G.655 | ||
| Xiriiriyaha | SFP/XFP, LC/PC | ||
| Interface line | Nooca | HAL-1/MID-2/OUT-3 | |
| Fiber | G.652, G.653, G.654, G.655 | ||
| Xiriiriyaha | SFP/XFP, LC/PC | ||
| Topology | Point-to-point, Silsilad, Giraanta iyo Mesh | ||
| Iskuxidhka | Isku xidh. E, 2Mbit/s | ||
| Habka Buurta | ETSI 300/600 golaha wasiirada, 23-rafka inch | ||
| Heerkulka shaqada | -5°C ~ 45°C | ||
| Qaboojin | Qaboojinta Taageerada | ||
| Qoyaanka | 10~ 90% | ||
| Galinta Awoodda | DC: -48/-60V | ||
Huawei OSN8800-T16 Tilmaamaha Product
- Mid ka mid ah qaybta hoose waxay geli kartaa adeegyada 320/640*10G ama 32/64*100G; taageero helitaanka adeegga IP-ga ee ballaaran, jadwalka dhexe iyo maamulka, baabi'inta shabakadii hore ee isu imaatinka ee dhawr hoosaadyo; badbaadin 80% Waxay qabsataa aag yar, waxay yaraynaysaa isticmaalka tamarta halbeeg kasta 55%, waxay meesha ka saartaa beddelka fiber ODF, wuxuuna leeyahay kalsooni sare.
- 2T / 6.4T awoodda isku-xidhka korantada ee aan xannibin, taageero isku xidhka adag, Jadwalka dhexe ee adeegyada baaxadda leh; taageero 2/4/9/20 cabbirka ROADM isku xirka indhaha; taageer isku-xidhka isku-dhafan ee koronto-dhaliyaha ah, si dabacsanaan leh u xaqiiji adeegga iskutallaabta ee heerka mawjada/mawjada-hoosaadka, Dhaqdhaqaaq ganacsi oo degdeg ah oo la yareeyo CAPEX. Isla mar ahaantaana la dhiso warshadda ugu horraysa ee dhismaha ugu yar CDCG (mawjada-madax banaan, jihada madax-bannaan, xannibaad-madax-bannaan, grid-madax banaan) ROADM, fududaynta lakabka indhaha ee ASON qaabaynta node.
- Nidaamka ganacsi ee qaan-gaarka ah ee 96*100G, gudbinta bandwidth aan xad lahayn; warshadaha kaliya ee OCH iyo ODUk photoelectric double-lakab caqli leh, isku xirka korantada ee hab cusub, oo leh kalsooni sare.
- Muuqaalka MS-OTN, Guddiga isku-xiran ee xarunta dhexe wuxuu taageeraa isku xirka OTN/SDH/ xirmada isku xirka si midaysan; OTN, SDH iyo adeegyada baakadaha ayaa si dabacsan la isugu daray si loo hagaajiyo waxtarka isticmaalka boodhka iyo baaxadda.
- Taageerada gudbinta fiilada badda hoosteeda, 100G ee ugu horreeya ee xalalka badda hoostiisa, taageero 100G gudbinta aan korontada ahayn 12,000 kiiloomitir gudbinta.
Huawei OSN8800-T16 Product Main Boards
| Unug isku-xiran iyo nidaamka iyo unugga isgaarsiinta | |
| TN16XCH | Xidhiidhka sare ee Cross-ka, Guddiga Xakamaynta Nidaamka iyo Saacadaha Habaynta |
| TN16UXCM | 1.6T Isku xirka Iskutallaabta Caalamiga ah, Guddiga Xakamaynta Nidaamka iyo Saacadaha Habaynta |
| TN16AUX | nidaamka kaaliyaha interface guddiga |
| TN16SCC | kantaroolka nidaamka iyo unugga isgaarsiinta |
| Unugga transponder indhaha | |
| TN12LDX | 2 x 10 Gbit/s unugga beddelka hirarka dhererka |
| TN11LEX4 | 4 x 10GE iyo 2 x OTU2 Ethernet beddelka guddiga |
| TN12LOG | 8 x Gigabit Ethernet unit |
| TN12LSC/TN15LSC,TN13LSC/TN17LSCM | 100Gbit/s looxa beddelka hirarka dhererka |
| TN11LTX/TN12LTX | 10-Dekedda 10 Isku-dhufashada Adeegga Gbit/s |
| Guddiga Beddelka Wavelength Optical | |
| TN12LQMD | 4-kanaalka tirada badan (100Mbit/s-2.5Gbit/s) unugga beddelka hirarka dhererka, laba quudin iyo helid doorasho ah |
| TN12TMX | 4 kanaalka STM-16/OC-48/OTU1 asynchronism mux OTU-2 looxa beddelka mawjada |
| TN11LEM24 | 22 x GE + 2 x 10GE iyo 2 x OTU2 Ethernet beddelka guddiga |
| TN11 LOA | 8 x Qiim kasta MUX OTU2 Guddiga Beddelka Mawjada |
| TN12LOM | 8-isku dhufashada adeegyada badan ee dekedda |
| looxa beddelka hirarka indhaha | |
| TN11LSQ/TN15LSXL | 40 Gbit/s looxa beddelka hirarka dhererka |
| Tusmada ugu hooseysa ee TN15LTX | 10-Isku dhufashada Adeegga 10G ee 10G |
| Guddiga Beddelka Wavelength Optical | |
| TN12LWXS | heerka sabab la'aan (16Mbit/s-2.7Gbit/s) looxa beddelka hirarka dhererka (hal gudbin) |
| OTN tributary unit | |
| TN52TDX,TN53TDX | 2 x 10G guddiga habbaynta adeega tributary |
| TN54 HAA | 16 Wax-qiimihiisu yahay Guddiga Habaynta Adeegga Dekeddaha |
| TN52TOG | 8 x GE gudida habaynta adeega tributary |
| TN55TOX,TN56TOX | 8 x 10 Gbit/s guddiga habbaynta adeegga qaybta |
| TN53TSXL,TN54TSXL | 40 Gbit/s guddiga habbaynta adeegga qaybta |
| TN54TEM28 | 24xGE+4x10GE Ethernet tributary unit |
| TN54TOA | 8 Wax-qiimihiisu yahay Guddiga Habaynta Adeegga Dekeddaha |
| TN52TOM | 8 x guddiga farsamaynta adeegga dekedaha qiimaha badan |
| TN52TQX,TN53TQX,TN55TQX | 4 x 10 Gbit/s guddiga habbaynta adeegga qaybta |
| Unugga khadka OTN | |
| TN52ND2,TN53ND2 | 2 x 10G guddiga farsamaynta adeegga khadka |
| TN55NO2 | 8 x 10G Gudida habaynta adeega khadka |
| TN52NS3,TN54NS3 | 40G Gudbinta Adeegga Khadka |
| TN55NS3,TN56NS3 | |
| TN53NQ2 | 4 x 10G Gudida habaynta adeega khadka |
| TN54NQ2 | |
| TN52NS2,TN53NS2 | 10G Gudbinta Adeegga Khadka |
| TN56NS4 | 100G Gudbinta Adeegga Khadka |
| Guddiga Habaynta Adeegga Guud iyo Guddiga Khadka Caalamiga ah | |
| TN54GS4 | 100G Guddiga Habaynta Adeegga Guud |
| TN54HUNQ2 | 4 x 10G Guddiga Habaynta Adeegga Khadka Caalamiga ah |
| TN54HUNS3 | |
| Qeybta adeegga xirmada | |
| TN54EG16,TN55EG16 | 16-boorsada beddelka xirmada ee gigabit ethernet |
| TN54PND2 | 2 x 10G bit/s baakadda khadka khadka |
| TN54EX2,TN54EX8 | 2 x 10GE ethernet baakadda beddelka |
| PID iyo guddiga Submarine | |
| TN54ENQ2 | 4 x 10G guddiga farsamaynta adeegga khadka |
| TN55NPO2E | 10G- PID-ga guddiga farsamaynta adeegga, 20– kanaalka la dheereeyey |
| TN96OBU1 | Cutubka Kobcinta indhaha ee C-band |
| TN96WSM9 | 9-mawjada dhererka dekedda looxa multixing xulashada |
| TN54NPO2,TN55NPO2 | 12 x OTU2 PID boodhka |
| TN96NS4 | 100G-gudbinta habaynta adeegga |
| TN96WSD9 | 9-dakadda dabacsan mowjadda dheer ee looxa demultiplexing xulashada |
| Multiplexer indhaha iyo guddiga demultiplexer | |
| TN11D40, TN12D40 | 40-unugga demultiplexing channel |
| TN11M40,TN12M40 | 40-unugga isku dhufashada kanaalka |
| TN12FIU,TN13FIU | unugga interface fiber |
| TN14FIU,TN15FIU | |
| TN11SFIU | unugga interface fiber-ka ee wakhtiga isku-xidhka |
| TN11M40V,TN12M40V | 40-qaybta isku-dhufashada channel-ka ee VOA |
| TN11ITL,TN12ITL | guddiga interleaver |
| Isku-darka indhaha ee go'an oo hoos u dhigaya guddiga isku-dhafan | |
| TN11CMR2 | CWDM 2-channel optical add/ rid unugga isku dhufashada |
| TN11MR4 | 4-kanaalka wax-ku-dar/dhigista unugga isku-dhufashada |
| TN11MR8V,TN12MR8V | 8-kanaalka add/soo rid unugga isku dhufashada ee VOA |
| TN11CMR4 | CWDM 4-channel optical add/ rid unugga isku-dhufashada |
| TN11MR2 | 2-kanaalka wax-ku-dar/dhigista unugga isku-dhufashada |
| Isku-dar indhaha dib loo habayn karo oo hoos u dhigi kara unugga isku-dhafan | |
| TN11RDU9,TN12RDU9 | 9-dekedda ROADM guddiga demultiplexing |
| TN12WSMD4,TN13WSMD4 | 4-mawjadaha dhererka dekedda ee multiplexer xulashada iyo guddiga demultiplexer |
| TN11TM20 | 20-dekedaha Wavelongth Tunable Multiplexing Board |
| TN12WSM9,TN13WSM9,TN16WSM9 | 9-mawjadda dhererka dhererka doorarka looxa beddelka multiplexing |
| TN11WSMD9,TN12WSMD9 | 9-mawjadaha dhererka dekedda ee doorsoon multixing iyo demultiplexing guddiga |
| TN11RMU9 | 9-dekedda ROADM guddiga isku dhufashada |
| TN12TD20 | 20-dekedaha Tunable Demultiplexing Board |
| TN12WSD9,TN13WSD9,TN16WSD9 | 9-looxa demultiplexing beddelka mawjada dhererka xulashada |
| TN15WSMD9 | 9-mawjadaha dhererka dekedda ee doorsoon multixing iyo demultiplexing guddiga |
| Cutubka cod-weyneeye indhaha | |
| SSN4BPA | xoojiye indhaha iyo looxa-amplifier-ka hore |
| TN11DAS1 | unugga cod-weyneeye indhaha |
| TN12OAU1,TN13OAU1 | unugga cod-weyneeye indhaha |
| TN12OBU2,TN13OBU2,TN14OBU2 | unugga xoojinta indhaha |
| TN11RAU2,TN12RAU2 | raman dib-u-dhac iyo erbium doped fiber hybrid optical amplifier unit |
| TN11CRPC | kiis-qaabka Raman bamka cod-weyneeye ee C-band |
| TN11HBA | looxa kor u qaadka awooda sare leh |
| TN12OBU1,TN13OBU1 | unugga xoojinta indhaha |
| TN11RAU1,TN12RAU1 | raman dib-u-dhac iyo erbium doped fiber hybrid optical amplifier unit |
| Kanaalka ilaalinta indhaha iyo qaybta ilaalinta indhaha | |
| TN11HSC1, TN12HSC1 | boodhka kanaalka kormeerka indhaha ee unidirectional awood sare |
| TN12SC2 | Unugga kanaalka kormeerka indhaha ee laba jiho |
| TN11DCP,TN12DCP,TN13DCP | Unugga ilaalinta indhaha |
| TN11QCP | Unugga ilaalinta indhaha |
| TN12SC1 | Unugga kanaalka kormeerka indhaha ee unidirectional |
| TN11ST2 | kanaalka kormeerka indhaha laba jiho iyo qayb gudbinta wakhtiga |
| TN11OLP,TN12OLP,TN13OLP | unugga ilaalinta khadka indhaha |
| TN11SCS | sync optical channel separator unit |
| Falanqeeyaha Spectrum/Attenuator indhaha kala firdhisan/qaybta saacada | |
| TN11MCA4 | 4-unugga spectrum analyzer channel |
| TN11OPM8,TN12OPM8 | 8-guddiga kormeerka awoodda indhaha ee kanaalka |
| TN12VA1, TN13VA1 | 1-Qaybta attenuator-ka ee doorsooma kanaalka |
| TN11DCU | guddiga magdhowga kala firdhiyey |
| TN11MCA8 | 8-unugga spectrum analyzer channel |
| TN11WMU | unugga la socodka hirarka dhererka |
| TN12VA4,TN13VA4 | 4-Qaybta attenuator-ka ee doorsooma kanaalka |
| TN11TDC | looxa magdhowga kala firdhiya ee hal-mawjadaha dheereeya |
| Unugga TDM | |
| SSN3EAS2 | 2-dekedda 10xGE beddelka iyo processing guddiga |
| SSN4SF64,SSN1SF64A | 1 x STM-64 guddiga isdhexgalka indhaha oo leh shaqada FEC |
| SSD4SL64 | 1 x STM-64 boodhka interface indhaha |
| SSD3SLH41 | 16 x STM-4/STM-1 sabuuradda is dhexgalka indhaha |
| SSD4SLQ64 | 4 x STM-64 sabuurad interface line |
| SSN1EGSH | 16 x GE ethernet ka beddelka iyo guddiga |
| SSN4SFD64 | 1 x STM-64 guddiga isdhexgalka indhaha oo leh shaqada FEC |
| SSD4SLD64 | 2 x STM-64 boodhka interface indhaha |
| SSD4SLQ16 | 4xSTM-16 guddiga interface indhaha |
| SSN4SLO16 | 8 x STM-16 guddiga interface indhaha |
| Meesha Interface/Fav/ROPA unugga nidaam hoosaadka | |
| TN16ATE | guddiga alaarmiga interface & waqti & balaadhinta |
| TN11GFU | heli flatness unit |
| TN16PIU | unit interface awood |
| TN11ROP | Unugga bamgareynta ROPA |
| TN16EFI | EMI filter interface board |
| TN11RGU | Unugga faa'iidada ROPA |
| TN16FAN | Taageere |
Codsiyada Alaabta Huawei OSN8800-T16
