Sharaxaada
Huawei MPSG 10G Uplink is a super control unit board for system control and service switching and aggregation
Huawei MPSG 10G Uplink Product Overview
The card is used for MA5800-X2 subracks. H901MPSG-G Board can also function as the management and control core of the integrated network management system (NMS). It exchanges the key management and control information with service boards through the master/slave serial port and in-band channel. In sidan, the H901MPSG board configure, maamul, and control the device, and also provide simple dynamic routing. Huawei SmartAX MA5800 series OLT products include the MA5800-X17, MA5800-X15, MA5800-X7, and MA5800-X2. It supports GPON, XG-PON, XGS-PON, XG-PON&GPON combo, XGS-PON&GPON combo, Flex-PONGE, 10GE, and other interfaces.

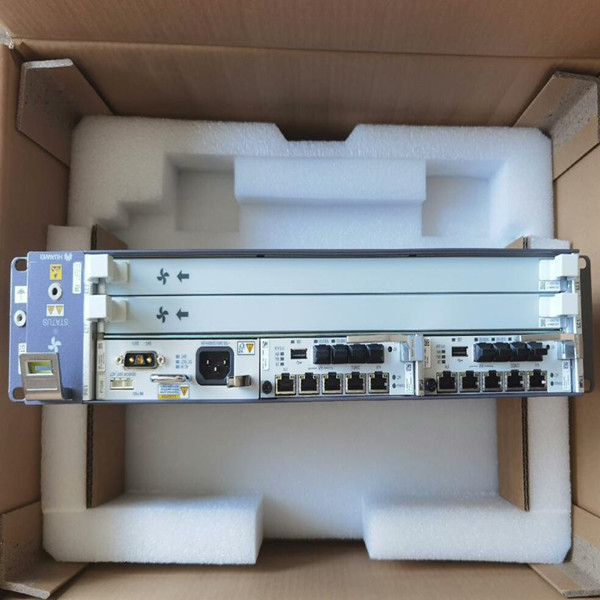

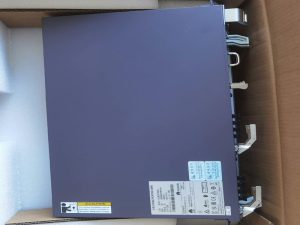

Huawei MPSG 10G Uplink Product Pictures
Huawei MPSG 10G Uplink Product Specifications
| sumadda | HUAWEI |
| Qaabka | MPSG |
| Bandwidth halkii Afyare | 80Gbit/s (habka qaybsiga load) |
| miiska cinwaanka MAC | 262143 |
| Helitaanka ONT | 4096 |
| Isticmaalaha Multicast | 4000 |
| IPV4 miiska marinka | 65536 |
| IPV6 miiska marinka | 16384 |
| Deked adeeg | 32768 |
| miiska ARP | 98816 (V100R017C10) |
| 131072 (V100R018C00 iyo nooca dambe) | |
| Cabbirka Guud ee ugu sarreeya | 2052 bytes |
| 9216 bytes (jir jumbo waa karti) | |
| Heerkulka shaqada | -40°C ilaa +65°C |
| Isticmaalka tamarta | Joogta ah: 53W |
| Ugu badnaan: 67W | |
| Cabirka(mm) | 35.28 (W)x 258.15 (D) x 130.36 (H) |
| Miisaanka(kg) | 0.99 |
Huawei MPSG 10G Uplink Product Features
- Support active/standby switchover at the control plane
- Support load sharing mode at the forwarding plane, waxqabadka processing labanlaabaya
- Support ISSU, badbaadinta wakhtiga kala goynta cusboonaysiinta
- Communication Interfaces GE3 and GE2: taageero 2 GE 10GE1/GE1 and 10GE0/GE0: taageero 2 10GE/GE
- Used for upstream transmission or cascading
Huawei MPSG 10G Uplink and MPSA&MPSC Differences
| Alaabta | H901MPSA | H901MPSC | H901MPSG |
| Lambarka qaybta | 03025TRS | 03023WDY | 302019783 |
| Bandwidth halkii Afyare (load balancing mode) | 40Gbit/s | 80Gbit/s | 40Gbit/s |
| Upstream or cascading port | 2*10GE/GE | 4*10GE/GE | 2*10GE/GE |
| 2*GE | 2*GE | ||
| Isku hagaaji saacadda ETH | Y | Y | N |
| 1588ACR | N | N | N |
| 1588v2 Synchronization | Y | Y | N |
| Dekedda ALM (Alarm digital parameters) | Y | Y | Y |
| BITS/DEkedda TOD | Y | Y | Y |
Huawei MPSG 10G Uplink Product Applications
