Sharaxaada
Huawei AR611-LTE4EA Router is a enterprise-class Access Routers (ARs) Waxaa loogu talagalay marxaladda daruuriga leh dekedaha wanka go'an: 1*GE Combo, 1 * LTE and Fixed LAN ports: 4*GE RJ45(waxaa loo habeyn karaa sidii Wan)
Huawei AR611-LTE4EA Router Product Overview
The router uses multi-core processors and a non-blocking switching structure, Caawinta gaarsiinta sadex jeer waxqabadka warshadaha. Intaa waxaa dheer, Huawei AR611-LTE4EA integrates functions such as SD-WAN, maamulka daruuraha, habayn, beddelashada, VPN, WLAN, iyo amniga, hubinta adeegyada la kala jaray oo daruuriga ah iyo daruuro si buuxda ayaa loo taageeraa. The product can be deployed at branches of SMBs and small-sized enterprises as required to provide enterprise network egress capabilities.
Taxanaha NetEngine AR610 wuxuu ka kooban yahay moodooyin sida NetEngine AR611, Matoorada Net AR611W, Shabakad ar611lte4ea , NetEngine AR611W-LTE6EA, NetEngine AR617VW, NetEngine AR617VW-LTE4EA, NetEngine AR617VW-LTE4. Huawei waxay bixisaa noocyo kala duwan oo buuxin kara shuruudaha isku xirka shirkadaha miisaanka kala duwan.

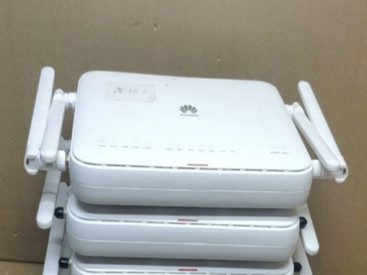

Huawei AR611-LTE4EA Router Product Pictures
Huawei AR611-LTE4EA Router Product Specifications
| em | Faahfaahin |
| Summada | Huawei |
| Qaabka | Ar611-lte4ea |
| Sharaxaada | 1*GE COMBO WAN, 4*GE LAN, 1*USB 2.0, 1*LTE |
| Lambarka Qaybta | 50010702 |
| Nooca ugu horreeya ee la taageeray | V300R022C00 |
| Hadallo | Available in V300R022C00 and later versions |
| Nooca rakibidda | Kursiga shaqada ee ka soo horjeeda derbiga |
| Dhererka chassis [U] | 1 U |
| Miisaanka baakadaha leh [kg(lb)] | 1.31 kg (2.89 lb) |
| Miisaanka aan baakad lahayn [kg(lb)] | 0.85 kg (1.87 lb) |
| processor | 1.1 GHz, 2 Qaybaha |
| Xusuusta | 1 GB |
| NAND Flash | 1 GB |
| Dekedda Console | RJ45 |
| RTC | Taageeray |
| Isticmaalka tamarta ugu badan [W] | 17 W |
| Habka sahayda korontada | External AC |
| Tirada qaybaha korantada | 1 |
| Voltage gelinta la qiimeeyay [V] | 110 V ku 220 V, 50 Hz/60 Hz |
| Kala duwanaanshaha korantada galitaanka [V] | 90 V ku 270 V, 45 Hz ku 65 Hz |
| gelinta ugu badan ee hadda [A] | 0.8 A |
| Awooda wax soo saarka ugu badan [W] | 24 W |
| Habka kala daadinta kulaylka | Diidmada kulaylka dabiiciga ah |
| Koronto aan badnayn | Lama taageero |
| PoE | Lama taageero |
| Qaylada heerkulka caadiga ah (awood dhawaaq) [dB(A)] | 0 (Diidmada kulaylka dabiiciga ah) |
| Heerkulka shaqada ee muddada-dheer [°C(°F)] | 0°C ilaa 40°C (32°F ilaa 104°F) |
| Heerkulka kaydinta [°C(°F)] | -40°C ilaa +70°C (-40°F ilaa +158°F) |
| Qoyaanka shaqada ee muddada-dheer [RH] | 5% RH ku 95% RH, aan cufan |
| Joogitaanka shaqada ee muddada-dheer [m(ft.)] | < 5000 m (16404.2 ft.) |
| MTBF [sanado] | 51.63 sanado |
| MTTR [saacadood] | 2 saacadood |
| Helitaanka | 0.999995578 |
| Cabbirrada aan baakad lahayn (H x W x D) [mm(gudaha)] | cabbirada aasaasiga ah: 38.0 mm x 240.0 mm x 161.5 mm (1.5 gudaha. x 9.45 gudaha. x 6.36 gudaha) |
| Cabbirrada ugu badan: 41.4 mm x 278.6 mm x 161.5 mm (1.63 gudaha. x 10.97 gudaha. x 6.36 gudaha) | |
| Cabbirrada baakadaha leh (H x W x D) [mm(gudaha)] | 90 mm x 370 mm x 297 mm (3.54 gudaha. x 14.57 gudaha. x 11.69 gudaha) |
Huawei AR611-LTE4EA Router Product Features
- Built-in SD-WAN solution, building cost-effective and business-friendly connections over the Internet
- ZTP (Email-, USB-, DHCP-ku-saleysan iyo diiwaangelinta xarunta weydiinta), yareynta shuruudaha xirfadaha iyo aaladaha bixinta daqiiqadaha
- Aqoonsiga Koorsada Koowaad (FP) Codsiyada SASAS iyo wacyiga adeegga ee codsiyada qalafsan, Aqoonsiga kor 90% Codsiyada
- Isteerinka taraafikada ee ku saleysan bandwidth iyo tayada xiriirinta, Hubinta khibradaha codsiyada muhiimka ah iyo hagaajinta tusaha xad-dhaafka ah ee loo adeegsado illaa 90%
Huawei AR611-LTE4EA Router And More AR600 Routers
NetEngine AR611 1*GE COMBO WAN, 4*GE LAN, 1*USB 2.0
NetEngine AR611W 1*GE COMBO WAN, 4*GE LAN, 1*USB 2.0, Wi-Fi 2.4G+5G
NetEngine AR611-LTE4EA 1*GE COMBO WAN, 4*GE LAN, 1*USB 2.0, 1*LTE
NetEngine AR611W-LTE6EA 1*GE COMBO WAN, 4*GE LAN, 1*USB 2.0, 1*LTE, Wi-Fi 2.4G+5G
NetEngine AR617VW 1*GE COMBO WAN, 4*GE LAN, 1*VDSL2, 2*FXS, 1*USB 2.0, Wi-Fi 2.4G+5G
NetEngine AR617VW-LTE4EA 1*GE COMBO WAN, 4*GE LAN, 1*VDSL2, 2*FXS, 1*USB 2.0, 1*LTE, Wi-Fi 2.4G+5G
NetEngine AR617VW-LTE4 1*GE COMBO WAN, 4*GE LAN, 1*VDSL2, 2*FXS, 1*USB 2.0, 1*LTE, Wi-Fi 2.4G+5G
Huawei AR611-LTE4EA Router Product Applications
