Huawei AirEngine 5761S-11W

Sharaxaada

Huawei AirEngine 5761S-11W is a panel access point supporting the 802.11ax standard protocol for the SMB market reaching mas speed of 1.775Gbps

Huawei AirEngine 5761S-11W Product Overview

Huawei AirEngine 5761S-11W is a panel AP that supports the 802.11ax standard protocol for the SMB market. With built-in smart antenna, the signal moves with the user, which greatly enhances the user’s experience of using the wireless network. Waxaa intaa dheer, this model supports 2×2 MIMO, 2.4GHz and 5GHz dual-band services are provided at the same time, and the speed of the whole machine can reach 1.775Gbps. It is suitable for places with dense rooms such as hotels, isbitaalada, and dormitories and so on.

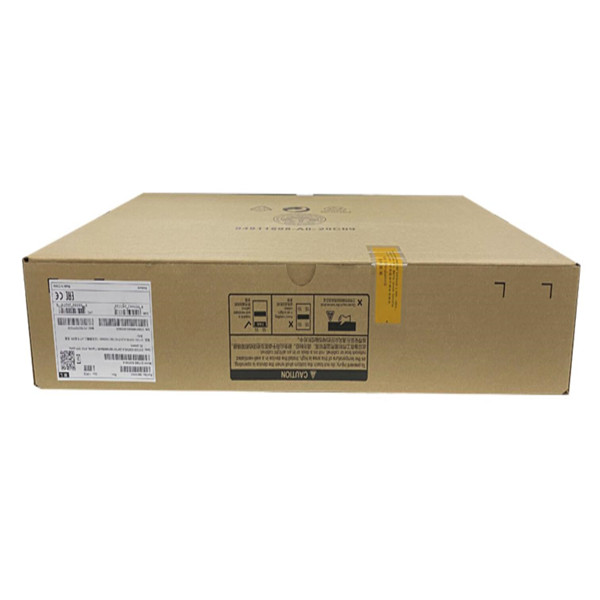

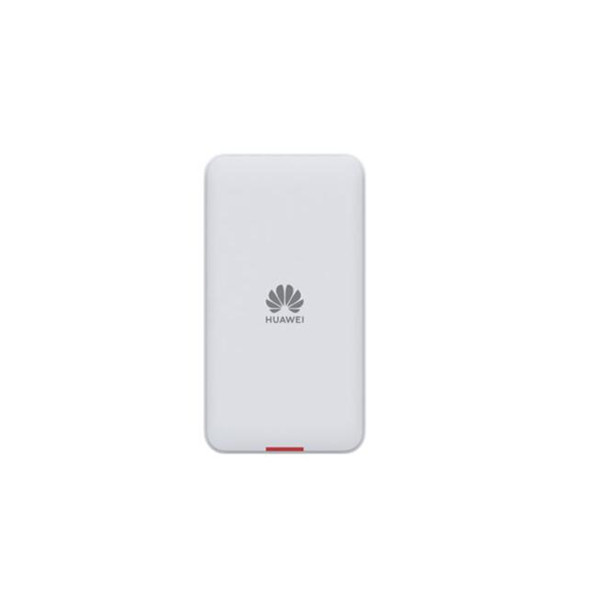

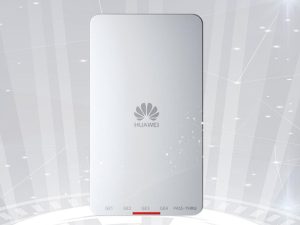

Huawei AirEngine 5761S-11W Product Pictures

Huawei AirEngine 5761S-11W Product Specifications

Summada	Huawei
model	AirEngine 5761S-11W
Cabirka (W x D x H)	86mm×38mm×160mm
gelin koronto	DC: 12V±10% Korontada PoE: Meet 802.3af Power over Ethernet standard Ogow: When 802.3af, the USB function is limited
Isticmaalka tamarta ugu badan	12.7W (marka laga reebo USB) Ogow: The actual maximum power consumption varies according to the regulations of different countries and regions
maximum number of users	<=1024 Ogow: There are differences in the actual number of users in different environments
Heerkulka shaqada	0℃ ～+40℃
Nooca anteenada	Built-in smart antenna
MIMO: Spatial Streaming	2.4GHz: 2×2:2，5GHz：2×2:2
wireless protocol	802.11a/b/g/n/ac/ac wave2/ax
top speed	1.775Gbps

Huawei AirEngine 5761S-11W Product Features

• Smart antenna

The built-in dual-band common-port smart antenna automatically suppresses interference, increases the coverage radius by 20%, and increases the signal strength at the same location by 100%, providing users with stable coverage without dead ends.

• Rich interface

Provide 1x1GE electrical port, 4xGE downlink port, 2xRJ45 straight-through port (waafaqsan RJ11)

• Cloud management

Aaladaha iyo adeegyada AP waa la maarayn karaa oo lagu hayn karaa iyada oo loo marayo habka maamulka ee Cloud HUAWEI, badbaadinta hawlgalka shabakada iyo kharashka dayactirka

Huawei AirEngine 5761S-11W and More Indoor Access Points

Huawei AirEngine 5760-22W Access Point

Huawei AirEngine 5761-12W Access Point

Huawei AirEngine 5761-11W Access Point

Huawei AirEngine 5761S-11W Access Point

Huawei AirEngine 5762-12SW Access Point

Huawei AirEngine 5762-13W Access Point

Huawei AirEngine 5762-15HW Access Point

Huawei AirEngine 5761S-11W Product Applications
