Sharaxaada

Awoodda sare ee EDFA 32 Port is high output power C-Band Er-Yb co-doped double cladding optical fiber amplifier.

Awoodda sare ee EDFA 32 Port Product Overview

This amplifier employs double cladding Erbium Ytterbium co-doped fiber, and employ the high power multimode pump, with a 10 times Conversion efficiency higher than the single mode general technology, and therefore have a lower relative cost and more compact size and lower power consumption, in particular, for FTTH or FTTB or other large distribution system applications. The key components of the product are high reliability multimode PUMP laser and the double cladding optical fiber. A proprietary ATC (Automatic Temperature Control) and APC (Automatic Power Control) circuit insures the high stability and reliability output power, the unique optical circuit design ensures the excellent optical performance. The high stability and high precision MPU system to ensure the control, adjustment and display are intelligent and easy.

This amplifier employ double cladding Erbium Ytterbium co-doped fiber, and employ the high power multimode pump, with a 10 times Conversion efficiency higher than the single mode general technology, and therefore have a lower relative cost and more compact size and lower power consumption, in particular, for FTTH or FTTB or other large distribution system applications.

Awoodda sare ee EDFA 32 Dekedda
Awoodda sare ee EDFA 16 Dekedda

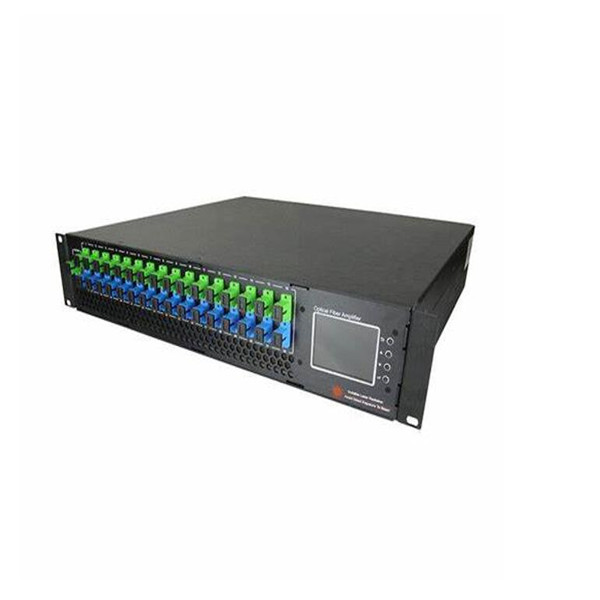

Awoodda sare ee EDFA 32 Port Product Pictures

Awoodda sare ee EDFA 32 Port price and specs ycictAwoodda sare ee EDFA 32 Port price and specs good quality ycict

Awoodda sare ee EDFA 32 Port new and original ycictAwoodda sare ee EDFA 32 Dekedda 16 port price and specs ycict

Awoodda sare ee EDFA 32 Port Product Specifications

Shayga Unug Technique parameters Remark
Operating bandwidth nm 1530 – 1560
Optical input power range dBm -13
Maximum optical output power dBm 39
Output power stability dBm ±0.5
Sawirka qaylada dB ≤ 5.0 Optical input power 0dBm, λ=1550nm
Soo celi khasaaraha Input dB ≥ 45
Output dB ≥ 45
Nooca Xidhiidhiyaha indhaha SC/APC
C/N dB ≥ 50 Test condition according to
C/CTB dB ≥ 63 GT/T 184-2002.
C/CSO dB ≥ 63
Korontada sahayda V A: AC160V – 250V (50 Hz)
B: DC48V
Operating temperature range °C -52
Maximum operating relative humidity % Max 95% uumi
Storage temperature range °C -100
Maximum storage relative humidity % Max 95% uumi
Cabirka mm 483(L) × 440(W) × 88(H)

Awoodda sare ee EDFA 32 Port Product Features

  • High Power：Up to 2W total，1 Unit for 2000～4000 optical node
  • Low Noise Figure：Below 5.5dB ( +5dBm input)
  • Er Yb co-doped DCF Amplify Technology：Patent Pump Dump Technology
  • Low CSO: ＜-70dBc
  • 23dBm×N，20dBm×N or 17dBm×N output is optional
  • Controllability and maneuverability: Dual CPU to deal Control loop and Communication separately
  • High Stability And Reliability：MTTF＞150000 Hours
  • Redundancy Hot Swap power module: 110/220VAC and 48VDC can plug Mix
  • Perfect Network Interface：Ethernet
  • Support SNMP network management
  • Intelligent Temperature Control System: using a dedicated Temperature control chip which make
  • cooling and power loss reduce 30% than competitors
  • Output Power can be Adjustable by network and manual
  • Integrated 1310nm，1490nm，1550nm WDM (Ikhtiyaar ah)
  • OEM, Module is available

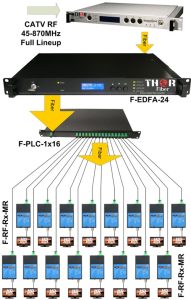

Awoodda Sare ee EDFA 32 Port Product Applications

  • Analog CATV Transmission
  • FTTH Optical Access
  • Optical Distribution
  • Free Space Optical
  • R&D and Training

Awoodda sare ee EDFA 32 Port Product Applications

Awoodda sare ee EDFA 32 Dekedda 16 port price and specs ycict
