Name: GYTY53 Armored Cable
SKU: 110
Price: 1.59 USD
Availability: InStock

GYTY53 Cable gaashaman

Qaybta: Cable Tags: Helitaanka Shabakadda, Xadhkaha Fiberka, FTTH, OLT

Sharaxaada
Weydiin
Lifaaqa

Sharaxaada

GYTY53 Armored Cable is Stranded Loose Tube Armored Cable（GYTA53）

GYTY53 Armored Cable Product Overview

GYTY53 fiber optic cable is the type of fiber optic cable used to transmit data over is long distance. Caadiyan, the fiber cables are buried underground to minimize the chances of any external damages.

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tuubooyinka (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

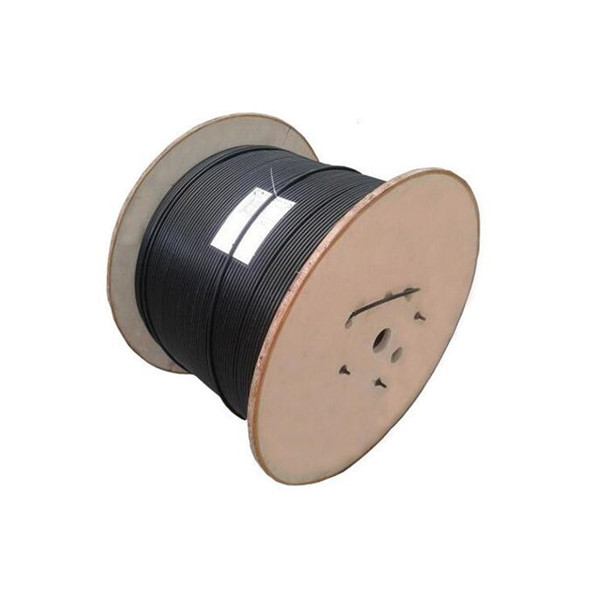

GYTY53 Armored Cable Product Pictures

GYTY53 Armored Cable Optical Cable price ycict GYTY53 Armored Cable fiber optic ycict

GYTA Qiimaha aan gabbaadka lahayn iyo faahfaahinta xadhigga indhaha GYTA Non-armored Outdoor Optical Cable YCICT

GYTY53 Armored Cable Product Specifications

		C14G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Fasalka A)	@850nm			≥500 MHz·km	≥200 MHz · km
Bandwidth (Fasalka A)	@1300nm			≥1000 MHz · km	≥600 MHz · km
Aperture tirooyinka				0.200±0.015NA	0.275±0.015NA
Mawjada dhererka Cable-ka-goynta		≤1260nm	≤1480nm

Nooca Cable	Tirada Fiber	Tuubooyinka	Buuxiyeyaasha	Dhexroorka fiilada mm	Miisaanka Cable-ka kg/km	Xooga Jilicsan Muddada Dheer/Gaaban N	Crush Resistance Muddada Dheer/Gaaban N/100mm	Qallooca Radius Joogto/Dhaqdhaqaaq leh
GYTY53-2~6	2~6	1	5	13.8	188	1000/3000	1000/3000	10D/20D
GYTY53-8~12	8~12	2	4	13.8	188	1000/3000	1000/3000	10D/20D
GYTY53-14~18	14~18	3	3	13.8	188	1000/3000	1000/3000	10D/20D
GYTY53-20~24	20~24	4	2	13.8	188	1000/3000	1000/3000	10D/20D
GYTY53-26~30	26~30	5	1	13.8	188	1000/3000	1000/3000	10D/20D
GYTY53-32~36	32~36	6	0	13.8	188	1000/3000	1000/3000	10D/20D
GYTY53-38~48	38~48	4	1	14.6	206	1000/3000	1000/3000	10D/20D
GYTY53-50~60	50~60	5	0	14.6	206	1000/3000	1000/3000	10D/20D
GYTY53-62~72	62~72	6	0	15	215	1000/3000	1000/3000	10D/20D
GYTY53-74~84	74~84	7	1	16.4	254	1000/3000	1000/3000	10D/20D
GYTY53-86~96	86~96	8	0	16.4	254	1000/3000	1000/3000	10D/20D
GYTY53-98~108	98~108	9	1	17.8	290	1000/3000	1000/3000	10D/20D
GYTY53-110~120	110~120	10	0	17.8	290	1000/3000	1000/3000	10D/20D
GYTY53-122~132	122~132	11	1	19.5	340	1000/3000	1000/3000	10D/20D
GYTY53-134~144	134~144	12	0	19.5	340	1000/3000	1000/3000	10D/20D
GYTY53-146~216	146~216			19.5	345	1000/3000	1000/3000	10D/20D

GYTY53 Armored Cable Product Features

Kala firdhisanaan hoose iyo hoos u dhac
Naqshadaynta saxda ah, Xakamaynta saxda ah ee dhererka xad-dhaafka ah ee fiber-ka iyo habka dhuuban ee kala duwan ayaa ka dhigaya fiilada siyaalo farsamo iyo deegaan aad u fiican
Double-jacket structure make cable have nice properties of moisture resistance and crush resistance
Dhexroorka fiilada yar, miisaanka xadhig khafiif ah, si fudud loo jiifsado
Heerkulka shaqada: -40 ~ +60 ℃
Steel wire strength. filler protect tube fiber. steel tape armord
Good ultra violet radiation resistant property.
