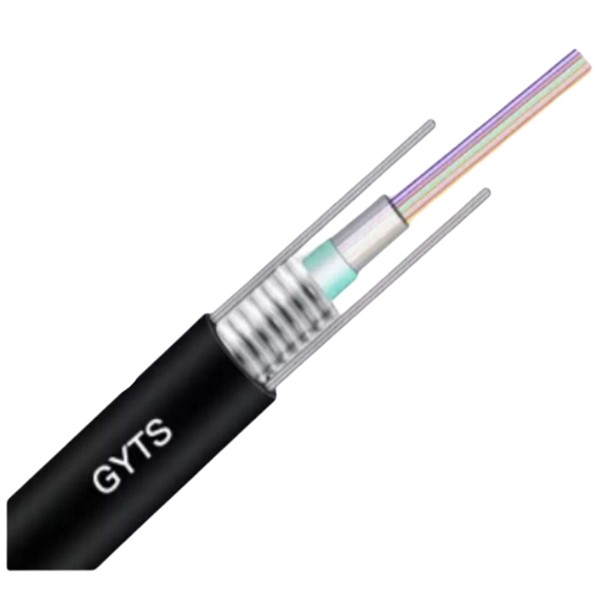

GYTS-288Xn Optic Cable is Stranded Loose Tube Light-armored Cable
GYTS-288Xn Optic Cable Product Overview
GYTS cable, single-mode/multimode fibers are positioned in the loose tubes, which are made of high modulus plastic materials, while the loose tubes strand together around metallic central strength member into a compact and circular cable core. For certain high fiber count cables, the strength member would be covered with polyethylene (PE). The water blocking materials are distributed into interstices of the cable core, and the PSP is longitudinally applied around the cable core before a HDPE sheath is extruded over it.

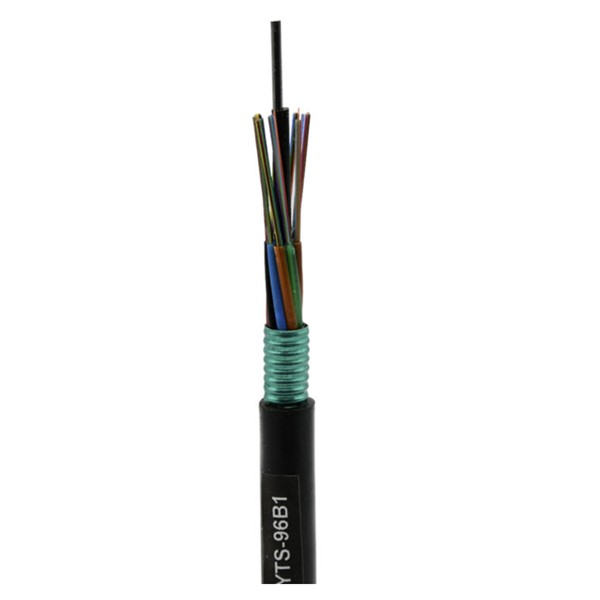

GYTS-288Xn Optic Cable Product Pictures
GYTS-288Xn Optic Cable Product Specifications
| Fiber Optic Cable Model (in 2-fiber kordhin) | Tirada fiilooyinka | Tirada daasadaha | Tirada xadhkaha buuxinta | Miisaanka fiilada tixraaca (kg/km) |
Xoog xajin waa la ogol yahay Muddada dheer/waqtiga-gaaban (N) |
Awood la ogolyahay in la xoqdo Muddada dheer/waqtiga-gaaban (N/100mm) |
leexo raadiyaha Joogto/Dhaqdhaqaaq leh (mm) |
|
| GYTS-2~6Xn | 2~6 | 1 | 4 | 96 | 600/1500 | 300/1000 | 10D/20D | |
| GYTS-8~12Xn | 8~12 | 2 | 3 | 96 | ||||
| GYTS-14~18Xn | 14~18 | 3 | 2 | 96 | ||||
| GYTS-20~24Xn | 20~24 | 4 | 1 | 96 | ||||
| GYTS-26~30Xn | 26~30 | 5 | 0 | 96 | ||||
| GYTS-32~36Xn | 32~36 | 6 | 0 | 105 | ||||
| GYTS-38~48Xn | 38~48 | 4 | 1 | 111 | ||||
| GYTS-50~60Xn | 50~60 | 5 | 0 | 111 | ||||
| GYTS-62~72Xn | 62~72 | 6 | 0 | 138 | ||||
| GYTS-74~84Xn | 74~84 | 7 | 1 | 168 | ||||
| GYTS-86~96Xn | 86~96 | 8 | 0 | 168 | ||||
| GYTS-98~108Xn | 98~108 | 9 | 1 | 195 | ||||
| GYTS-110~120Xn | 110~120 | 10 | 0 | 195 | ||||
| GYTS-122~132Xn | 122~132 | 11 | 1 | 228 | ||||
| GYTS-134~144Xn | 134~144 | 12 | 0 | 228 | ||||
| GYTS-146~216Xn | 146~216 | 13~18 | 5~0 | 228 | ||||
| GYTS-288Xn | 288 | 24 | 0 | 283 | ||||
| Nooca Fiber | attenuation （+20℃） | baaxadda | Aperture tirooyinka | Fiber optic cable oo goysa dhererka hirarka | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | - | - | ≤0.36dB/km | ≤0.22dB/km | - | - | - | ≤1260nm |
| G.655 | - | - | ≤0.40dB/km | ≤0.23dB/km | - | - | - | ≤1450nm |
| 50/125µm | ≤3.0dB/km | ≤1.0dB/km | - | - | ≥500MHz·km | ≥500MHz·km | 0.200± 0.015 NA | - |
| 62.5/125µm | ≤3.3dB/km | ≤1.0dB/km | - | - | ≥200MHz·km | ≥500MHz·km | 0.275± 0.015 NA | - |
GYTS-288Xn Optic Cable Product Features
- Sifooyin farsamo oo aad u wanaagsan iyo sifooyinka heerkulka
- Maaddada tuubada dabacsan lafteedu waxay leedahay caabbinta hydrolysis wanaagsan iyo xoog sare
- The tube is filled with a special ointment to protect the optical fiber
- The specially designed tight cable structure effectively prevents the casing from retracting
- Good compression resistance and softness
- The PE sheath has very good resistance to UV radiation
- The following measures are taken to ensure the waterproof performance of the fiber optic cable
- Single wire center reinforcing core
- The loose tube is filled with a special waterproofing compound
- Full core filling
- Double-sided plastic-coated steel tape armor
GYTS-288Xn Optic Cable Product Applications
- Codsiga: dhuumaha, overhead, direct burial
- Long-distance communication and Local communication
- Especially suitable for occasions with high requirements for moisture-proof and rodent-proof

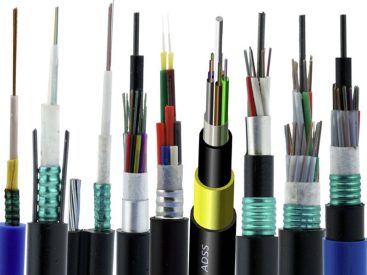

GYTS-288Xn Optic Cable Product and More Optic Cables
