Sharaxaada
GYFTZA53-74~84Xn Optic Cable is Loose sleeve stranded non-metallic reinforced core armored flame retardant optical cable applied for pipeline, overhead, direct burial
GYFTZA53-74~84Xn Optic Cable Product Overview
GYFTZA53-74~84Xn Optic Cable is designed for superior performance and durability in outdoor communication networks. Colored optical fibers are housed in a high-modulus loose tube filled with thixotropic gel, providing excellent sealing and water-blocking protection. At the core, a non-metallic strength member (FRP) offers outstanding tensile strength and structural stability without electromagnetic interference.
The loose tube and filler ropes are stranded around the central core to form a compact, circular cable structure, with the interstices filled with water-blocking gel for enhanced moisture resistance. A coated aluminum tape is longitudinally wrapped and covered with a polyethylene inner sheath, providing an additional layer of protection. The cable is further reinforced with double-sided coated steel tape armor, forming a robust, flame-retardant outer layer to ensure safety and reliability in high-risk environments.

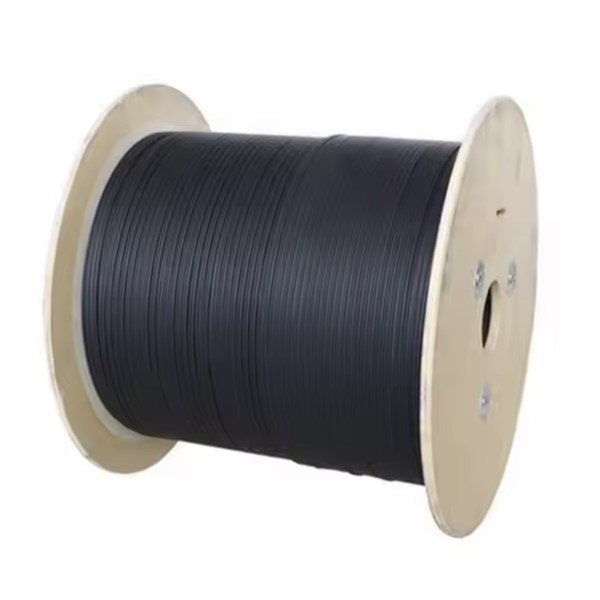

GYFTZA53-74~84Xn Optic Cable Product Pictures
GYFTZA53-74~84Xn Optic Cable Product Specifications
| Qaabka Fiber optic cable (in 2-fiber kordhin) |
Tirada fiilooyinka | Tirada daasadaha | Number of infill ropes | Reference cable weight （kg/km） | Xoog xajin waa la ogol yahay Muddada dheer/waqtiga-gaaban (N) |
Awood la ogolyahay in la xoqdo Muddada dheer/waqtiga-gaaban (N/100mm) |
leexo raadiyaha Joogto/Dhaqdhaqaaq leh (mm) |
|
| GYFTZA53-2~6Xn | 2~6 | 1 | 7 | 275 | 1000/3000 | 1000/3000 | 12.5D/25D | |
| GYFTZA53-8~12Xn | 8~12 | 2 | 6 | 275 | ||||
| GYFTZA53-14~18Xn | 14~18 | 3 | 5 | 275 | ||||
| GYFTZA53-20~24Xn | 20~24 | 4 | 4 | 275 | ||||
| GYFTZA53-26~30Xn | 26~30 | 5 | 3 | 275 | ||||
| GYFTZA53-32~36Xn | 32~36 | 6 | 2 | 275 | ||||
| GYFTZA53-38~42Xn | 38~42 | 7 | 1 | 275 | ||||
| GYFTZA53-44~48Xn | 44~48 | 8 | 0 | 275 | ||||
| GYFTZA53-50~60Xn | 50~60 | 5 | 3 | 290 | ||||
| GYFTZA53-62~72Xn | 62~72 | 6 | 2 | 290 | ||||
| GYFTZA53-74~84Xn | 74~84 | 7 | 1 | 290 | ||||
| GYFTZA53-86~96Xn | 86~96 | 8 | 0 | 290 | ||||
| GYFTZA53-98~108Xn | 98~108 | 9 | 1 | 327 | ||||
| GYFTZA53-110~120Xn | 110~120 | 10 | 0 | 327 | ||||
| GYFTZA53-122~132Xn | 122~132 | 11 | 1 | 384 | ||||
| GYFTZA53-134~144Xn | 134~144 | 12 | 0 | 384 | ||||
| Nooca Fiber | Attenuation （+20℃） | Bandwidth | Numerical aperture | Fiber optic cable oo goysa dhererka hirarka | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | - | - | ≤0.36dB/km | ≤0.22dB/km | - | - | - | ≤1260nm |
| G.655 | - | - | ≤0.40dB/km | ≤0.23dB/km | - | - | - | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | - | - | ≥500MHz·km | ≥500MHz·km | 0.200± 0.015 NA | - |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | - | - | ≥200MHz·km | ≥500MHz·km | 0.275± 0.015 NA | - |
GYFTZA53-74~84Xn Optic Cable Product Features
- Non-Metallic Central Reinforcing Core (FRP): The central strength member is a non-metallic FRP (Fiber Reinforced Plastic) xudunta u ah, offering excellent tensile strength and structural integrity without electromagnetic interference. Exceptional Mechanical and Temperature Performance:
- Engineered to perform reliably under mechanical stress and across a wide range of temperatures, making it suitable for various outdoor environments.
- Moisture-Resistant Aluminum Tape Coating: Longitudinally wrapped coated aluminum tape provides effective moisture resistance, enhancing the cable’s durability in wet conditions.
GYFTZA53-74~84Xn Optic Cable Product And More Optic Cables
Stranded Loose Jacket Non–Metallic Reinforced Xudunta Non–Armoured Flame Retardant Fiber Optic Cable (GYFTZY)
Loose sleeve stranded reinforced core armored flame retardant optical cable(GYTZA53)
Stranded Flame Retardant Fiber Optic Cable (GYTZS)
Stranded loose jacket non-armoured flame retardant fiber optic cable (GYTZA)
Stranded loose sleeve non-metallic reinforced core armored fiber optic cable (GYFTA53)
Stranded non-metallic reinforcing core plain armored fiber optic cable (GYFTY53)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (GYFTA)
Loose sleeve stranded non-metallic reinforced core optical cable (GYHTY)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (GYFTY)
Loose sleeve stranded single thin round steel wire armored fiber optic cable (GYTA53 33)
Loose Sleeve Stranded Reinforced Armoured Fiber Optic Cable(GYTA53)
Loose sleeve stranded ordinary armored fiber optic cable(GYTY53)

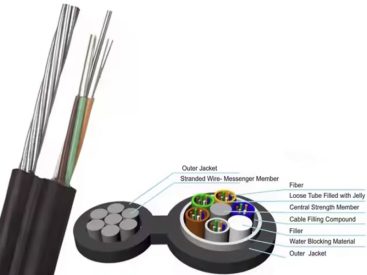

GYFTZA53-74~84Xn Optic Cable Product Structure
