DAC QSFP-4SFP25G-CU3M is 100G QSFP to 4xSFP25G Passive Copper Splitter Cable, 2.5-meter

DAC QSFP-4SFP25G-CU2.5M Product Overview

QSFP-100G to four SFP-25G copper direct-attach breakout cables is suitable for very short links and offer a cost-effective way to connect within racks and across adjacent racks.The breakout cable connect to a 100G QSFP port of a switch on one end and to four 25G SFP ports of a switch/server on the other end. We currently offer passive cables in lengths of x=1, 1.5, 2, 2.5, 3 iyo 5 mitir.

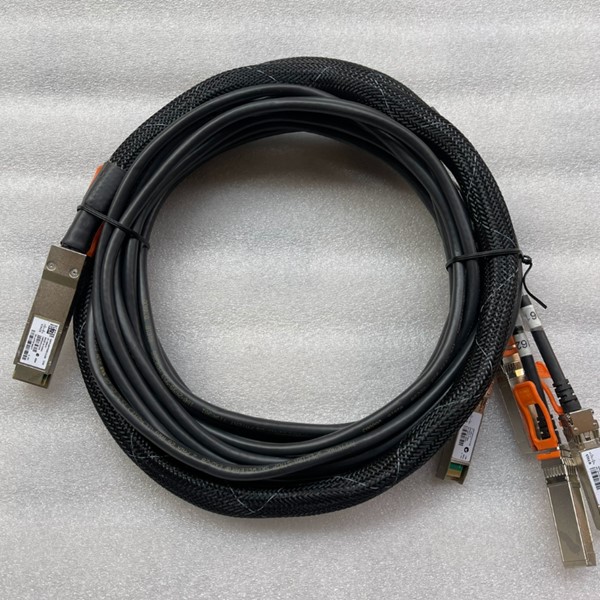

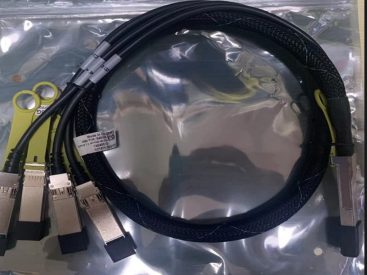

DAC QSFP-4SFP25G-CU2.5M Product Pictures

QSFP-4SFP25G-CU2.5M price and specs ycictQSFP-4SFP25G-CU2.5M price and specs

DAC QSFP-4SFP25G-CU2.5M price and specs ycictDAC QSFP-4SFP25G-CU2.5M

DAC QSFP-4SFP25G-CU2.5M Product Specifications

Magaca model Q4SFP-100G-CU1
Nooca Interface QSFP28 to 4xSFP28
Laab laabashada ugu yar 25mm
Dhererka fiilada 2.5m
Nooca fiilada Xadhkaha naxaasta ah ee dadban
isticmaalka tamarta <0.1W
sumadda NADDOD
Heerka gudbinta 100Gbps-4x25Gbps
Silig cabbiraha 30AWG
Maaddada galkeeda dibadda PVC (OFNR)
Heerkulka shaqada 0~70°C
borotokoolka SFF-8402, SFF-8665, 100G/25G Ethernet

DAC QSFP-4SFP25G-CU2.5M Product Features

  • Available in hot-swappable QSFP28/SFP28 packages
  • Four-channel NRZ modulation
  • Compliant with SFF-8402, SFF-8665 and 100G/25G Ethernet standards
  • RoHS waafaqsan (hogaan la'aan)
  • The power supply voltage is 3.3V
  • Enhanced EMI/EMC performance
  • Interface maamulka I2C

DAC QSFP-4SFP25G-CU2.5M and More breakout cables

QSFP-4SFP25G-CU1M 100G QSFP to 4xSFP25G Passive Copper Splitter Cable, 1-meter
Q-4SFP25G-CU1.5M 100G QSFP to 4xSFP25G Passive Copper Splitter Cable, 1.5-meter
QSFP-4SFP25G-CU2M100G QSFP to 4xSFP25G Passive Copper Splitter Cable, 2-meter
Q-4SFP25G-CU2.5M 100G QSFP to 4xSFP25G Passive Copper Splitter Cable, 2.5-meter
QSFP-4SFP25G-CU3M 100G QSFP to 4xSFP25G Passive Copper Splitter Cable, 3-meter
QSFP-4SFP25G-CU5M 100G QSFP to 4xSFP25G Passive Copper Splitter Cable, 5-meter

DAC QSFP-4SFP25G-CU2.5M Product Applications

DAC QSFP-4SFP25G-CU2.5M application
