Opis

ZXHN F643 FTTH je optični omrežni terminal GPON ( 1GE), zasnovan za HGU (Domača prehodna enota) used in FTTH scenario

ZXHN F643 FTTH Product Overview

ZXHN F643 FTTH s a GPON Optical Network Terminal designed for FTTH scenario. It provides high-performance forwarding capabilities to ensure excellent experience with Internet and HD video services. It has a small, smart appearance and green, energy-saving advantage.

OLT is an optical-access platform with large capacity and high density. Numerous access approaches are supported and the triple-play services can be realized. The customized scenarios are provided for various networks demands.

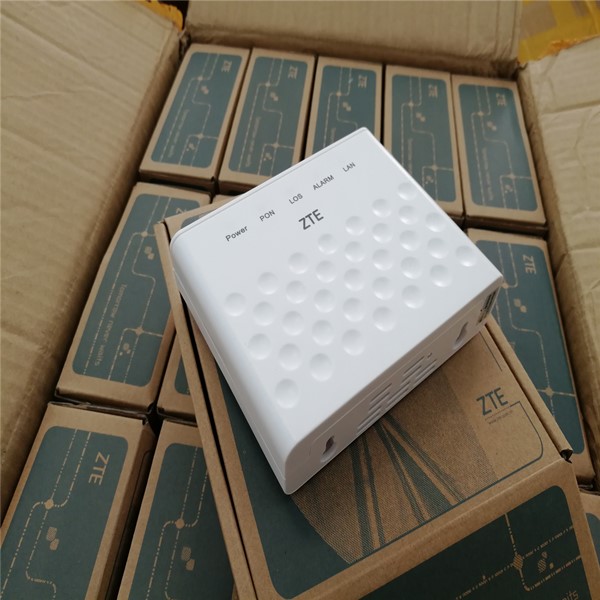

ZXHN F643 FTTH Product Pictures

ZTE ZXHN F643 FTTH 1GE PORT YCICT ZTE FTTH ONUZTE ZXHN F643 FTTH YCICT 1GE PORT ONU ONT FTTH YCICT

ZTE ZXHN F643 FTTH YCICT 1GE PORT 643 FTTH ONT ONU ZTE ZXHN F643 FTTH YCICT ONT ONU FTTH ZTE 1GE PORT

ZXHN F643 FTTH Product Specifications

Model ZXHN F643
GPON vmesnik Optična vrata: 1 x GPON vmesnik (SC/PC)
Razdalja prenosa 0 ~ 20 km
Hitrost prenosa: 2.488Gbps navzdol; 1.244Gbps navzgor
Uporabniško-omrežni vmesnik 1 x10/100/1000Base-T
Pol/polni dupleks; Samodejni MDI/MDIX; Samodejno pogajanje
Optični modul Prejemanje: 1480~1500 nm
Oddajanje: 1290~1330 nm
Prejemna občutljivost: -28dBm
Prenos optične moči: 0.5~5 dBm
Glavna funkcija Podprta storitev: Internet, IPTV
VLAN: 802.1Q, 802.1p, 802.1oglas
Tabela naslovov MAC: 256
Multicast: IGMP v1/v2/v3 Snooping
Multicast group: 256
QoS: service flow classification based on physical port, Ethernet type; ingress rate limit; egress shaping
Upravljanje: lokalno spletno upravljanje, OMCI
Physical Performance Poraba energije: <3W
Dimenzije: 130mm(W) x 40mm(H) x103mm(D)
Delovna temperatura: 0℃ ~ 40℃
Delovna vlažnost: 5% ~ 95%
Utež: about 0.2Kg
Napajanje: 12V DC
Način montaže: Namizna/stenska montaža

ZXHN F643 FTTH Product Features

  • Green Design
    Green design for ZTE ZXHN F643 FTTH is showed for saving energy. The main aspects are: While few data frames are switching and ONT is on a relative idle status, the power component will be in dozing mode to save power.
  • High Reliability
    ZTE ZXHN F643 FTTH provides full-service access, high bandwidth, visokozmogljivo, visoka zanesljivost, easy operation and maintenance, to meet customers evolving requirements, fully protect the investment and enhance the value of the fixed network for operators.
  • Easy Operation and Maintenance
    ZTE ZXHN F643 FTTH supports batch-update, fault diagnosis and loop routes checking remotely by OMCI.
    ZTE ZXHN F643 FTTH can also be updated and managed in batches through OLT or EMS.
    ZTE ZXHN F643 FTTH supports off-line configuration and Batch configuration, Zero-touch configuration in the field and automatic release and opening of service.

ZXHN F643 FTTH and More Models

EPON ONT

F401 EPON ONT, 1 LAN English Firmware

F411 EPON ONT, 1 L AN+ 1*VOICE Angleščina Firmware SIP

F412 EPON ONT, 2 LAN+VOICE angleška vdelana programska oprema SIPF

F420 EPON ONT, 4 LAN+ 2VOICE Angleščina Firmware SIP

F460 EPON ONT, 4 L AN+ 2VOICE+WIFI Angleščina Firmware SIP

F427 EPON ONT, 4 L AN+ 2VOICE +WlFI angleška vdelana programska oprema SIPZTE GPON ONT

GPON ONT

F601 GPON ONT, 1 LAN English Firmware

F612 GPON ONT, 2 L AN+VOICE angleška vdelana programska oprema SIP

F600 GPON ONT, 4 L AN Angleška vdelana programska oprema

F620 GPON ONT, 4 L AN+2VOICE angleška vdelana programska oprema SIP

F620G GPON ONT, 4 GE+2VOICE angleška vdelana programska oprema SIP

F660 V5.2 GPON ONT, 4 L AN+ 2VOICE+WlFI+USB angleška vdelana programska oprema SIP

F609 GPON ONT, 4 GE+2VOlCE+WlFI+USB angleška vdelana programska oprema SIP

F660 V6.0 GPON ONT, 1 GE+3FE+2VOlCE+WlFI+USB angleška vdelana programska oprema SIP

F625 GPON ONT, 4 LAN+2GLAS+RF(nekaj) Angleška strojna programska oprema SIP

F668 GPON ONT, 4 L AN+2GLAS+RF(nekaj) +WlFI angleška vdelana programska oprema SIP

ZXHN F663NV3a FTTH 1GE+3FE LAN vrata + 2.4G WIFI angleška vdelana programska oprema

ZXHN F663NV9 FTTH 2GE+2FE LAN vrata + 2.4G WIFI angleška vdelana programska oprema

F670L GPON ONU 4GE+1tel +USB+WIFI dual band ac wifi 2.4G &5G

F680 GPON ONU GPON 4GE+1TEL+2.4G&5.0G WIFI+2USB

ZXHN F643 FTTH Product Applications

ZTE ZXHN F643 FTTH YCICT NEW AND ORIGINAL F643 PRICE

ZTE ZXHN F643 FTTH YCICT F643 ONT ONU FTTH YCICT
