SIMCom SIM7500A-PCIE Module is a LTE Cat 1 module with LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE etc, and delivers maximum 10Mbps downlink rate and 5Mbps uplink rate.

SIMCom SIM7500A-PCIE Module Product Overview

The module adopts mini PCIE form factor, and integrates multiple built-in network protocols and drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function. Dodatno, AT commands are compatible with SIM7600/SIM7600-H series modules. SIM7500A-PCIE integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, GPIO. Zato, it is suitable for main IoT applications such as telematics, surveillance devices and remote diagnostics etc.

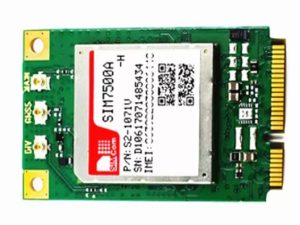

SIMCom SIM7500A-PCIE Module Product Pictures

SIMCom SIM7500A-PCIE Module CAT1 MINI PCIE FORM FACTOR YCICTSIMCom SIM7500A-PCIE Module price and specs new and original ycict

SIMCom SIM7500JE LGA Module Price and specs LTE Cat 1 max 10Mbps DL rate and 5Mbps UL rate SIMCom ycictSIMCom SIM7600SA-PCIE 4G modul cena in specifikacije cat1 pcie oblika faktor dobra cena ycict

SIMCom SIM7500A-PCIE Module Product Specifications

Znamka SIMCom
Izdelek SIM7500A-PCIE
Faktor oblike Mini PCIE
Dimenzije(mm) 50.8*30*5.35
Frekvenčni pasovi LTE-FDD B2/B4/B12
WCDMA B2/B5
Temperatura -40℃ ~ +85 ℃
GNSS Neobvezno
Napajalna napetost(V) 3.0~ 3.6
Poraba energije(mA) LTE 1.6
WCDMA,DRX=9 3.3
GSM, BS_PA_
MFRMS=2
LTE(Mb/s) 10(DL)/5(UL)
HSPA+(Mb/s) 42(DL)/5.76(UL)
WCDMA(Kbps) 384(DL)/384(UL)
Protokol TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS
Android RIL Android 5.0/6.0/ 7.0/8.0/9.0
gonilnik USB Microsoft Windows 7/8/10Linux/ Android
MBIM Win8/Win10
NDIS Linux/Windows 7/8/10
Nadgradnja vdelane programske opreme USB/FOTA
SIM kartica 1.8V/3,0 V
Regulativni FCCICPTCRBRoHSREACHAT&TRogers
Nosilec AT&T/Rogers

SIMCom SIM7500A-PCIE Module Product Features

  • Mini-PCIE interface with strong compatibility
  • Multi-constellation GNSS receiver support*
  • Suitable for LTE, UMTS and GSM networks with global coverage
  • Obilje funkcij programske opreme: NOGA, LBS, TLS, VoLTE*
  • AT commands of the SIM7500-PCIE series are compatible with the SIM7600/SIM7600-H series modules

SIMCom SIM7500A-PCIE Module Product and More Related Models

SIM7500A-PCIE Mini Pcie Form Factor
SIM7500AD-PCIE Mini Pcie Form Factor
SIM7500V-PCIE Mini Pcie Form Factor
SIM7500SA-PCIE Mini Pcie Form Factor
SIM7500E-PCIE Mini Pcie Form Factor
SIM7500JC-PCIE Mini Pcie Form Factor
SIM7500JE-PCE Mini Pcie Form Factor

SIMCom SIM7500A-PCIE Module Product Applications
