Opis
Huawei S5720S-52X-PWR-LI-AC Switch is simplified Gigabit Ethernet switch with 48 Ethernet 10/100/1000Base-T ports, 4 10 Gig SFP+ ports AC power supply PoE+ Forwarding performance: 144Mpps Switching Capacity: 336Gbit/s
Huawei S5720S-52X-PWR-LI-AC Switch Product Overview
Huawei S5720S-52X-PWR-LI-AC Switch is simplified Gigabit Ethernet switch with 48 Ethernet 10/100/1000Base-T ports, 4 10 Gig SFP+ ports AC power supply PoE+ Forwarding performance: 144Mpps Switching Capacity: 336Gbit/s. Building on next-generation, high-performance hardware and Huawei Versatile Routing Platform (VRP), S5720S-52X-PWR-LI-AC supports intelligent stack (iStack), flexible Ethernet networking, and diversified security control. Poleg tega, it provides customers with an energy-saving, easy-to-manage, easy-to-expand, and cost-effective gigabit to the desktop solution. Dodatno, S5720S-52X-PWR-LI-AC provides telemetry technology to collect device data in real time and send the data to Huawei campus network analyzer CampusInsight, and supports a variety of intelligent O&M features for audio and video services, including the enhanced Media Delivery Index (eMDI).

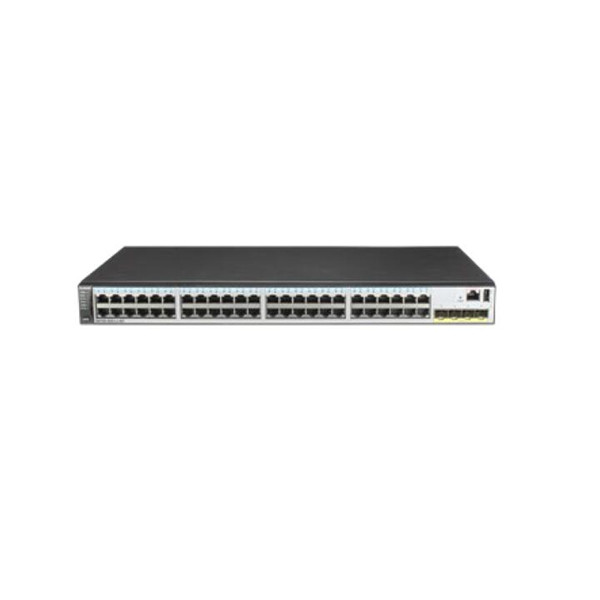

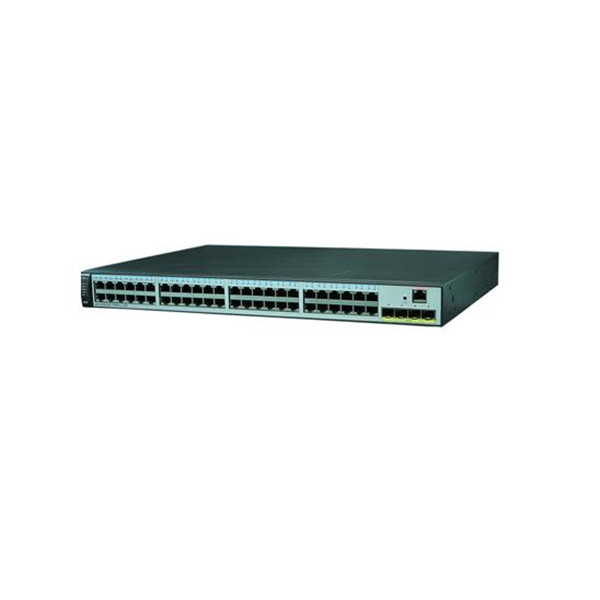

Huawei S5720S-52X-PWR-LI-AC Switch Product Pictures
Huawei S5720S-52X-PWR-LI-AC Switch Product Specifications
| Znamka | Huawei |
| Model | S5720S-52X-PWR-LI-AC |
| Stack vrata | Forty-eight 10/100/1000BASE-T ports and four 10G SFP+ ports |
| Številka dela | 98010617 |
| Spomin (Oven) | 512 MB |
| Flash | 240 MB |
| Povprečni čas med napakami (MTBF) | 38 leta |
| Povprečni čas za popravilo (MTTR) | 2 ure |
| Razpoložljivost | > 0.99999 |
| Prenapetostna zaščita servisnih vrat | Skupni način: ±7 kV |
| Prenapetostna zaščita napajalnika | ±6 kV v diferenčnem načinu, ±6 kV v skupnem načinu |
| Dimenzije (Š x G x V) | 442.0 mm x 310.0 mm x 43.6 mm (17.4 v. x 12.2 v. x 1.72 v.) |
| Utež (including packaging materials) | 5.9 kg (13.01 lb) |
| RTC | Ne podpira |
| RPS | Ne podpira |
| PoE | Podprto |
| Območje nazivne napetosti | 100 V AC do 240 V AC, 50/60 Hz |
| Največje napetostno območje | 90 V AC do 264 V AC, 47 Hz do 63 Hz |
| Največja poraba energije (100% prepustnost, polna hitrost ventilatorjev) | Without PoE: 63.5 W |
| 100% PoE obremenitve: 464.3 W (system power consumption: 94.7 W, PoE: 369.6 W) | |
| Tipična poraba energije (30% of traffic load) Tested according to ATIS standard EEE enabled No PoE power consumption Temperatura skladiščenja |
42.2 W |
| Temperatura skladiščenja | -40°C do +70 °C (-40°F do +158 °F) |
| Hrup pri normalni temperaturi (27°C, zvočna moč) | less than 48.3 dBA |
| Relativna vlažnost | 5% do 95%, nekondenzacijski |
| Delovna višina | 0-5000 m (0-16404 ft.) |
Huawei S5720S-52X-PWR-LI-AC Switch Product Features
- Huawei S5720S-52X-PWR-LI-AC Switch supports the sFlow function. Uporablja metodo, definirano v standardu sFlow, za vzorčenje prometa, ki poteka skozenj, in pošiljanje vzorčenega prometa v zbiralnik v realnem času. Zbrana statistika prometa se uporablja za izdelavo statističnih poročil, pomaga podjetjem vzdrževati njihova omrežja
- Huawei S5720S-52X-PWR-LI-AC Switch supports intelligent stack (iStack). This technology combines multiple switches into a logical switch. Članska stikala v skladu izvajajo varnostno kopiranje redundance za izboljšanje zanesljivosti naprave in uporabljajo združevanje povezav med napravami za izboljšanje zanesljivosti povezave.
- Huawei S5720S-52X-PWR-LI-AC Switch supports a variety of intelligent O&M features for audio and video services, including the enhanced Media Delivery Index (eMDI). With this eDMI function, the switch can function as a monitored node to periodically conduct statistics and report audio and video service indicators to the CampusInsight platform. In this way, the CampusInsight platform can quickly demarcate audio and video service quality faults based on the results of multiple monitored nodes
Huawei S5720S-52X-PWR-LI-AC Switch Product and More S5720S Switches
Huawei S5720S-52X-PWR-LI-AC Switch Product Applications
