Opis
Huawei S2720-12TP-PWR-EI Switch is a next-generation access switch that provides flexible 100M, GE access ports and GE uplink ports. it has 4×Ethernet 10/100 Base-Tx ports, 4×Ethernet 10/100/1000 Base-T ports, 2×Gig SFP ports, 2×combo Gig ports AC power supply and PoE+
Huawei S2720-12TP-PWR-EI Switch Product Overview
The switch has Forwarding performance: 12.6poslanci , and Switching capacity: 68Gbps. It is well suited for enterprise campus access scenarios, featuring both 100M-to-the-desktop and GE uplink transmission. Dodatno, S2720-12TP-PWR-EI provides a mix of 100M and 1000M ports and offer rich Layer 3 routing protocols, visokozmogljivo, and powerful service processing. The switches can also work as clients in a Super Virtual Fabric (SVF) sistem.

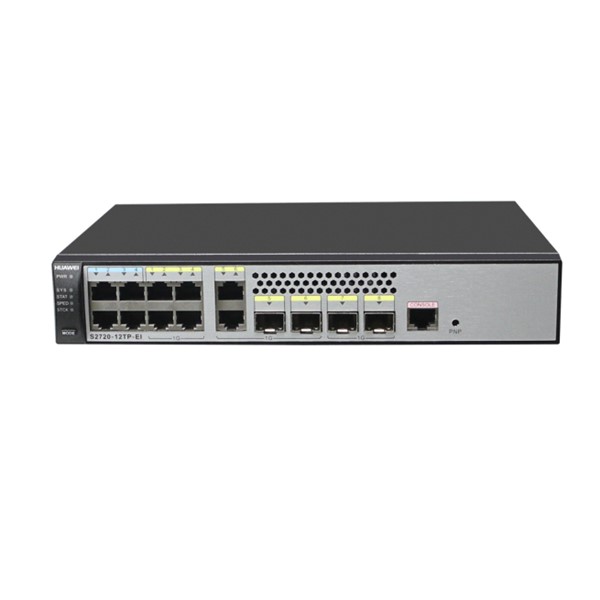

Huawei S2720-12TP-PWR-EI Switch Product Pictures
Huawei S2720-12TP-PWR-EI Switch Product Specifications
| Modeli izdelkov | S2720-12TP-EI S2720-12TP-PWR-EI |
S2720-28TP-PWR-EI-L S2720-28TP-EI S2720-28TP-PWR-EI |
S2720-52TP-EI S2720-52TP-PWR-EI |
| Preklopna zmogljivost | 68 Gbit/s | 68 Gbit/s | 336 Gbit/s |
| Posredovanje uspešnosti | 12.6 mpps | 20.4 mpps | 34.8 mpps |
| Fiksna vrata | Povezava navzdol: 4 x 10/100 Base-TX Ethernet ports; 4 x GE ports | Povezava navzdol: 16 x 10/100 Base-TX Ethernet ports; 8 x GE ports | Povezava navzdol: 32 x 10/100 Base-TX Ethernet ports; 16 x GE ports |
| Navzgornja povezava: 4 x GE ports | Navzgornja povezava: 4 x GE ports | Navzgornja povezava: 4 x GE ports | |
| Tabela naslovov MAC | 16K MAC address entries Configurable aging time of MAC addresses Blackhole MAC address entries Limit on the number of MAC addresses learned on a port |
||
| Funkcije VLAN | 4K VLAN Dodelitev VLAN na podlagi naslovov MAC, protokoli, podomrežja IP, pravila, and interfaces Port-based QinQ |
||
| Usmerjanje IP | Static routing POČIVAJ V MIRU, RIPng, in OSPF |
||
| Interoperabilnost | VLAN-Based Spanning Tree (VBST) (ki sodeluje s PVST, PVST+, in RPVST) Pogajalski protokol tipa povezave (LNP) (podobno kot DTP) VLAN Central Management Protocol (VCMP) (podobno kot VTP) |
||
Huawei S2720-12TP-PWR-EI Switch Product Features
- Diverse Port Types
A mix of 100M and 1000M ports with diverse access ports.
- iStack
Intelligent Stack (iStack) improves device reliability and scalability, while significantly reducing system Operations and Maintenance (O&M) costs. This allows for unified configuration and management of the entire stack system.
- High Performance
Support for Routing Information Protocol (POČIVAJ V MIRU) and Open Shortest Path First (OSPF), offering leading routing performance in the 100M switch field.
Huawei S2720-12TP-PWR-EI Switch and More S2720-EI Models
S2720-12TP-EI
S2720-12TP-PWR-EI
S2720-28TP-EI
S2720-28TP-EI-AC
S2720-28TP-PWR-EI
S2720-28TP-PWR-EI-L
S2720-52TP-EI
S2720-52TP-PWR-EI
Huawei S2720-12TP-PWR-EI Switch Ordering Info
S2720-12TP-EI (4 × Ethernet 10/100 Base-Tx ports, 4 × Ethernet 10/100/1000 Base-T ports, 2 × Gig SFP ports, 2 ×combo Gig ports, AC 110/220V)
S2720-12TP-PWR-EI (4 × Ethernet 10/100 Base-Tx ports, 4 × Ethernet 10/100/1000 Base-T ports, 2 × Gig SFP ports, 2 ×combo Gig ports,124W PoE AC 110/220V)
S2720-28TP-PWR-EI (16 × Ethernet 10/100 Base-Tx ports, 8 × Ethernet 10/100/1000 Base-T ports, 2 × Gig SFP ports, 2 ×combo Gig ports,370W PoE AC 110/220V)
S2720-28TP-EI (16 × Ethernet 10/100 Base-Tx ports, 8 × Ethernet 10/100/1000 Base-T ports, 2 × Gig SFP ports, 2 ×combo Gig ports, AC 110/220V)
S2720-52TP-EI (32 × Ethernet 10/100 Base-Tx ports, 16 × Ethernet 10/100/1000 Base-T ports, 4 × Gig SFP ports,
AC 110/220V)
S2720-52TP-PWR-EI (32 × Ethernet 10/100 Base-Tx ports, 16 × Ethernet 10/100/1000 Base-T ports, 4 × Gig SFP ports, 370W PoE AC 110/220V)
Huawei S2720-12TP-PWR-EI Switch Product Applications
