Opis
Huawei GPHF Service Board is 16-port GPON OLT interface board with C+ SFP module MA5800 series
Huawei GPHF Service Board Product Overview
Huawei GPHF Service Board is a 16-port GPON interface board that works with ONU (Optical Network Unit) devices to implement GPON service access.
The MA5800 multi-service access device is a 4K/8K/VR Ready OLT in the Gigabit Ultra-wide era. It adopts a distributed architecture and supports PON/10G PON/GE/10GE common platform. The MA5800 supports multi-media Gigabit aggregation, optimal 4K/8K/VR video experience, skupna platforma za večstoritveno virtualizacijo, and smooth evolution of 50G PON.
MA5800 series frame products include three sizes: MA5800-X17, MA5800-X7 in MA5800-X2, supporting various networking applications such as FTTB/FTTC/FTTD/FTTH/D-CCAP. The 1U box OLT product MA5801 supports all-optical access coverage in low-density areas.

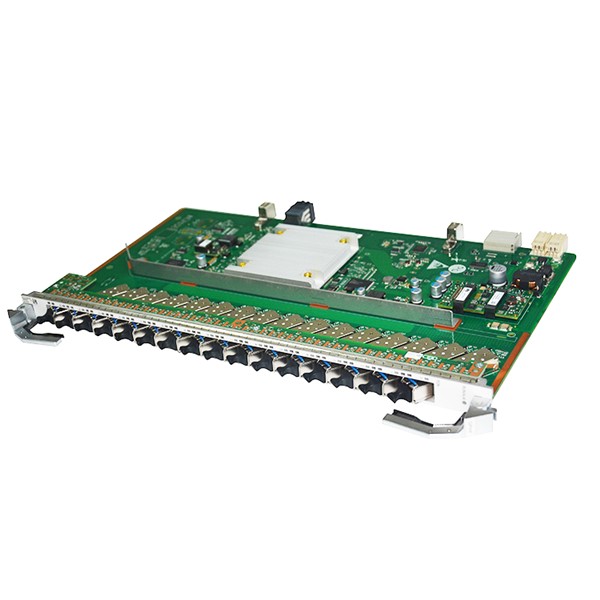

Huawei GPHF Service Board Product Pictures
Huawei GPHF Service Board Product Specifications
| Znamka | Huawei |
| Model | GPHF |
| Vrata GPON | 16-Vrata GPON |
| Vrsta | Modul C+ : Dvosmerni optični modul z enim vlaknom, razred C+ |
| Delovna valovna dolžina | Tx: 1490 nm, Rx: 1310 nm |
| Vrsta enkapsulacije | SFP |
| Port Rate | Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s |
| Najmanjša izhodna optična moč | Modul C+ : 3.00 dBm |
| Največja izhodna optična moč | Modul C+ : 7.00 dBm |
| Največja občutljivost sprejemnika | Modul C+ : -32.00 dBm |
| Vrsta optičnega priključka | SC/PC |
| Vrsta optičnega vlakna | Enojni način |
| Doseg | 20.00 km |
| Preobremenitev optične moči | Modul C+ : -12.0 dBm |
| Razmerje izumrtja | 8.2 dB |
| Dimenzije (Š x G x V) | 23.30 mm * 257.90 mm * 399.20 mm |
| Power Consumption and Maximum Frame Size | |
| Poraba energije | Statično: 25W; Največ:50W |
| Največja velikost okvirja | 2004 bajtov |
| 9216 bajtov (jumbo frame enabled) | |
| Delovna temperatura | -40°C do +65 °C |
Huawei GPHF Service Board Features
- 16 GPON SFP ports
- Največ 1:128 razmerje delitve
- Class B+/C+/C++ one-fiber bi-directional optical modules
- Indikator moči prejetega signala (RSSI) detection and optical signal transmission control of the optical module
- ONU-based traffic shaping
- Temperature reading and high-temperature alarm
- Automatic power-off in case of high temperature
- Upstream and downstream forward error correction (FEC)
- Type B/Type C protection
- L3VPN and D-CCAP networking
- Največ 20 km transmission distance
Huawei GPHF Service Board and other board Comparision
| H901GPHF | H901GPSF | H805GPFD | |
| Pristanišče | 16 GPON ports with SFP optical modules | 16 GPON ports with SFP optical modules | 16 GPON ports with SFP optical modules |
| maks. split radio | Razred B+: 1:64 | Razred B+: 1:64 | Razred B+: 1:64 |
| Razred C+/C++: 1:128 | Razred C+/C++: 1:128 | Razred C+/C++: 1:128 | |
| Sposobnost posredovanja | 40 Gbit/s | 40 Gbit/s | 40 Gbit/s |
| T-CONT na vrata PON | 1024 | 1024 | 1K |
| Storitveni tokovi na ploščo PON | 16384 | 16384 | 16K |
| Maximum frame size | 2004 bajtov | 2004 bajtov | 2004 bajtov |
| 9216 bajtov(jumbo frame enabled) | 9216 bajtov(jumbo frame enabled) | ||
| Največje število naslovov MAC | 131072 | 16384 | 64K |
| Maximum distance difference between two ONUs under the same PON port | 40 km | 40 km | 40 km from V800R013 |
| Queue scheduling hierarchy | 4-level HQoS | 2-hierarchical HQoS | 4-level HQoS |
| IPv6 | Podprto | ||
| OMCI spremenljive dolžine | Podprto | Podprto | Supported from V800R013 |
| 1:64 eOTDR | Podprto (with FBG) | Podprto (with FBG) | Podprto |
| Delovna temperatura | -40°C do +65 °C | -40°C do +65 °C | -25°C do +65 °C |
| Poraba energije | Statično: 25 W | Statično: 25 W | Statično: 26 W |
| Največ: 50 W | Največ: 50 W | Največ: 50 W |

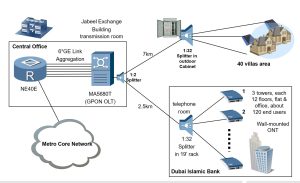

Huawei GPHF Service Board Product Applications
