Huawei CE-SFU08G-G Board

Opis

Huawei CE-SFU08G-G Board is Switch Fabric Unit G for CE16808 Equipment.

Huawei CE-SFU08G-G Board Product Overview

Huawei CE-SFU08G-G Board is Switch Fabric Unit G for CE16808 Equipment. The CE-SFU08G-G functions as the switching unit of the device and is responsible for line-rate switching of the system data plane.

CloudEngine 16800 is Huawei’s first data center switch for the AI era. The software platform is based on Huawei’s VRP8 operating system, and on the basis of providing stable, reliable and high-performance L2/L3 layer switching services, it builds an intelligent, minimalist, secure and open data center cloud network platform for customers.
The CloudEngine 16800 series adopts advanced hardware architecture design, with industry-leading Clos switching architecture without backplane and industrial-grade reliability, as well as strict front and rear air duct design, and supports rich data center features. Poleg tega, CloudEngine 16800, as a new generation core switch, adopts a variety of green and energy-saving innovative technologies to greatly reduce equipment energy consumption.

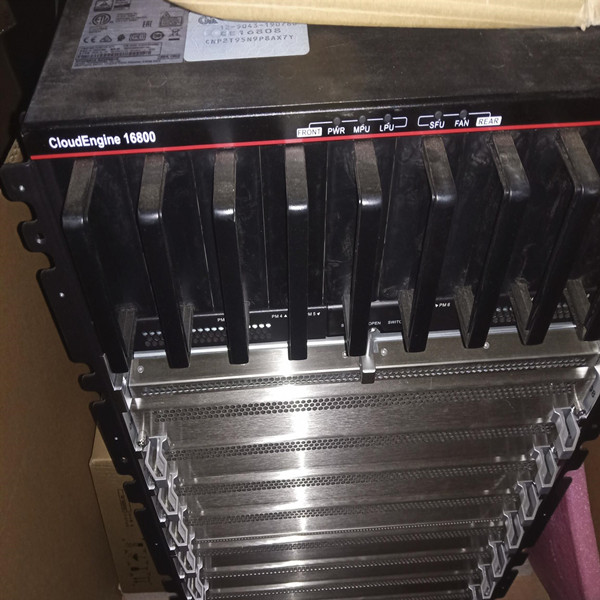

Huawei CE-SFU08G-G Board Product Pictures

Huawei CE-SFU08G-G Board Product Specifications

Postavka	Specifikacija
Model	CE-SFU08G-G
Številka dela	3058882
Silkscreen	CE-SFU08G-G
Opis	CE16808 Switch Fabric Unit G
Prva podprta različica	V200R005C20
Dimenzije brez embalaže (V x Š x G)	559.9 mm x 233.6 mm x 42.4 mm
Teža brez embalaže	5.8 kg (12.79 lb)
procesor	Quad-core, 1.4 GHz clock speed
Flash	Standardno 128 MB
Spomin	Standardno 2 GB
Tipična poraba energije	181 W
Največja poraba energije	261 W
Tipično odvajanje toplote	618 BTU/uro
Maksimalno odvajanje toplote	891 BTU/uro
Product certification	Safety standards compliance
	EMC standards compliance
	Environmental standards compliance

Huawei CE-SFU08G-G Board Product Features

• CloudEngine 16800 series switches adopt the new generation VRP8 operating system, and realize the programmable control plane of the device through the OPS module embedded in VRP8
• OPS provides a rich Open API interface, which can be deeply integrated by the industry’s mainstream cloud platforms (including commercial cloud platforms and open source cloud platforms) and third-party Controllers, and supports flexible network customization and automated management of the business
• Users or third-party developers can use the Open API interface to develop and deploy dedicated network management strategies, so as to quickly realize business function expansion, automatic deployment and intelligent management of equipment, realize automatic operation and maintenance, and reduce management costs
• OPS is committed to the seamless integration of data center services and networks, and provides service-oriented software-defined networks.
  Support NETCONF/OpenFlow protocol, and can be connected with Hua iMaster NCE-Fabric
• Provide a standard NETCONF interface for third-party software to call, thereby realizing the open programmable function of the device and the integration of third-party software, meeting the user’s requirements for the openness and flexibility of the device
• Support Ansible automatic configuration, Module open source release, expand equipment functions, simplify user management and maintenance of equipment.

Huawei CE-SFU08G-G Board Mapping Between Cards and SFUs of CE 16800

Device Model	Card	SFU	Number of SFUs Required for Linerate Forwarding
CE 16804/CE16808/ CE16816	36*100GE	CE-SFU04G-G/ CE-SFU08G-G/CE-SFU16G-G	5
	36*40GE	CE-SFU04F-G/ CE-SFU08F-G/CE-SFU16F-G	4
		CE-SFU04G-G/ CE-SFU08G-G/CE-SFU16G-G	4
	48*10GE	CE-SFU04F-G/ CE-SFU08F-G/CE-SFU16F-G	4
		CE-SFU04G-G/ CE-SFU08G-G/CE-SFU16G-G	4
	18*100GE	CE-SFU04F-G/ CE-SFU08F-G/CE-SFU16F-G	5
		CE-SFU04G-G/ CE-SFU08G-G/CE-SFU16G-G	5
	24*40GE	CE-SFU04F-G/ CE-SFU08F-G/CE-SFU16F-G	4
		CE-SFU04G-G/ CE-SFU08G-G/CE-SFU16G-G	4

Huawei CE-SFU08G-G Board Product and More Related Units

CE-SFU04G-G (CE16804 Switch Fabric Unit G)

CE-SFU04G-GK (CE16804 Switch Fabric Unit GK)

CE-SFU04F-G (CE16804 Switch Fabric Unit F)

CE-SFU04F1-G (CE16804 Switch Fabric Unit F1)

CE-SFU08G-G (CE16808 Switch Fabric Unit G)

CE-SFU08G-GK (CE16808 Switch Fabric Unit GK)

CE-SFU08F-G (CE16808 Switch Fabric Unit F)

CE-SFU08F1-G (CE16808 Switch Fabric Unit F1)

CE-SFU16G-G (CE16816 Switch Fabric Unit G)

CE-SFU16G-GK (CE16816 Switch Fabric Unit GK)

CE-SFU16F-G (CE16816 Switch Fabric Unit F)

Huawei CE-SFU08G-G Board Product Applications

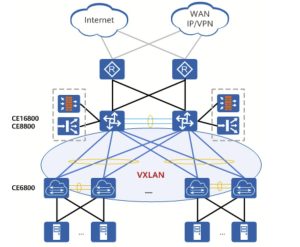

In a typical data center network, CloudEngine 16800/8800 is used as the core switch of the network, and CloudEngine 6800 is used as the access switch, and it is interconnected with CloudEngine 16800/8800 through 200GE/100GE/50GE/25GE. Use Fabric protocols such as VXLAN to build a large non-blocking Layer 2 network to ensure large-scale migration of virtual machines and flexible deployment of user services.
