Opis
HS8545M5 FTTH is GPON Optical Terminal Unit with 1GE +3 FE+1 TELE+ 1 USB +WIFI
HS8545M5 FTTH Product Overview
HS8545M5 FTTH is a high-end home gateway in FTTH solution. By using GPON technology, ultraširokopasovni dostop je zagotovljen za domače in SOHO uporabnike. Huawei HS8545M5 FTTH features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet in HD video storitve. Huawei HS8545M5 FTTH gives a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.

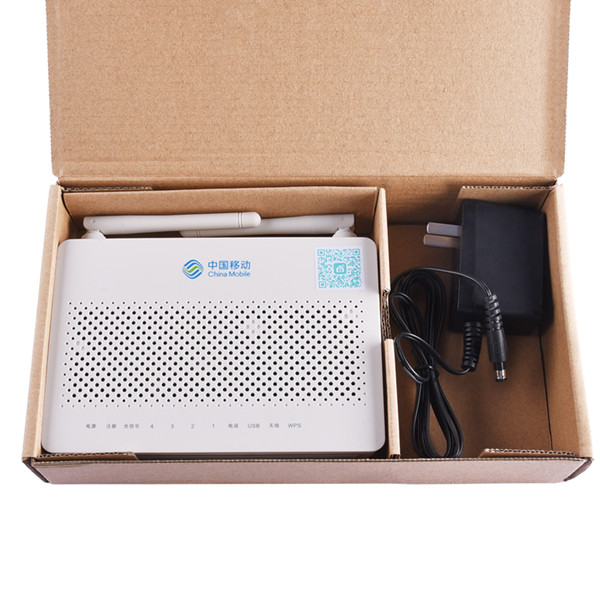

HS8545M5 FTTH Product Pictures
HS8545M5 FTTH Product Specifications
| Model | HS8545M5 | |
| Napajanje | 12V,1.5A | |
| Pristanišče | 1GE 3 FE I USB 1POT | |
| WiFi | YES | |
| Poraba energije (full loaded) | ≤15W | |
| Outline dimensions (mm) (W*D*H) | 240*160*35mm | |
| Utež (in maximum | ≤0.5kg | |
| konfiguracijo) | ||
| WIFI | Antena | 2×2, 5dBi external antenna |
| EIRP | Max 25dBm | |
| VoIP | REN | Max 5REN |
| Priključek | 1x RJ11 | |
| Ringing | 65V RMS ringing voltage | |
| USB | Max 1A for each port | |
| Environmental requirements | Delovna temperatura：0ºC~50ºC | |
| Temperatura skladiščenja：-40ºC~70ºC | ||
| Delovna vlažnost：5%~90% Storage temperature：5%~95% no condensing | ||
HS8545M5 FTTH Product Features
- Fully compatible with ITU-T G.984.
- Vgrajena funkcija daljinskega konfiguriranja in vzdrževanja OMCI.
- Podpira omejitev hitrosti na podlagi vrat in nadzor pasovne širine
- Support data encryption, group broadcasting, port Vlan separation, RSTP, itd.
- Podpira dinamično dodeljevanje pasovne širine (DBA)
- Podpira samodejno odkrivanje ONT/zaznavanje povezave/oddaljeno nadgradnjo programske opreme;
- Support VLAN division and user separation to avoid the broadcast storm;
- Support power-off alarm function, easy for link problem detection
- Podpira funkcijo odpornosti proti nevihti
HS8545M5 FTTH and More Models
10G PON ONT :
HN8055Q : XG-PON, SFP+ : 4GE+1*10GE+2USB+2WiFi • 2.4GHz: 11n 3×3 MIMO • 5GHz: 11ac 3×3 MIMO •238 mm x 190 mm x 26 mm (Without the base)
HN8245Q : NXG-PON, SFP+ : 2POTS+ 4GE+2USB+2WiFi • 2.4GHz: 11n 3×3 MIMO • 5GHz: 11ac 3×3 MIMO •238 mm x 190 mm x 26 mm (Without the base)
HN8255Ws : XGS-PON, SFP+ : 2POTS+ 4GE+1*10GE+2USB+2WiFi • 2.4GHz: 11n 3×3 MIMO • 5GHz: 11ac 4×4 MU-MIMO • 197 mm x 305 mm x 82 mm
Gateway ONT without WiFi
EG8040P : GPON : 4GE (PoE) • 254 mm x 140 mm x 42 mm
EG8240P : GPON : 2LONČKI + 4GE (PoE) • 254 mm x 140 mm x 42 mm
EG8020P : GPON : 2GE • Faceplate: 125 mm x 86 mm x 30 mm • Base: 68.5 mm x 46.5 mm x 33 mm
Bridge ONT
EG8010H : GPON : 1GE • 83 mm x 69 mm x 28 mm
EG8040H : GPON : 4GE • 176 mm x 138.5 mm x 28 mm
EG8240H : GPON : 2LONČKI + 4GE • 176 mm x 138.5 mm x 28 mm
EG8242H : GPON : 2LONČKI + 4GE + 1RF • 220 mm x 160 mm x 32 mm
WiFi ONT
EG8045H : GPON : 4GE+1USB+WiFi • 11n 2×2 MIMO • 176 mm x 138.5 mm x 28 mm (Without an external antenna)
EG8145V5 : GPON : 1POTS+4GE+1USB+2WiFi • 2.4GHz: 11n 2×2 MIMO • 5GHz: 11ac 2×2 MIMO • 173 mm x 120 mm x 30 mm (Without an external antenna)
EG8245H : GPON : 2POTS+4GE+1USB+WIFI • 11n 2×2 MIMO • 176 mm x 138.5 mm x 28 mm (Without an external antenna)
HG8245Q2 : GPON : 2POTS+4GE+1USB+2WiFi • 2.4GHz: 11n 3×3 MIMO • 5GHz: 11ac 3×3 MIMO • 176 mm x 265 mm x 82 mm
EG8245Q : GPON : 2POTS+4GE+1USB+2WiFi • 2.4GHz: 11n 3×3 MIMO • 5GHz: 11ac 3×3 MIMO • 188 mm x 143 mm x 32 mm (Without an external antenna)
EG8245H5 : GPON : 2POTS+4GE+1USB+WiFi • 11n 2×2 MIMO • 168 mm x 115 mm x 30 mm (Without an external antenna)
EG8247W : GPON : 2POTS+4GE+1USB+1RF+2WiFi • 2.4GHz: 11n 3×3 MIMO • 5GHz: 11ac 4×4 MIMO • 184 mm x 295 mm x 82 mm
EG8247H : GPON : 2POTS+4GE+1USB+1RF+WiFi • 11n 2×2 MIMO • 220 mm x 160 mm x 32 mm (Without an external antenna)
EG8247Q : GPON : 2POTS+4GE+2USB+1RF+2WiFi • 2.4GHz: 11n 3×3 MIMO • 5GHz: 11ac 3×3 MIMO • 219 mm x 159 mm x 32 mm (Without an external antenna)
HG8247H : GPON : 2POTS+4GE+1USB+1RF+WiFi • 11n 2×2 MIMO • 199 mm x 135 mm x 30 mm (Without an external antenna)
HS8545M5 FTTH Product Applications
