GYDTA-48Xn Optic Cable is Loose sleeve stranded unarmored fiber strip cable
GYDTA-48Xn Optic Cable Product Overview
The structure of the GYDTA fiber optic cable is that 4, 6, 8, in 12 fiber strips are sleeved into a loose tube made of high modulus material, and the loose tube is filled with a waterproof compound. In the center of the core is a metal reinforcing core, and for some core cables, a layer of polyethylene (PE) is squeezed out of the metal reinforcing core. The loose tube and the filling rope are twisted around the central reinforcing core to form a compact and round core, and the gaps in the core are filled with water-blocking filler. Plastic-coated aluminum tape (APL) is longitudinally wrapped and then extruded into a polyethylene sheath to form a cable.

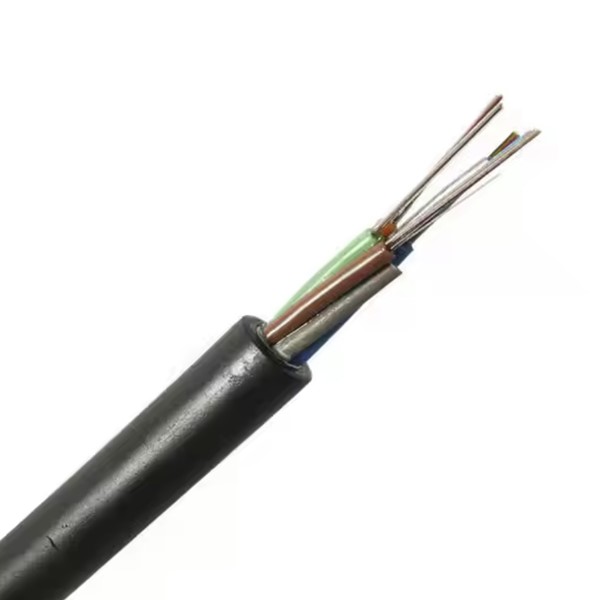

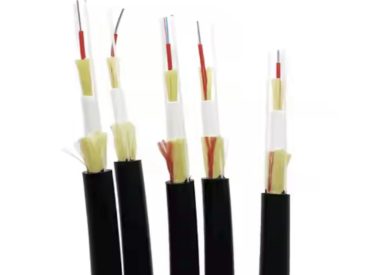

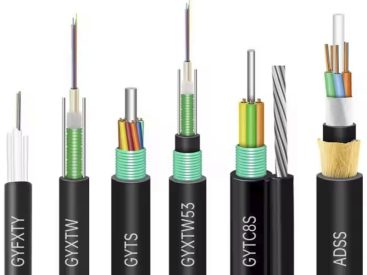

GYDTA-48Xn Optic Cable Product Pictures
GYDTA-48Xn Optic Cable Product Specifications
| Fiber Optic Cable Model (in 2-fiber increments) | Number of fibers | Number of casings | Number of infill ropes | Reference cable weight（kg/km) | Tensile force is allowed Long-term/short-term (n) |
Allowable squashing force Long-term/short-term (N/100mm) |
Bend radius Static/Dynamic (mm) |
|
| GYDTA-48Xn | 4×12 | 1 | 3 | 265 | 600/1500 | 300/1000 | 10D/20D | |
| GYDTA-96Xn | 8×12 | 2 | 2 | 265 | ||||
| GYDTA-144Xn | 12×12 | 3 | 1 | 265 | ||||
| GYDTA-216Xn | 18×12 | 3 | 1 | 295 | ||||
| GYDTA-288Xn | 24×12 | 4 | 0 | 295 | ||||
| GYDTA-360Xn | 30×12 | 5 | 0 | 295 | ||||
| GYDTA-432Xn | 36×12 | 6 | 0 | 395 | ||||
| Fiber type | Attenuation （+20℃） | Pasovna širina | Numerična apertura | Fiber optic cable cut-off wavelength | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | ≤0,36dB/km | ≤0,22dB/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0.40dB/km | ≤0,23dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYDTA-48Xn Optic Cable Product Features
• Very good mechanical and temperature properties
• The loose tube material itself has good hydrolysis resistance and high strength
• The tube is filled with a special paste to protect the optical fiber
• Specially designed tight cable structure to effectively prevent the casing from retracting
• The PE sheath has very good resistance to ultraviolet radiation
• Adopt YOFC 4, 6, 8, 12 core fiber strips, flexible application
• The following measures are taken to ensure the waterproof performance of the cable:
– Single wire center reinforcing core
– The loose tube is filled with a special waterproofing compound
– Full core filling
– Plastic-coated aluminium tape (APL) moisture barrier
GYDTA-48Xn Optic Cable and More Optic Cables
Loose sleeve stranded light armored fiber strip cable (GYDTS)
Stranded loose jacket unarmoured fiber optic cable (GYDTA)
Stranded Loose Jacket Non-Metallic Reinforced Core Non-Armoured Flame Retardant Fiber Optic Cable (GYFTZY)
Loose sleeve stranded reinforced core armored flame retardant optical cable(GYTZA53)
Loose sleeve stranded non-metallic reinforced core armored flame retardant fiber optic cable (GYFTZA53)
Stranded Flame Retardant Fiber Optic Cable (GYTZS)
Stranded loose jacket non-armoured flame retardant fiber optic cable (GYTZA)
Stranded loose sleeve non-metallic reinforced core armored fiber optic cable (GYFTA53)
Stranded non-metallic reinforcing core plain armored fiber optic cable (GYFTY53)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (GYFTA)
Loose sleeve stranded non-metallic reinforced core optical cable (GYHTY)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (GYFTY)
Loose sleeve stranded single thin round steel wire armored fiber optic cable (GYTA53 33)
GYDTA-48Xn Optic Cable Product Applications
Aplikacija: pipelines, overhead
GYDTA-48Xn Optic Cable Product Structure
oprosti, priloga ni na voljo !
