EG8245H FTTH is Gateway type GPON ONT with 4GE + 2LONČKI + 1WIFI + 1USB, supporting QoS, varnost, energy-saving, multicast, glas, plast 3, WIFI, USB and intelligent operation and maintenance.
EG8245H FTTH Product Overview
EG8245H FTTH is an optical network terminal (ONT), which is a high-end home gateway in the FTTH solution. By using GPON technology, ultraširokopasovni dostop je zagotovljen za domače in SOHO uporabnike. Huawei EG8245H FTTH provides two POTS ports, four GE auto-adapting Ethernet ports, and one Wi-Fi port. Huawei EG8245H FTTH features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet in HD video storitve. Zato, this model provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.

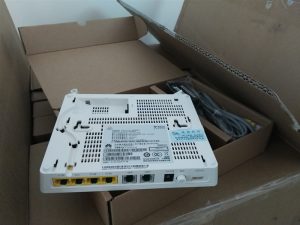

EG8245H FTTH Product Pictures
EG8245H FTTH Product Specifications
| Model | EG8245H |
| Pots | 4GE + 2LONČKI + 1WIFI + 1USB |
| Delovno okolje | Delovna temperatura: 0ºC do 40ºC |
| Vlažnost okolja: 5% do 95% (nekondenzacijski) | |
| Tipična poraba energije | 9 W |
| Power specifications | Vhod za napajalnik: 100 do 240 V AC, 50–60 Hz |
| Sistemsko napajanje: 11–14 VDC, 2 A | |
| WLAN | 802.11b/g/n |
| VoIP | H.248 and SIP |
| Podpira IPv4 ali IPv6 | IPv4 in IPv6 |
| Encapsulation mode | IPoE or PPPoE |
| Support NAT | ja |
| Varnost | IP Filter MAC Filter URL Filter |
| USB Port | Used to connect to USB storage device |
| Dimenzije(D*Š*V) | 176 mm x 138.5 mm x 28 mm |
| Utež | O tem 1 Kg |
EG8245H FTTH Product Features
- Pametna medsebojna povezava
Pametna pokritost Wi-Fi
SIP/H.248 samodejno pogajanje
Katera koli vrata katera koli storitev
Starševski nadzor
L2/L3 (IPv4) posredovanje: 1G uplink, 2G downlink
- Smart service
Smart Wi-Fi sharing:
Portal/802.1x authentication
SoftGRE-based sharing
Association of one account with two POTS ports
- Pametna O&M
Diagnoza kakovosti videa IPTV
Sporočila OMCI spremenljive dolžine
Active/Passive rogue ONT detection and isolationCall emulation, and circuit test and loop-line testPPPoE/DHCP simulation testing
WL AN emulation
EG8245H FTTH and More Models
| Bridge ONT | FE | GE | LONČKI | WiFi | USB | nekaj |
| EG8010H | – | 1 | – | – | – | – |
| EG8040H | – | 4 | – | – | – | – |
| EG8240H | – | 4 | 2 | – | – | – |
| EG8242H | – | 4 | 2 | – | – | 1 |
| Gateway ONT | ||||||
| EG8120L | 1 | 1 | – | – | – | – |
| EG8045H | – | 4 | – | b / g / n | 1 | – |
| EG8245H | – | 4 | 2 | b / g / n | 1 | – |
| EG8141A5 | 3 | 1 | 1 | a / b / g / n | 1 | – |
| EG8145V5 | – | 4 | 1 | a / b / g / n / ac | 1 | – |
| HG8245D | – | 4 | 2 | a / b / g / n | 1 | – |
| HG8247H5 | – | 4 | 2 | b / g / n | 1 | 1 |
| HG8245Q2 | – | 4 | 2 | a / b / g / n / ac | 2 | – |
| PoE ONT | 30W per port, 60 / 120W per system (4/8 pristanišče) | |||||
| EG8040P | 4 | – | – | – | – | |
| EG8080P | 8 | – | – | – | – | |
| EG8240P | 4 | 2 | – | – | – | |
| EG8280P | 8 | 2 | – | – | – | |
| 10G XPON ONT | 10GE | GE | LONČKI | WiFi | USB | |
| HN8245Q | – | 4 | 2 | a / b / g / n / ac | 2 | |
| HN8055Q | 1 | 4 | 2 | a / b / g / n / ac | 2 | |
EG8245H FTTH Product Applications
