Popis

Huawei S5735S-L24T4S-A1 Switch is a standard Gigabit Ethernet switch with 24*10/100/1000BASE-T ports, 4*GE SFP porty, Napájanie striedavým prúdom

Huawei S5735S-L24T4S-A1 Switch Product Overview

Huawei S5735S-L24T4S-A1 Switch is a standard Gigabit Ethernet switch with S5735S-L24T4S-A1 (24*10/100/1000BASE-T porty, 4*GE SFP ports AC power. It is developed on a new generation of high-performance hardware and Huawei’s unified VRP (Versatile Routing Platform) software platform. Navyše, it supports agile zero-configuration deployment, and provides functions such as Zero-Touch installation of new network devices, replacement of faulty devices without configuration, USB deployment, batch configuration of devices, and batch remote upgrades, which are convenient for installation, upgrade, poskytovanie služieb, and other management and maintenance. Based on topology planning, network topology is automatically discovered, automatically collected, and intelligently corrected, reducing. V rovnakom čase, S5735S-L24T4S-A1 stands out with enhanced three-layer features, jednoduchá obsluha a údržba, flexible Ethernet networking, a vyspelé funkcie IPv6. Preto, the product is widely used in enterprise campus access and aggregation, data center access and other application scenarios.

Huawei S5735S-L24T4S-A1 Switch Product Pictures

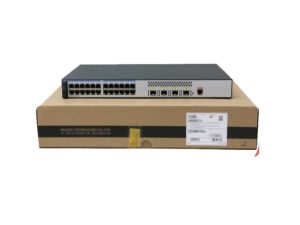

Huawei S5735-L24T4S-QA1 SwitchS5735-L24P4X-A1

Prepínač Huawei S5735-L24P4X-A1Prepínač Huawei S5735-L24T4X-D1

Huawei S5735S-L24T4S-A1 Switch Product Specifications

Položka Špecifikácia
Značka Huawei
Model S5735S-L24T4S-A1
Port 24*10/100/1000BASE-T porty, 4*GE SFP porty, Napájanie striedavým prúdom
Výška podvozku [U] 1 U
Hmotnosť bez obalu [kg(lb)] 2.45 kg (5.4 lb)
Hmotnosť s obalom [kg(lb)] 3.34 kg (7.36 lb)
Typická spotreba energie [W] 32.7 W
Typický odvod tepla [BTU/hod] 111.58 BTU/hod
Maximálna spotreba energie [W] 47.6 W
Maximálny odvod tepla [BTU/hod] 162.42 BTU/hod
MTBF [rok] 66.16 rok
MTTR [hodina] 2 hodina
Dostupnosť >0.99999
Hluk pri normálnej teplote (akustický výkon) [dB(A)] 39 dB(A)
Hluk pri normálnej teplote (akustický tlak) [dB(A)] 27.2 dB(A)
Skladovacia teplota [°C(°F)] -40°C až +70 °C (-40°F až +158 °F)
Dlhodobá prevádzková relatívna vlhkosť [RH] 5% do 95%, nekondenzujúca
Dlhodobá prevádzková výška [m(ft.)] 0-5000 m (0-16404 ft.)
Skladovacia výška [m(ft.)] 0-5000 m (0-16404 ft.)
Režim napájania AC vstavaný
Menovité vstupné napätie [V] AC vstup: 100 V AC do 240 V AC, 50/60 Hz
Rozsah vstupného napätia [V] AC vstup: 90 V AC do 290 V AC, 45 Hz až 65 Hz
Maximálny vstupný prúd [A] 2:00 AM
Pamäť 512 MB
Flash pamäť 512 MB
Konzolový port RJ45
Prepäťová ochrana servisného portu [kV] Spoločný režim: ±7 kV
Prepäťová ochrana napájacieho zdroja [kV] ±6 kV v diferenciálnom režime, ±6 kV v spoločnom režime
Typy ventilátorov Vstavaný
Režim odvodu tepla Odvod tepla ventilátorom, inteligentné nastavenie rýchlosti ventilátora
Smer prúdenia vzduchu Nasávanie vzduchu zľava a spredu, odsávanie vzduchu sprava
Rozmery s obalom (V x Š x H) [mm(v.)] 90.0 mm x 550.0 mm x 360.0 mm (3.54 v. X 21.65 v. X 14.17 v.)

Huawei S5735S-L24T4S-A1 Switch Product Features

  • Support perfect Layer 2 a Vrstva 3 multicast protocols, and supports PIM SM, PIM DM, PIM SSM, MLD, and IGMP Snooping to meet the needs of multi-terminal high-definition video surveillance and video conference access.
  • Support for OSPF, ISIS, BGP, VRRP and other three-layer features to meet enterprise access, aggregation service bearer requirements, and support more abundant voice, video and data applications.
  • Support MAC authentication, 802.1x autentifikácia, a autentifikáciu portálu, and realizes the dynamic distribution of user policies (VLAN, QoS, ACL).
  • Supports the sFlow function, which can sample the forwarded traffic on demand in a way defined by the standard, and upload the sampled traffic to the collector in real time, which is used to generate statistical information charts, which provides daily maintenance for enterprise users. Great convenience.

Huawei S5735S-L24T4S-A1 Switch Product and More Models

S5735S-L8T4S-A1 8*10/100/1000Base-T Ethernet ports, 4 Gigabit SFP
S5735S-L8P4S-A1 8*10/100/1000BASE-T ports, 4*GE SFP porty, PoE+, Napájanie striedavým prúdom
S5735S-L24T4S-A1 24*10/100/1000BASE-T ports, 4*GE SFP porty, Napájanie striedavým prúdom
S5735S-L24P4S-A1 24*10/100/1000BASE-T ports, 4*10Porty GE SFP+, PoE+, Napájanie striedavým prúdom.
S5735S-L24T4X-A1 24*10/100/1000BASE-T ports, 4*10Porty GE SFP+, Napájanie striedavým prúdom.
S5735S-L24P4X-A1 24*10/100/1000BASE-T ports, 4*10Porty GE SFP+, PoE+, Napájanie striedavým prúdom.
S5735S-L32ST4X-A1 24*GE SFP ports, 8*10/100/1000BASE-T porty, 4*10Porty GE SFP+, Napájanie striedavým prúdom, predný prístup
S5735S-L48T4S-A1 48*10/100/1000BASE-T ports, 4*GE SFP porty, Napájanie striedavým prúdom
S5735S-L48P4S-A1 48*10/100/1000BASE-T ports, 4*GE SFP porty, PoE+, Napájanie striedavým prúdom
S5735S-L48T4X-A1 48*10/100/1000BASE-T ports, 4*GE SFP porty, Napájanie striedavým prúdom
S5735S-L48P4X-A1 48*10/100/1000BASE-T ports, 4*10Porty GE SFP+, PoE+, Napájanie striedavým prúdom

Huawei S5735S-L24T4S-A1 Switch Product Applications
