Huawei S5720S-28P-PWR-LI-AC Switch is 24 Ethernet 10/100/1000 prístavov,4 Koncert SFP,PoE+,370W POE AC 110/220V
Huawei S5720S-28P-PWR-LI-AC Switch Product Overview
Huawei S5720S-28P-PWR-LI-AC Switch is a next-generation energy-saving gigabit Ethernet switch that provides flexible GE access ports and 10GE uplink ports. Building on next-generation, high-performance hardware and the Huawei Versatile Routing Platform (VRP),
Huawei S5720S-28P-PWR-LI-AC Switch supports intelligent stack (iStack), flexible Ethernet networking, and diversified security control. It provides customers with a green, easy-to-manage, ľahko rozšíriteľné, a cenovo výhodné gigabitové riešenie pre stolné počítače.
Huawei S5720S-28P-PWR-LI-AC Switch can provide flexible full Gigabit access and 10 Gigabit uplink ports, support multiple Layer 3 routing protocols, have higher performance and richer service processing capabilities, and are widely used in enterprise campus access, Gigabit To various application scenarios such as desktop.

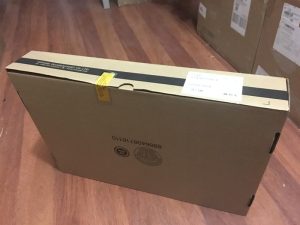

Huawei S5720S-28P-PWR-LI-AC Switch Product Pictures
Huawei S5720S-28P-PWR-LI-AC Switch Product Specifications
| Značka | Huawei |
| Model | S5720S-28P-PWR-LI-AC |
| Pamäť (RAM) | 512 MB |
| Flash | 240 MB |
| Priemerný čas medzi poruchami (MTBF) | 41 rokov |
| Priemerný čas na opravu (MTTR) | 2 hodiny |
| Dostupnosť | > 0.99999 |
| Prepäťová ochrana servisného portu | Spoločný režim: ±7 kV |
| Prepäťová ochrana napájacieho zdroja | ±6 kV v diferenciálnom režime, ±6 kV v spoločnom režime |
| Rozmery (Š x H x V) | 442.0 mm x 310.0 mm x 43.6 mm (17.4 v. X 12.2 v. X 1.72 v.) |
| Hmotnosť (vrátane obalových materiálov) | 4.5 kg (9.92 lb) |
| Hromadné porty | Twenty-four 10/100/1000BASE-T ports and four 1000BASE-X ports |
| RTC | Nie je podporované |
| RPS | Nie je podporované |
| PoE | Podporované |
| Rozsah menovitého napätia | 100 V AC do 240 V AC, 50/60 Hz |
| Maximálny rozsah napätia | 90 V AC do 264 V AC, 47 Hz až 63 Hz |
| Maximálna spotreba energie (100% priepustnosť, plná rýchlosť ventilátorov) | Bez PoE: 40.4 W |
| 100% Načítava sa PoE: 446.7 W (spotreba energie systému: 77.1 W, PoE: 369.6 W) | |
| Typická spotreba energie (30% dopravného zaťaženia) | 26 W |
| Testované podľa štandardu ATIS | |
| EEE povolené | |
| Žiadna spotreba energie PoE | |
| Skladovacia teplota | -40°C až +70 °C (-40°F až +158 °F) |
| Hluk pri normálnej teplote (27°C, zvuková sila) | menej ako 49.1 dBA |
| Relatívna vlhkosť | 5% do 95%, nekondenzujúca |
| Prevádzková výška | 0-5000 m (0-16404 ft.) |
Huawei S5720S-28P-PWR-LI-AC Switch Product Features
- support 16K MAC address (S5720SV2-LI model); support 8K MAC address (other models except S5720SV2-LI)
- Support MAC address automatic learning and aging
- Support static, dynamický, black hole MAC entries
- Support source MAC address filtering
- Support interface MAC address learning number limit
- support 4K VLAN
- Support Guest VLAN, Voice VLANs
- Support GVRP protocol
- Support MUX VLAN function
- Support VLAN based on MAC/protocol/IP subnet/policy/port
- podpora 1:1 a N:1 VLAN Mapping
- Support static routing, support RIP, RIPng protocol, support OSPF protocol (OSPF protocol is only supported by S5720SV2-LI)
Huawei S5720S-28P-PWR-LI-AC Switch Product And More Related Models
| S5720S-12TP-LI-AC | 8 10/100/1000 Base-T Ethernet port, 4 Gigabit SFP, 2 multiplexed 10/100/1000 Base-T Ethernet port Combo |
| S5720S-12TP-PWR-LI-AC | |
| S5720S-28P-LI-AC | Type P: 24 10/100/1000 Base-T Ethernet port, 4 Gigabit SFP TP type: 24 10/100/1000 Base-T Ethernet port, 4 Gigabit SFP, 2 multiplexed 10/100/1000 Base-T Ethernet port Combo |
| S5720SV2-28P-LI-AC | |
| S5720S-28P-PWR-LI-AC | |
| S5720S-28TP-PWR-LI-ACL | |
| S5720S-28X-LI-AC | 24 10/100/1000 Base-T Ethernet port, 4 X 10 Koncert SFP+ |
| S5720S-28X-PWR-LI-AC | |
| S5720S-28X-LI-24S-AC | 24 Gigabit SFPs, 8 multiplexed 10/100/1000 Base-T Ethernet port Combo, 4 X 10 Koncert SFP+ |
| S5720S-52P-LI-AC | 48 10/100/1000 Base-T Ethernet port, 4 Gigabit SFP |
| S5720SV2-52P-LI-AC | |
| S5720S-52P-PWR-LI-AC | |
| S5720S-52X-LI-AC | 48 10/100/1000 Base-T Ethernet port, 4 X 10 Koncert SFP+ |
| S5720S-52X-PWR-LI-AC |
Huawei S5720S-28P-PWR-LI-AC Switch Product Applications
