Popis
Huawei ETP4860-B1A1 Power is 60A power converter with 2xR4830G, 1xSMU11C or 1xSMU11B.
Huawei ETP4860-B1A1 Power Product Overview
Huawei ETP4860-B1A1 Power is an embedded power system, and supports two 30A rectifiers maximum output current 60A; and supplies power to –48 V DC telecom equipment like OSN8800 OSN3500 MA5800. This power module offers excellent performance such as intelligent battery management, remote monitoring.
ETP4860 has 2 different monitor modules: SMU11B, SMU11C
SMU11C support LIVE-C APP, užívateľ:liveapp, heslo: Changeme_123; support Chinese, English and Japanese
SMU11B has one northbound FE port, one southbound RS485 port, and one CAN port and SMU11B supports SNMP and WebUI

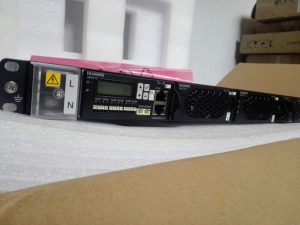

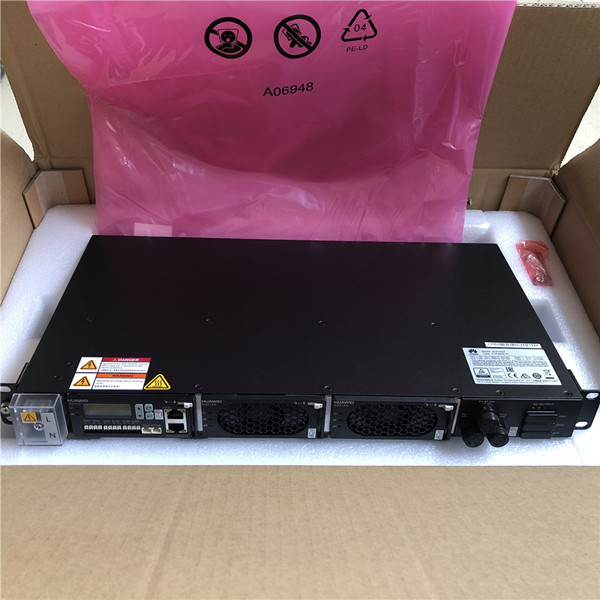

Huawei ETP4860-B1A1 Power Product Pictures
Huawei ETP4860-B1A1 Power Product Features
- Rated capacity: 45A/90A
- Vstupné striedavé napätie: 85~ 300 VAC, rated voltage: 220VAC
- AC input frequency: 45~65 Hz, menovitou hodnotou: 50Hz/60Hz
- Účiník: ≥ 0.99
- Výstupné napätie: 42~58 V DC, the default output is 53. 5VDC
- Prístup & maintenance: front operation, predná údržba
- Modul usmerňovača: 15A/30A
- Cooling mode: natural cooling
- Spôsob inštalácie: 19-inch rack, 21-inštalácia palcového racku alebo vstavanej skrine
- Prevádzková teplota: -40~+70°C
- Pracovná vlhkosť: 5%~95 % (nekondenzujúca)
- Nadmorská výška: 0~4000 m (altitude is in the range of 2000~4000m, the temperature index decreases by 1’C for every 200m increase)
- Rozvod striedavého prúdu
- AC input mode: 380V three-phase/220VAC single-phase/110V dual live wire
- AC output: not involved
- AC input lightning protection: not involved
- Distribúcia jednosmerného prúdu
- Vetva batérie: 1 x80A MCB
- Load branch BLVD: 1x10A MCB, 1x32A MCB, 2x40A MCB
- Load protection branch LLVD: not involved
