Huawei CR52-LPUF-21-A Board is Flexibilná doska na spracovanie kariet (LPUF-21, 2 čiastkové sloty) A (L3VPN, MVPN, IPv6 enhanced)
Huawei CR52-LPUF-21-A Board Product Overview
Huawei CR52-LPUF-21-A Board is flexible Card Line Processing Unit(LPUF-21.2 sub-slots) A (L3VPN.MVPN.IPv6 Enhanced) for NE40E series Universal Service Router (USR)
NE40E series router is a high-end network product that features line-rate forwarding capability, a well-designed Quality of Service (QoS) mechanism, strong service-processing capability, and excellent expansibility.
Based on distributed hardware forwarding and non-blocking switching technologies, the NE40E provides maximum 480G line cards to satisfy the increased demand for bandwidth. The NE40E series includes the NE40E-X16A/X16, NE40E-X8A/X8, and NE40E-X3/X3A models to satisfy requirements for networks at various scales.

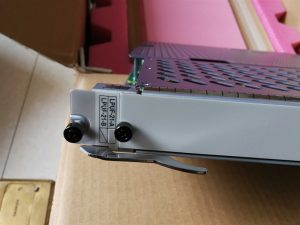

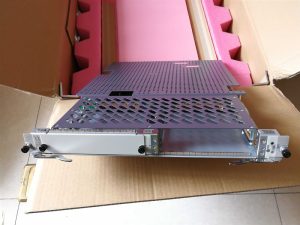

Huawei CR52-LPUF-21-A Board Product Pictures
Huawei CR52-LPUF-21-A Board Product Specifications
| Značka | Huawei |
| Kód produktu | CR52-LPUF-21-A |
| Popis | Flexible Card Line Processing Unit(LPUF-21,2 sub-slots) A (L3VPN,MVPN,IPv6 Enhanced) |
| Atribúty | Hardvér |
| Kategória | LPUF-21 Line Card |
| Produktový rad | vytváranie sietí |
| Produktová rodina | Router |
| Prehľad | Linková karta |
| Podskupina produktov | NetEngine NE80E Router |
| Produktová séria | NE80E(Enterprise Network) |
| EAN | 6.92E+12 |
| Čistá dimenzia(D*Š*V mm) | 551*398*40 |
| Typická sila(W) | 172 |
Huawei CR52-LPUF-21-A Board Product Features
- Powerful routing capabilities, support for large routing tables, provide rich routing protocols such as RIP, OSPF, JE-JE, BGP4, and multicast routing, support for clear / ciphertext authentication, and have fast convergence functions to ensure security and stability in complex routing environment.
- Powerful service carrying capacity, according to networking requirements, L2VPN, L3VPN, MVPN can be deployed at the same time, and TE (Traffic Engineering) can be deployed at the same time, support flexible QinQ, support DHCP / IPoE / PPPoE, can also provide GRE and other functions, adapt to traditional Access requirements and emerging business requirements meet the rich bearer requirements of multi-service integration.
- Powerful and extensible multicast capabilities, supporting rich IPv4 / IPv6 multicast protocols, including PIM-SM / SSM, MLDv1 / v2, IGMPv3, IGMP Snooping, MLD Snooping and other features, can flexibly carry video services such as IPTV, can meet all Multi-scale multicast service requirements.
Huawei CR52-LPUF-21-A Board and More Related Boards
| CR53-LPUF-10 | Flexibilná doska na spracovanie kariet (LPUF-10, 4 čiastkové sloty) |
| CR5M0E8GFA30 | 8-prístav 100 / 1000Base-X-SFP flexible card A (P10-A, support 1588v2) |
| CR53-P10-1xPOS/STM64-XFP | 1-port OC-192c / Flexibilná karta STM-64c POS-XFP (zaberá dva podsloty) |
| CR53-P10-4xPOS/STM16-SFP | 4-port OC-48c / Flexibilná karta STM-16c POS-SFP |
| CR53-P10-2xPOS/STM16-SFP | 2-port OC-48c / Flexibilná karta STM-16c POS-SFP |
| CR53-P10-1xPOS/STM16-SFP | 1-port OC-48c / Flexibilná karta STM-16c POS-SFP |
| CR53-P10-8xPOS/STM4-SFP | 8-port OC-12c / Flexibilná karta STM-4c POS-SFP |
| CR53-P10-4xPOS/STM4-SFP | 4-port OC-12c / Flexibilná karta STM-4c POS-SFP |
| CR53-P10-8xPOS/STM1-SFP | 8-port OC-3c / Flexibilná karta STM-1c POS-SFP |
| CR53-P10-4xPOS/STM1-SFP | 4-port OC-3c / Flexibilná karta STM-1c POS-SFP |
| CR53-P10-2xcPOS/STM1-SFP | 2-port Channelized OC-3c / Flexibilná karta STM-1c POS-SFP |
| CR53-P10-2xATM/STM4-SFP | 2-port OC-12c / Flexibilná karta STM-4c ATM-SFP |
| CR53-P10-4xATM/STM1-SFP | 4-port OC-3c / Flexibilná karta STM-1c ATM-SFP |
| CR53-P10-4xE3/cT3-SMB | 4-Port Clear Channel E3 / Channelized T3-SMB flexibilná karta |
| CR53-P10-24xcE1/cT1-DB100 | 24-port Channelized E1 / Flexibilná karta T1-DB100 |
| CR52-LPUF-21-A | Flexibilná doska na spracovanie kariet (LPUF-21, 2 čiastkové sloty) A (L3VPN, MVPN, IPv6 enhanced) |
| CR52-P21-40×10/100/1000Base-TX-RJ45 | 40-prístav 10/100 / 1000Base-RJ45 flexible card (zaberá dva podsloty) |
| CR52-P20-12×10/100/1000Base-TX-RJ45 | 12-prístav 10/100 / 1000Base-RJ45 flexible card |
| CR52-P21-4x10GBase WAN/LAN-XFP | 4-port 10 GBase WAN / LAN-XFP flexible daughter card (zaberá dva podsloty) |
| CR52-P20-1x10GBase WAN/LAN-XFP-A | 1-port 10 GBase WAN / LAN-XFP flexible card A (supports 1588v2) |

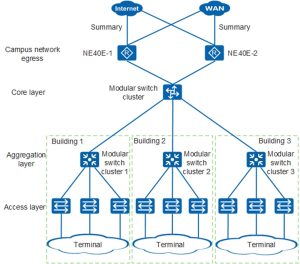

Huawei CR52-LPUF-21-A Board Product Applications
