GYFXY Non-metallic Cable

Kategória: Kábel Tagy: Prístupová sieť, Vláknová šnúra, FTTH, OLT

Popis
Dopyt
Príloha

Popis

GYFXY Non-metallic Cable is Unitube Non-metallic Non-armored Cable.

GYFXY Non-metallic Cable Product Overview

GYFTY fiber optic cable is a non-metallic cable used for power transmission system, excessive thunder areas and high electromagnetic interface. The cable tubes, which are filled with filling compound, are stranded around the FRP strength member. Then the aramid yarn is applied over water proof material, the cable is completed with a PE sheath. GYFTY cables are available from 2 core to 144 core. It is used in high-voltage area for long distance aerial or duct application.

An optical fiber is a fiber composed of a double-layer transparent medium formed into concentric circles. The most widely used dielectric material is quartz glass (SiO2). The inner medium is called the core, and its refractive index is higher than that of the outer medium (called the cladding). The refractive index of the core or cladding is adjusted by doping the quartz glass with impurities such as germanium, phosphorus, fluorine, boron, atď. The transmission wavelength of optical fiber for communication is mainly 0.8~1.7 micron near-infrared light. The core diameter of the fiber varies depending on the type, typically a few microns to 100 mikrónov, with most outer diameters around 125 mikrónov. It has a plastic cladding on the outside. Fiber optic cables are made of a combination of single or multiple fibers, reinforced and protected. Fiber optic cables can be used in a variety of environments. The manufacturing method of optical cables is similar to that of cables.

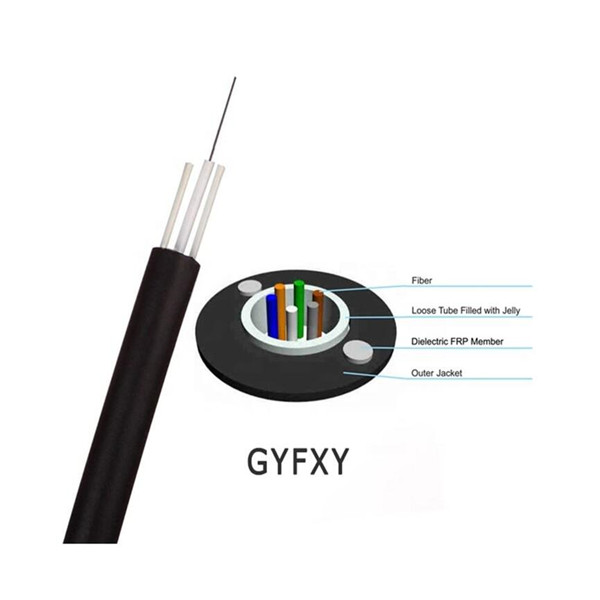

GYFXY Non-metallic Cable Product Pictures

Unitube Non-metallic Non-armored Cable fiber optic ycict GYXTW cable price and specs Outdoor Optical Cable ycict

GYFXY Non-metallic Cable Unitube Non-metallic Non-armored Cable ycict GYXTW cable price and specs Light-armored Cable GYXTW ycict

GYFXY Non-metallic Cable Product Specifications

		G.652	G.655	50/125μm	62.5/125μm
Útlm (+20℃)	@850 nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤ 0,23 dB/km
Šírka pásma	@850 nm			≥500 MHz·km	≥200 MHz·km
(Trieda A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerická clona				0.200± 0,015 NA	0.275± 0,015 NA
Vlnová dĺžka kábla		≤ 1260 nm	≤ 1480 nm

Cable Type	Počet vlákien	Cable Diameter	Cable Weight kg/km	Tensile Strength	Crush Resistance	Bending Radius
(Increased by 2 vlákna)	Počet vlákien	mm	Cable Weight kg/km	Long/Short Term N	Long/Short Term N/100mm	Static/Dynamic mm
GYFXY -2~12	2~12	8.6	65	400/1000	300/1000	10D/20D

GYFXY Non-metallic Cable Product Features

Very good mechanical properties and temperature characteristics
The loose tube material itself has good hydrolysis resistance and high strength
The tube is filled with special ointment, which provides critical protection for the optical fiber
Two parallel FRPs guarantee the tensile strength of the cable
PE sheath has good resistance to UV radiation
Small diameter, nízka hmotnosť, easy to lay
Longer delivery lengths
