GYFTZA53-14~18Xn Optic Cable is Loose sleeve stranded non-metallic reinforced core armored flame retardant optical cable, suitable for severe environments such as underground and direct burial
GYFTZA53-14~18Xn Optic Cable Product Overview
GYFTZA53 fiber optic cables are constructed by inserting a 250μm optical fiber into a loose tube made of high-modulus material filled with a waterproof compound. In the center of the core is a non-metallic reinforcing core (FRP), and for some core counts, a layer of polyethylene (PE) is squeezed on top of the non-metallic reinforcing core. The loose tube and infill rope are twisted around the central reinforcing core to form a compact and round core, and the gaps within the core are filled with water-blocking filling. The plastic-coated aluminum strip (APL) is squeezed with a layer of polyethylene inner sheath after longitudinal wrapping, and the flame-retardant outer sheath is extruded after the double-sided plastic-coated steel strip (PSP) is longitudinally wrapped into a cable.
With non-metallic reinforcing core, double-layer armored flame retardant sheath and full-section water-blocking design, it is suitable for severe environments such as underground burial and direct burial.

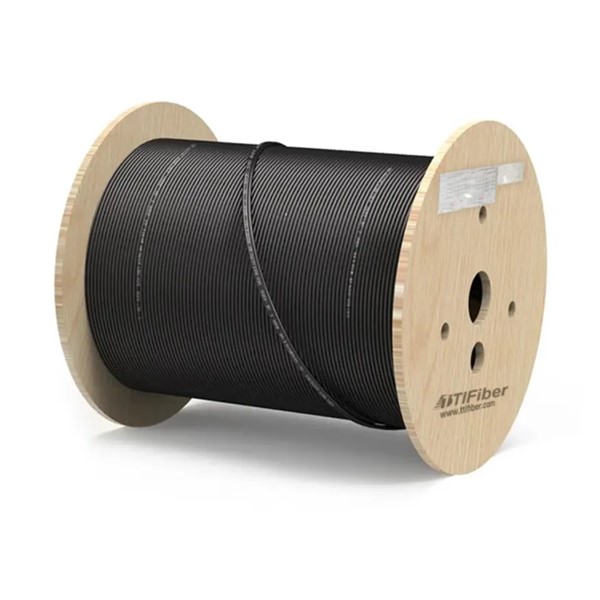

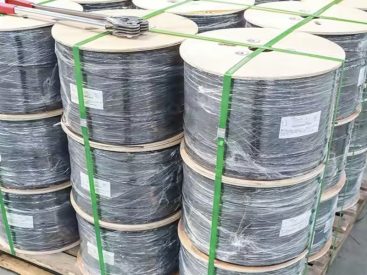

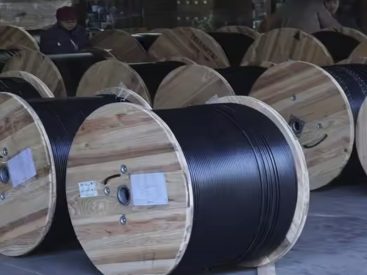

GYFTZA53-14~18Xn Optic Cable Product Pictures
GYFTZA53-14~18Xn Optic Cable Product Specifications
| Fiber optic cable model (in 2-fiber increments) |
Number of fibers | Number of casings | Number of infill ropes | Reference cable weight （kg/km） | Tensile force is allowed Long-term/short-term (N) |
Allowable squashing force Long-term/short-term (N/100mm) |
Bend radius Static/Dynamic (mm) |
|
| GYFTZA53-2~6Xn | 2~6 | 1 | 7 | 275 | 1000/3000 | 1000/3000 | 12.5D/25D | |
| GYFTZA53-8~12Xn | 8~12 | 2 | 6 | 275 | ||||
| GYFTZA53-14~18Xn | 14~18 | 3 | 5 | 275 | ||||
| GYFTZA53-20~24Xn | 20~24 | 4 | 4 | 275 | ||||
| GYFTZA53-26~30Xn | 26~30 | 5 | 3 | 275 | ||||
| GYFTZA53-32~36Xn | 32~36 | 6 | 2 | 275 | ||||
| GYFTZA53-38~42Xn | 38~42 | 7 | 1 | 275 | ||||
| GYFTZA53-44~48Xn | 44~48 | 8 | 0 | 275 | ||||
| GYFTZA53-50~60Xn | 50~60 | 5 | 3 | 290 | ||||
| GYFTZA53-62~72Xn | 62~72 | 6 | 2 | 290 | ||||
| GYFTZA53-74~84Xn | 74~84 | 7 | 1 | 290 | ||||
| GYFTZA53-86~96Xn | 86~96 | 8 | 0 | 290 | ||||
| GYFTZA53-98~108Xn | 98~108 | 9 | 1 | 327 | ||||
| GYFTZA53-110~120Xn | 110~120 | 10 | 0 | 327 | ||||
| GYFTZA53-122~132Xn | 122~132 | 11 | 1 | 384 | ||||
| GYFTZA53-134~144Xn | 134~144 | 12 | 0 | 384 | ||||
| Typ vlákna | Attenuation （+20℃） | Šírka pásma | Numerical aperture | Fiber optic cable cut-off wavelength | ||||
| @850 nm | @1300nm | @1310nm | @1550nm | @850 nm | @1300nm | |||
| G.652 | — | — | ≤ 0,36 dB/km | ≤ 0,22 dB/km | — | — | — | ≤ 1260 nm |
| G.655 | — | — | ≤0.40dB/km | ≤ 0,23 dB/km | — | — | — | ≤1450nm |
| 50/125um | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125um | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYFTZA53-14~18Xn Optic Cable Product Features
• Very good mechanical properties, temperature characteristics and flame retardant properties
• The loose tube material itself has good hydrolysis resistance and high strength
• The tube is filled with a special paste to protect the optical fiber
• Good compression resistance and softness
• The following measures are taken to ensure the waterproof performance of the cable:
– Single non-metallic center reinforcing core
– The loose tube is filled with a special waterproofing compound
– Full core filling
– Plastic-coated aluminium tape (APL) moisture barrier
– Double-sided plastic-coated steel tape (PSP) improves the moisture permeability of fiber optic cables
– Good water-blocking material prevents longitudinal water seepage of the fiber optic cable
GYFTZA53-14~18Xn Optic Cable Product and More Optic Cables
Stranded loose jacket unarmoured fiber optic cable (GYDTA)
Stranded Loose Jacket Non-Metallic Reinforced Core Non-Armoured Flame Retardant Fiber Optic Cable (GYFTZY)
Loose sleeve stranded reinforced core armored flame retardant optical cable(GYTZA53)
Loose sleeve stranded non-metallic reinforced core armored flame retardant fiber optic cable (GYFTZA53)
Stranded Flame Retardant Fiber Optic Cable (GYTZS)
Stranded loose jacket non-armoured flame retardant fiber optic cable (GYTZA)
Stranded loose sleeve non-metallic reinforced core armored fiber optic cable (GYFTA53)
Stranded non-metallic reinforcing core plain armored fiber optic cable (GYFTY53)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (GYFTA)
GYFTZA53-14~18Xn Optic Cable Product Application
buried, directly buried, rodent-proof areas and places with high flame retardant requirements.

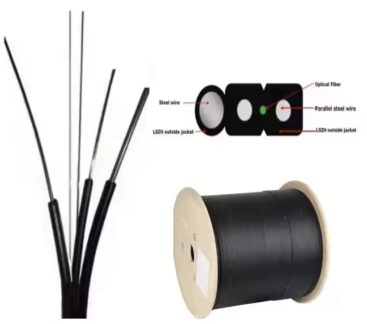

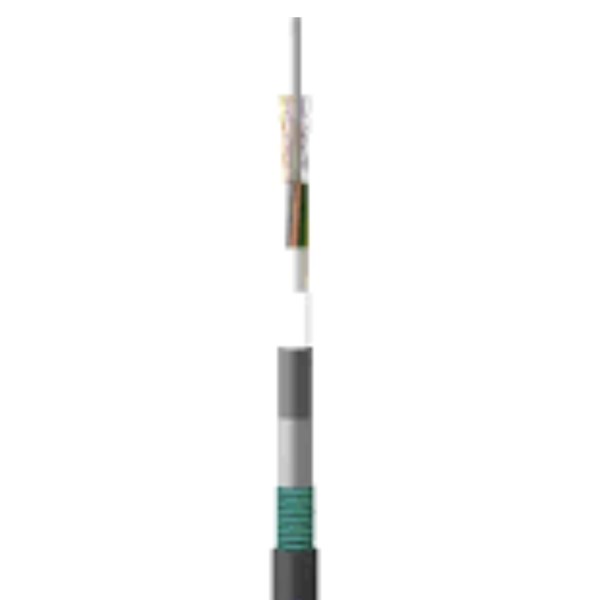

GYFTZA53-14~18Xn Optic Cable Product Structure
